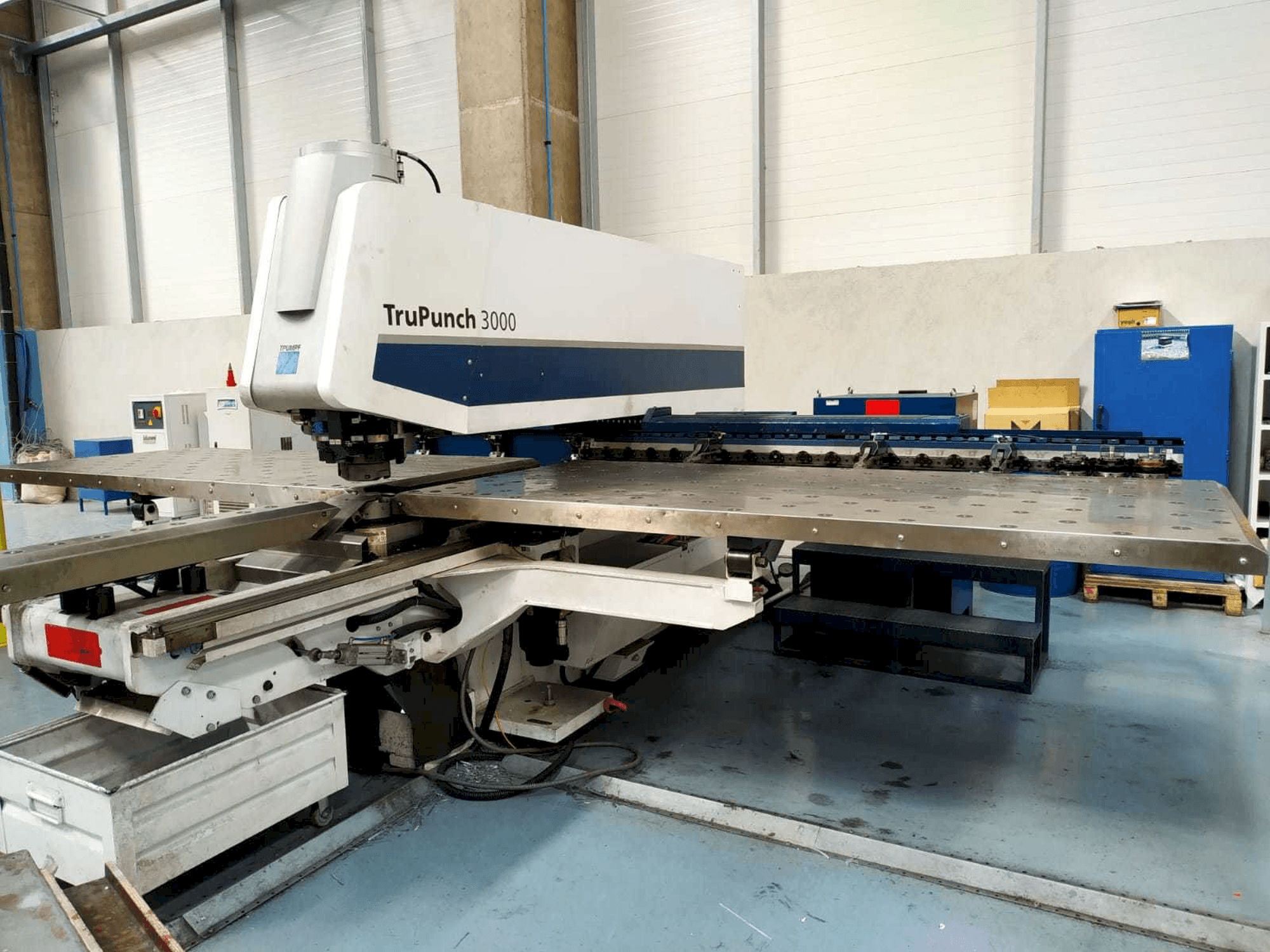

Front view of Trumpf TruPunch 3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 3000

Photo Gallery

TRUMPF - TruPunch 3000TR-PUN-TRU-2014-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Punching Machine - Trumpf TruPunch 3000

Show in original language

This Trumpf TruPunch 3000 Punching Machine was made in the year 2014. It counts with approximately 11300 production hours since then. It is operated through a BOSCH MTX CMP70 control unit. This machine includes a punching force of 180 kN. During the past, it has mainly worked with material up to 6.4 mm of thickness. The Machine comes with all tools.

Overview

brand: TRUMPF
year: 2014
MODEL: TruPunch 3000
production hours: 11300
application type: Punching
Location: Turkey
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF TruPunch 3000

General Data

Measurements width: 6500 mm
Measurements depth: 6203 mm
Measurements height: 2252 mm

Control Unit

Model: MTX CMP70 PC Windows XP
Brand: BOSCH

Main drive

Punching force: 180 kN

Additional Equipment

- Machine comes with all tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Metal sheet length 2500 mm
- - Metal sheet width 1250 mm
- - Maximum standard steel thickness 6. 4 mm
- - Maximum drilling diameter 76. 2 mm
- - Number of strokes per minute 1000
- - Hard disk 2gb, screen 17 ", dvd and usb
Qualitative Machine Benefits:
- - Automation system sheetmaster
- - Multitool
- - Multishear
- - Multibend
- - Softpunch
- - Disc opening

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
