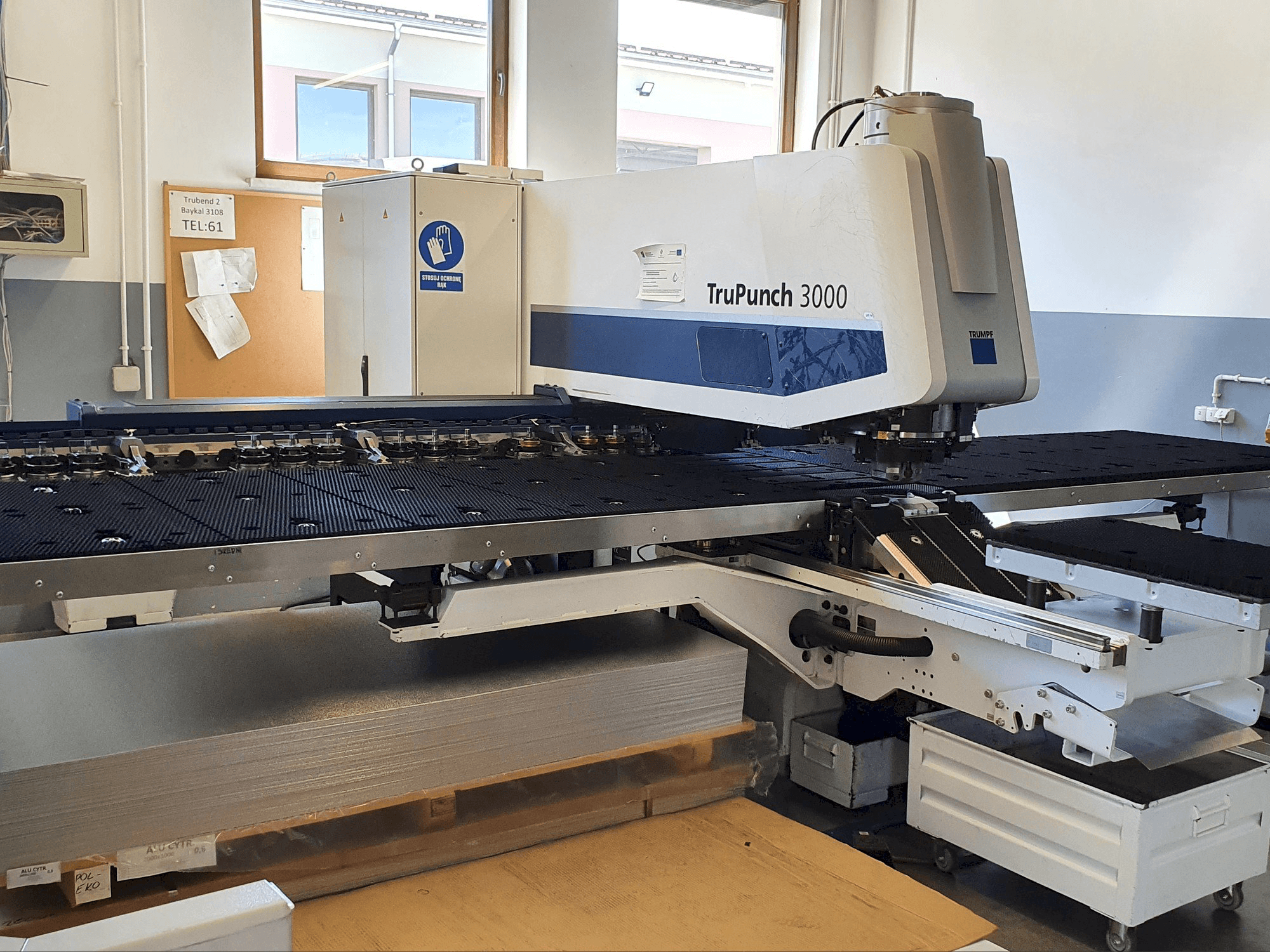

Front view of Trumpf TruPunch 3000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruPunch 3000

Photo Gallery

TRUMPF - TruPunch 3000PL-PUN-TRU-2014-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf TruPunch 3000 | Punching Machine For Sale

Show in original language

This Trumpf TruPunch 3000 Punching Machine was made in the year 2014. It counts with approximately 15300 production hours since then. It is operated through a BOSCH MTX CMP70 control unit. This machine includes a punching force of 180 kN. During the past, it has mainly worked with material up to 6.4 mm of thickness. It presents very good conditions, it had been serviced by Trumpf.

Overview

brand: TRUMPF
year: 2014
MODEL: TruPunch 3000
production hours: 15300
application type: Punching
Location: Poland
machine type: CNC Punch Press
control unit brand: BOSCH

Technical Information - TRUMPF TruPunch 3000

Control Unit

Model: MTX CMP70
Brand: BOSCH

Main drive

Punching force: 180 kN

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm

Table

Table load: 160 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Perfect conditions
Always servicing by trumpf poland

Technical Machine Benefits

Maximum speeds: x axis 90 m / min, y axis 60 m / min
X and y axes simultaneously 108m / min
Number of strokes with a 1 mm stroke when punching 1000 1 / min
Number of strokes with a 25mm stroke when punching 460 1 / min
17 tool stations
3 clamps for metal sheet fastening
360 ° rotation of all tools (full rotation)
Tool change time single tool 3. 1 sec, multitool 0. 5 s
Max cutting diameter 76. 2mm for all tools
Max forming height 25mm

Machine History

Material thickness

6. 4 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
