➤ Trumpf TruPunch 3000 Punching Machine - Used

Show in original language

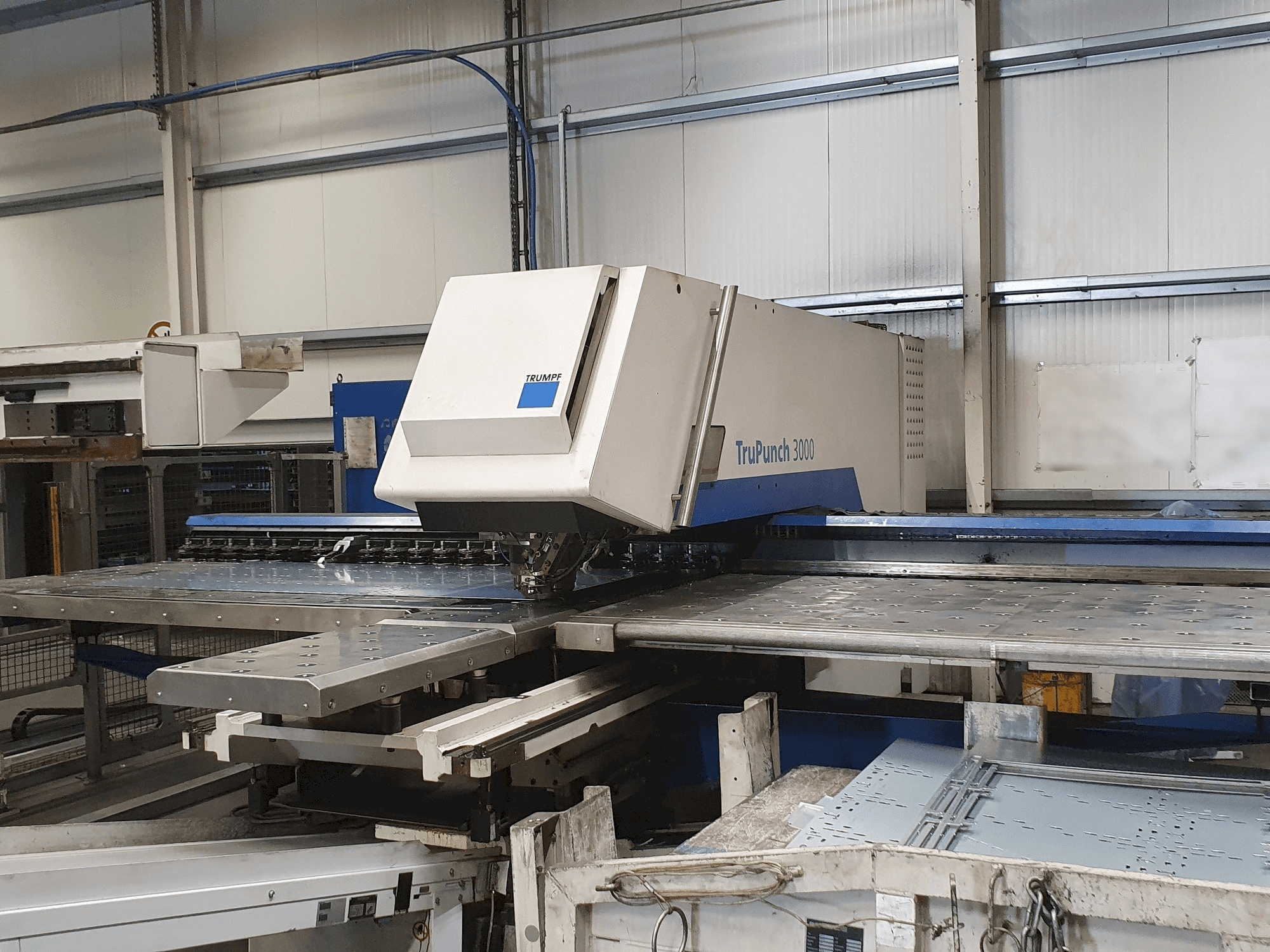

This Trumpf TruPunch 3000 Punching Machine was built in Germany in the year 2007. It has been working for 60951 hours. It is equipped with a control unit of the same brand. This machine work with a punching force of 180 kN. It can work with a maximum thickness of processed sheet metal 6.4 mm.

Overview

brand: TRUMPF
year: 2007
MODEL: TruPunch 3000
production hours: 60951
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TruPunch 3000

General Data

Measurements width: 5800 mm
Measurements depth: 6500 mm
Measurements height: 2230 mm

Control Unit

Brand: TRUMPF

Main drive

Punching force: 180 kn

Table

Outer length: 2500 mm
Outer width: 1250 mm
Table load: 150 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Number of strokes per min 900 1/min.
- - Max. Marking speed 2200 1/min.
- - Number of tool seats 19 pcs.
- - Tool change time 0. 5 sec.
- - Max thickness of processed sheet metal 6. 4 mm.
- - Active functions: sheet deformation sensor, tapping, marking, multibend, multishear
- - Tank heating with hydraulic oil
- - Softpunch functions
- - Stripline-programmable manually
- - Foundation are on damping elements

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
