TRUMPF - TruPunch 1000PL-PUN-TRU-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

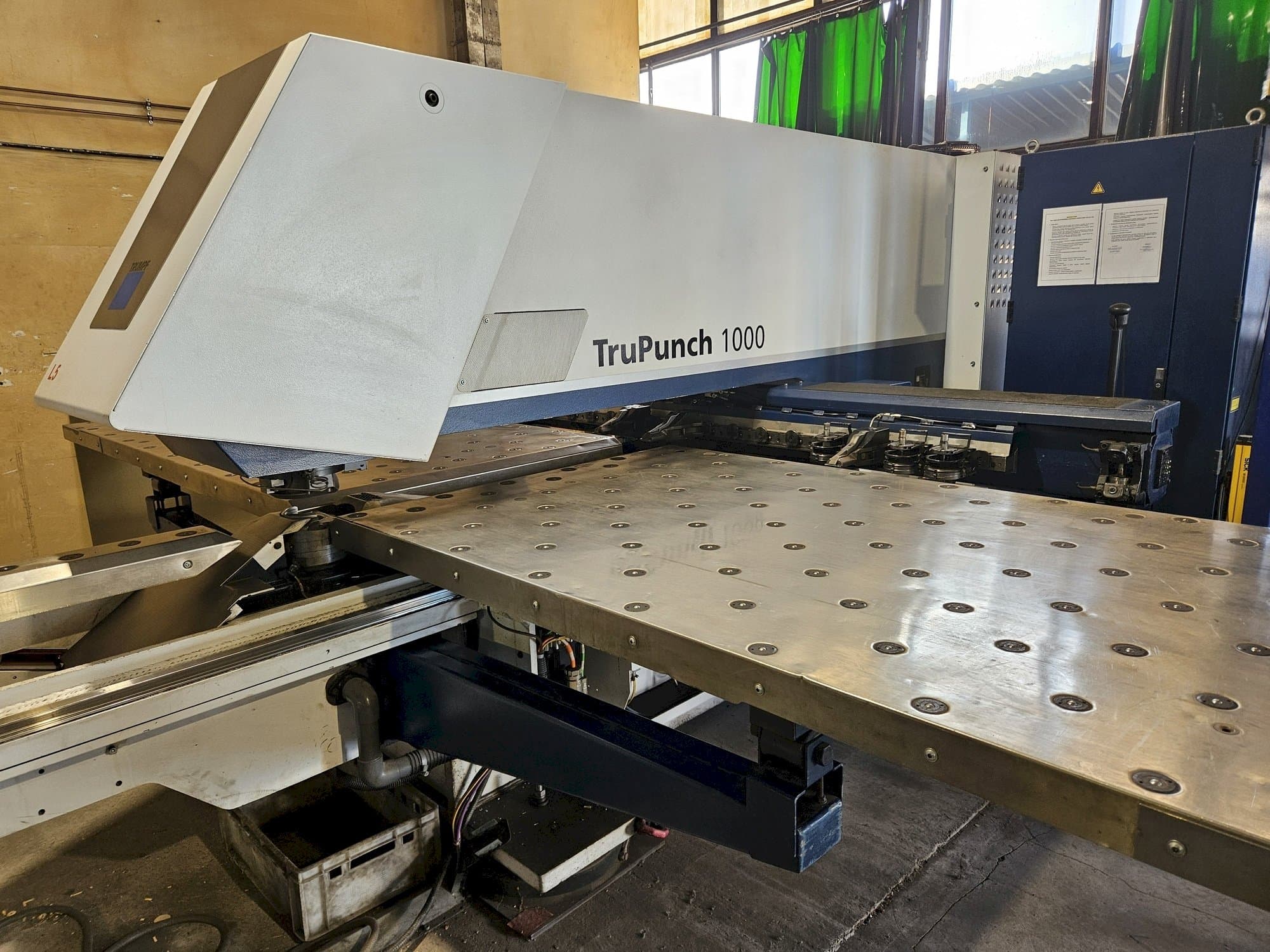

Trumpf TruPunch 1000 Punching machine

Show in original language

This Trumpf TruPunch 1000 Punching machine was manufactured in the year 2013 in Germany and has 16248 production hours. It is equipped with a Trumpf BOSCH PNC-P control unit. The machine has a punching force of 165 kN.

Overview

brand: TRUMPF
year: 2013
MODEL: TruPunch 1000
production hours: 16248
application type: Punching
Location: Poland
machine type: CNC Punch Press
availability: Sold
control unit brand: TRUMPF

Technical Information - TRUMPF TruPunch 1000

General Data

Measurements width: 6550 mm
Measurements depth: 7144 mm
Measurements height: 2155 mm

Control Unit

Model: PNC-P
Brand: TRUMPF

Main drive

Punching force: 165 kN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1300 mm

Media

Main electronic connection: 400 V 50 Hz

Additional Equipment

- Full service history and full documentation available

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max sheet thickness: 6. 4 mm
- - Number of tool slots: 15 pcs
- - Max. Material weight: 150 kg
- - Tool magazine with 15 tool stations
- - Maintenance-free servo drives
- - Repositioning via programmable downholder
- - Ball table
- - Part removal
- - Automatic switch-off
- - Chip container
Qualitative Machine Benefits:
- - Included in the offer: 3 tool cassettes with punches dia. 3 , dia. 5, 25x5 - all these tools with peelers, dies + punch and die mounting
- - The machine is in very good working condition, ready for tests. Full documentation available. Full service history. New pump and line amplifier installed in 2020
- - Electro-hydraulic punching head
- - Rotary, single-station tool holder
- - Programmable downholder
- - Tool length compensation
- - Tool lubrication
- - Chip evacuation through the table
- - Forming
- - Extended machine programming

Extra information

- offline software licence is not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
