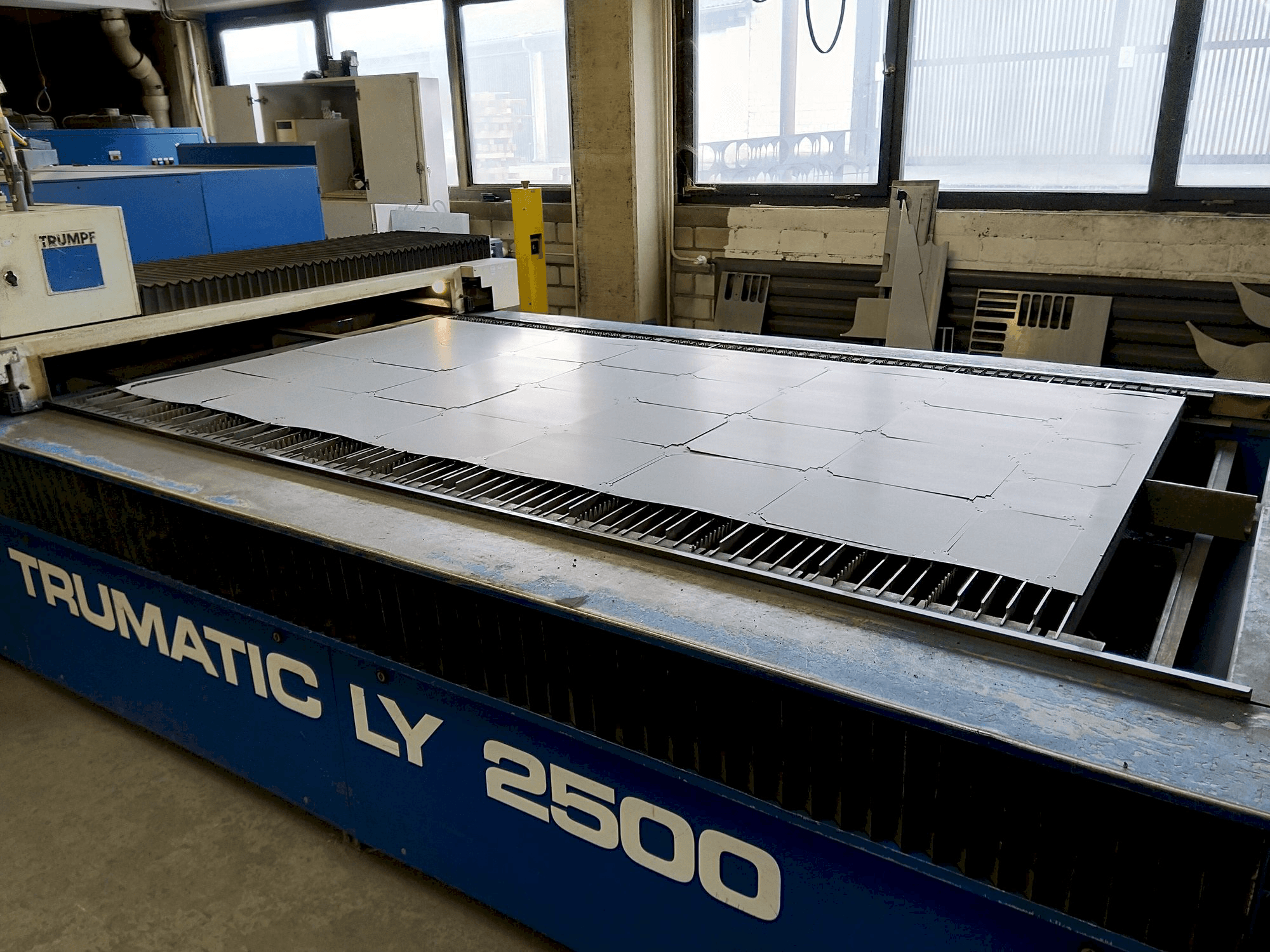

Front view of Trumpf Trumatic LY2500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic LY2500

Photo Gallery

TRUMPF - Trumatic LY2500DE-LAS-TRU-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic LY2500 Laser Cutting Machine

Show in original language

This Trumpf Trumatic LY2500 Laser Cutting Machine was built in 1997 in Germany and has been operative for 35436 hours. Equipped with a Trumpf Trumagraph CC 220 S Control unit, this machine is capable of cutting steel up to 10 mm of thickness.

Overview

brand: TRUMPF
year: 1997
MODEL: Trumatic LY2500
production hours: 35436
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic LY2500

General Data

Measurements width: 7000 mm
Measurements depth: 4300 mm
Measurements height: 1800 mm
Machine weight: 5000 kg

Control Unit

Model: Trumagraph CC 220 S
Brand: TRUMPF

Movement

Z-AXIS Movement: 100 mm

Workpiece

Workpiece weight: 250 kg

Table

Outer length: 2500 mm
Outer width: 1250 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 3 mm
Aluminum: 3 mm

Media

Power consumption: 45 kW

Additional Information

Machine Benefits

Technical Machine Benefits

Max concurrent speed 84 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
