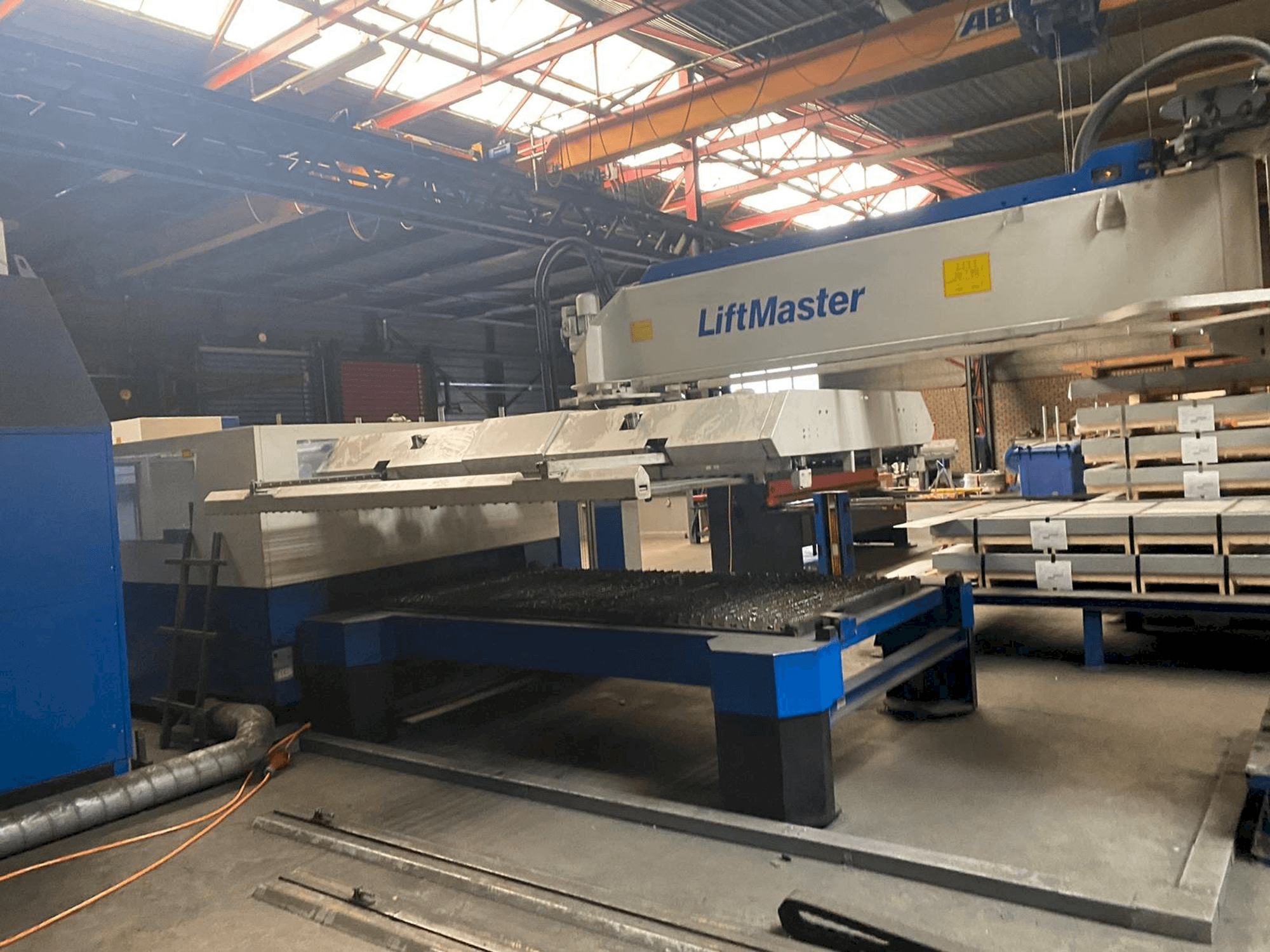

Front view of Trumpf Trumatic L3050 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L3050

Photo Gallery

TRUMPF - Trumatic L3050NL-LAS-TRU-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

This Trumpf Trumatic L3050 Laser Cutting Machine was built in Switzerland in 2006. It is equipped with a SIEMENS SINUMERIK 840D control unit. The laser has been on for 73376 hours, and the beam 44768 hours. This machine stands out due to its laser power 6 kW and a Liftmaster is included. STOPA is not included in the offer but can be purchased separately.

Overview

brand: TRUMPF
year: 2006
MODEL: Trumatic L3050
production hours: 73376
application type: Cutting
Location: Netherlands
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L3050

General Data

Measurements width: 11100 MM
Measurements depth: 4600 MM
Measurements height: 2400 MM
Machine weight: 12000 KG

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Laserpower: 6kW
Laser type: CO2
Laser brand: TLF 6000TM

Workpiece

Workpiece x: 3000 MM
Workpiece y: 1500 MM
Workpiece z: 100 MM
Workpiece weight: 900 KG

Max Material thickness

Steel: 25 MM
Stainless steel: 20 MM
Aluminum: 10 MM

Machine specific data

Number of cutting heads: 2
Size of cutting head 1: 7.5''
Size of cutting head 2: 10''

Media

Main electronic connection: 400 V / 50 HZ
Power consumption: 105 KVA

Additional Equipment

- Liftmaster

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
