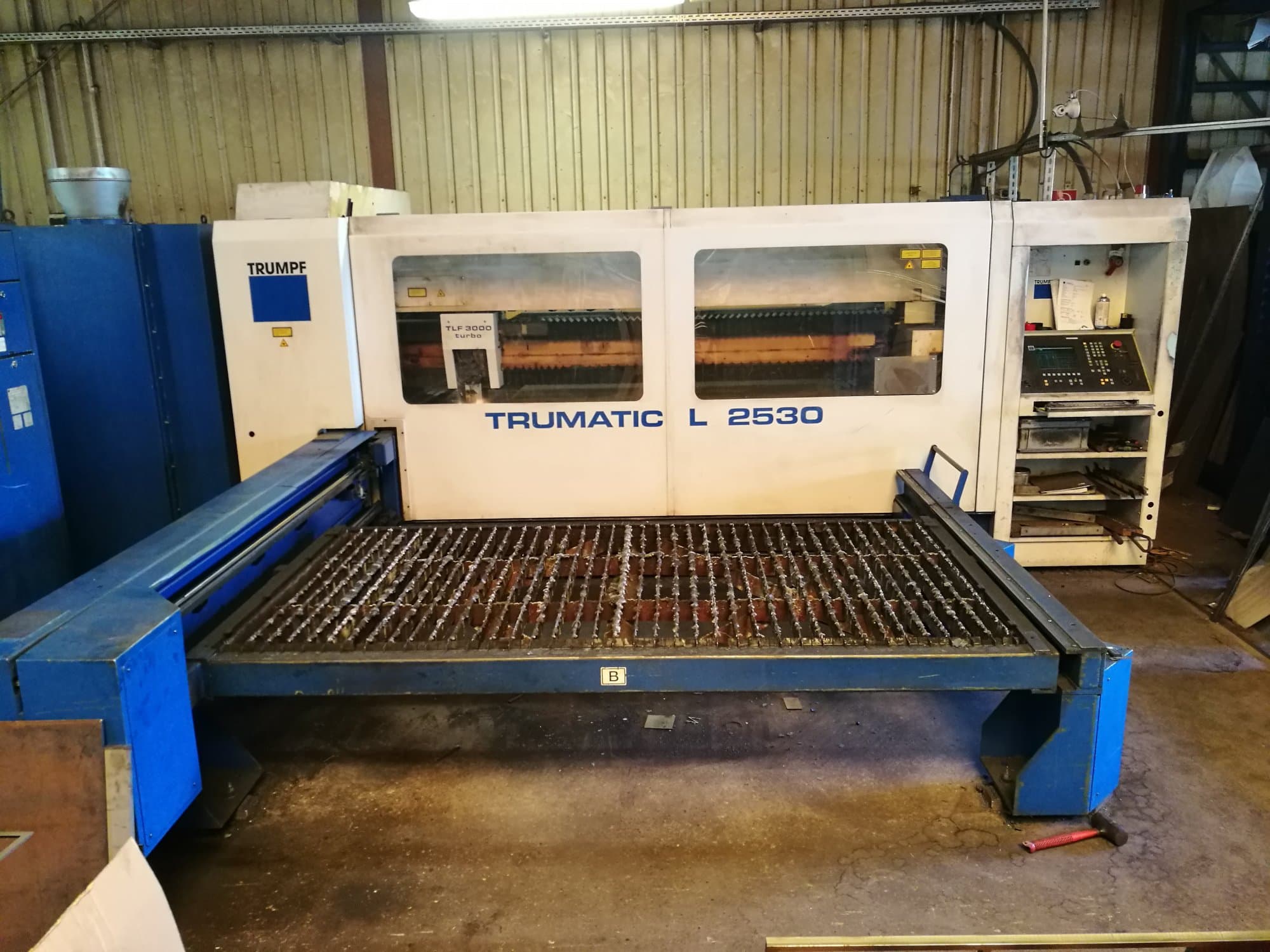

Front view of Trumpf Trumatic L2530 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic L2530

Photo Gallery

TRUMPF - Trumatic L2530DE-LAS-TRU-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf Trumatic L2530 Laser Cutting Machine

Show in original language

This Trumpf Trumatic L2530 Laser Cutting Machine from Germany was manufactured in 1998 and counts a production time of 68420 laser hours. Equipped with a SIEMENS SINUMERIK 840D Control unit, this machine got a full retrofit in 2010. Additionally, a new triode (2016), new mirrors and a new ventilator (2017) were installed. During the past, this 3 kW laser cutter has worked in one shift operation and processed mainly steel sheets of 1.5 - 8 mm of thickness.

Overview

brand: TRUMPF
year: 1998
MODEL: Trumatic L2530
production hours: 68420
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF Trumatic L2530

General Data

Measurements width: 6500 mm
Measurements depth: 3500-5400 mm
Measurements height: 2000 mm
Machine weight: 6500 kg

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Plasma brand: Trumpf
Plasmapower: 3 kW
Laser type: CO2

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 115 mm

Workpiece

Workpiece weight: 500 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V
Power consumption: 75 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- TruTops Laser Software
- TruTops Calculate
- 2x License (for 2 Computers)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
