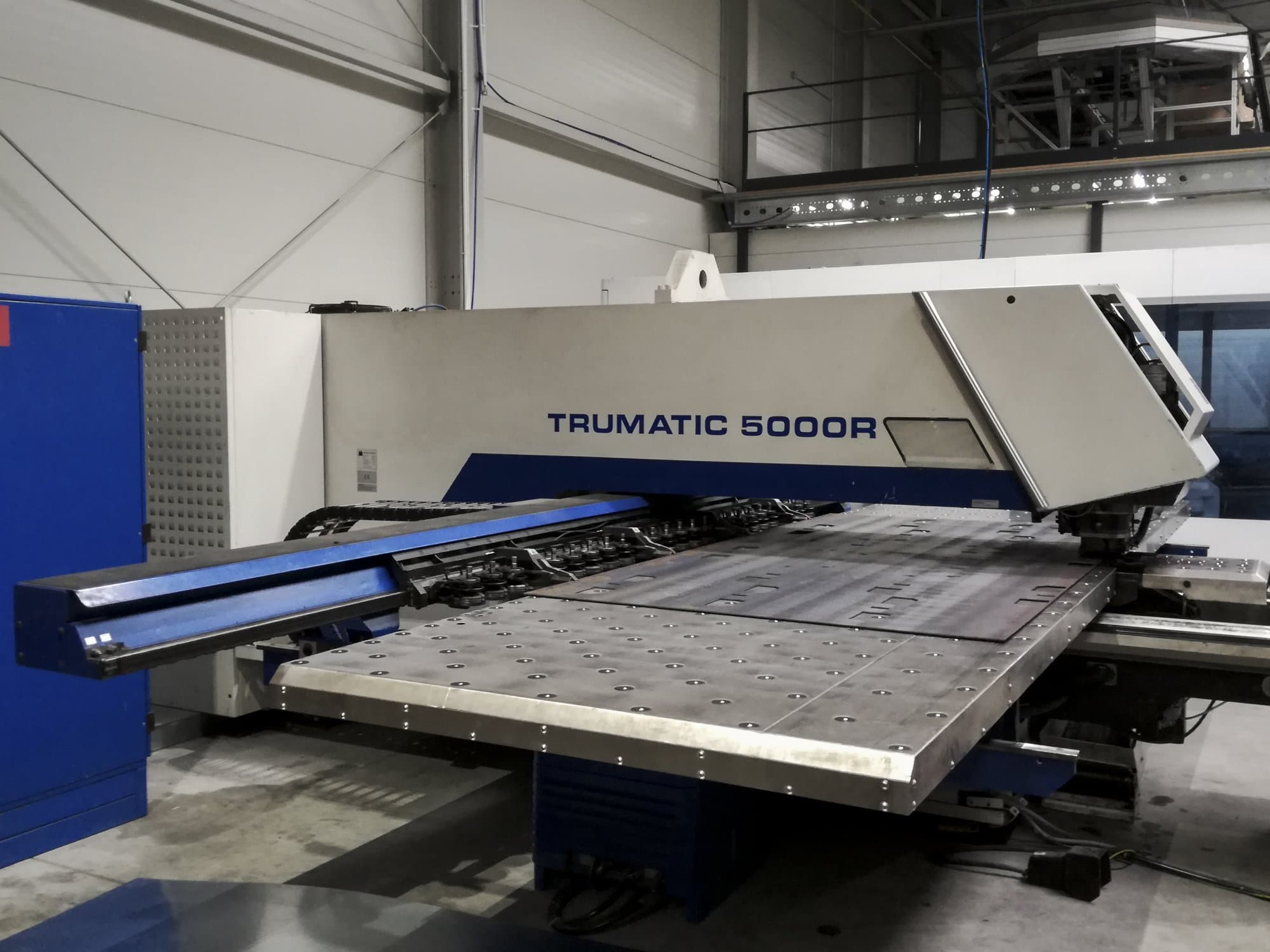

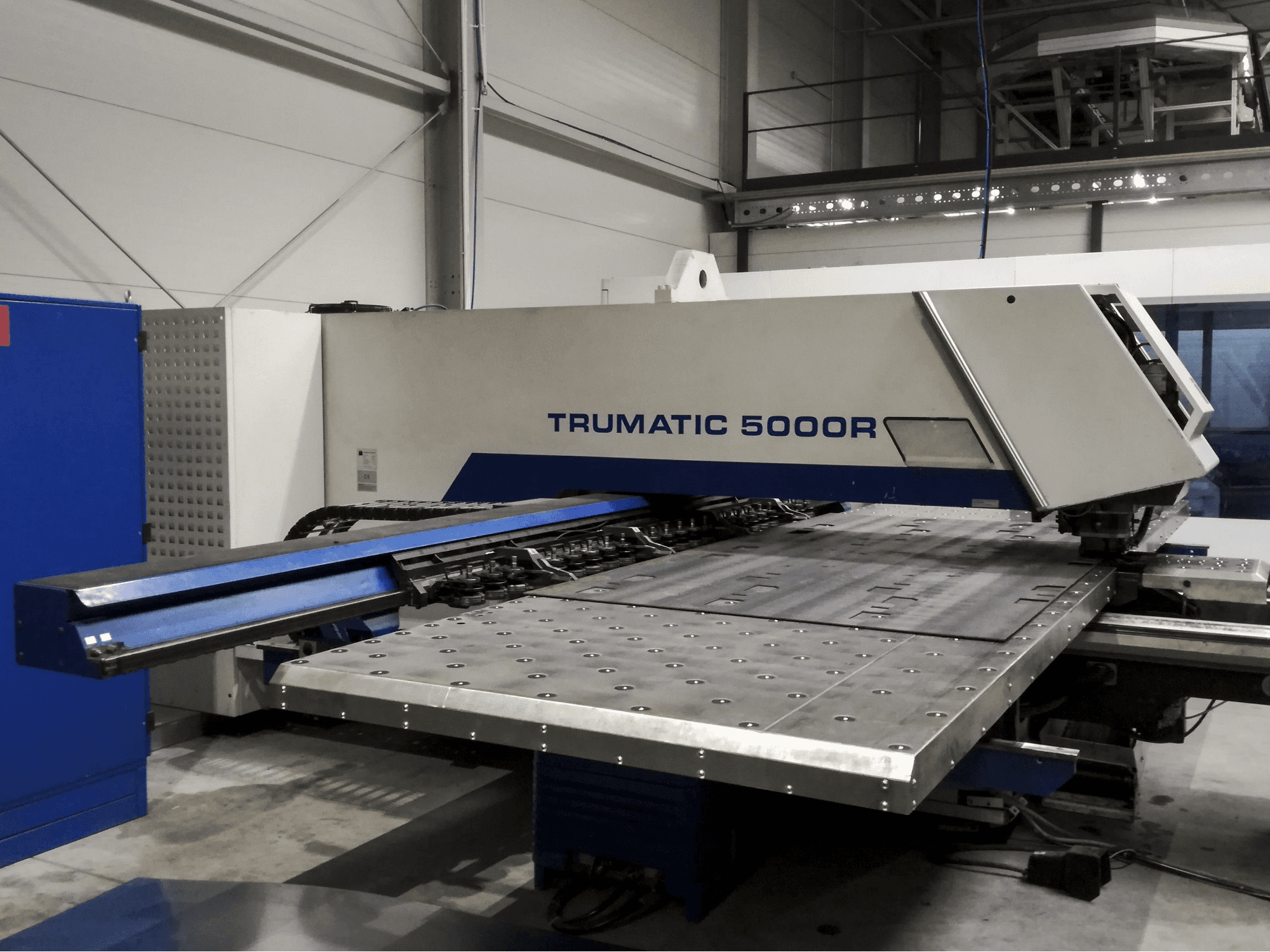

Left side view 1 of Trumpf Trumatic 5000 R machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 5000 R

Photo Gallery

TRUMPF - Trumatic 5000 RPL-PUN-TRU-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf Trumatic 5000 R Turret Punching Machine

Show in original language

This Trumpf Trumatic 5000 R Turret Punching Machine was manufactured in Germany in 2001 and has a record of only 3865 production hours ever since. Operated through a Trumpf Control unit, the equipment stands in excellent working conditions. Upon request, an additional set of approximately 50 tools can be included with the machine.

Overview

brand: TRUMPF
year: 2001
MODEL: Trumatic 5000 R
production hours: 3865
application type: Punching
Location: Poland
machine type: Punch-Laser Combination
control unit brand: TRUMPF

Technical Information - TRUMPF Trumatic 5000 R

General Data

Measurements width: 7500 mm
Measurements depth: 7500 mm
Measurements height: 2500 mm
Machine weight: 17500 kg

Control Unit

Brand: TRUMPF

Main drive

Punching force: 220 kN
Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm

Max Material thickness

Steel: 6 mm

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 29 kVA
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
