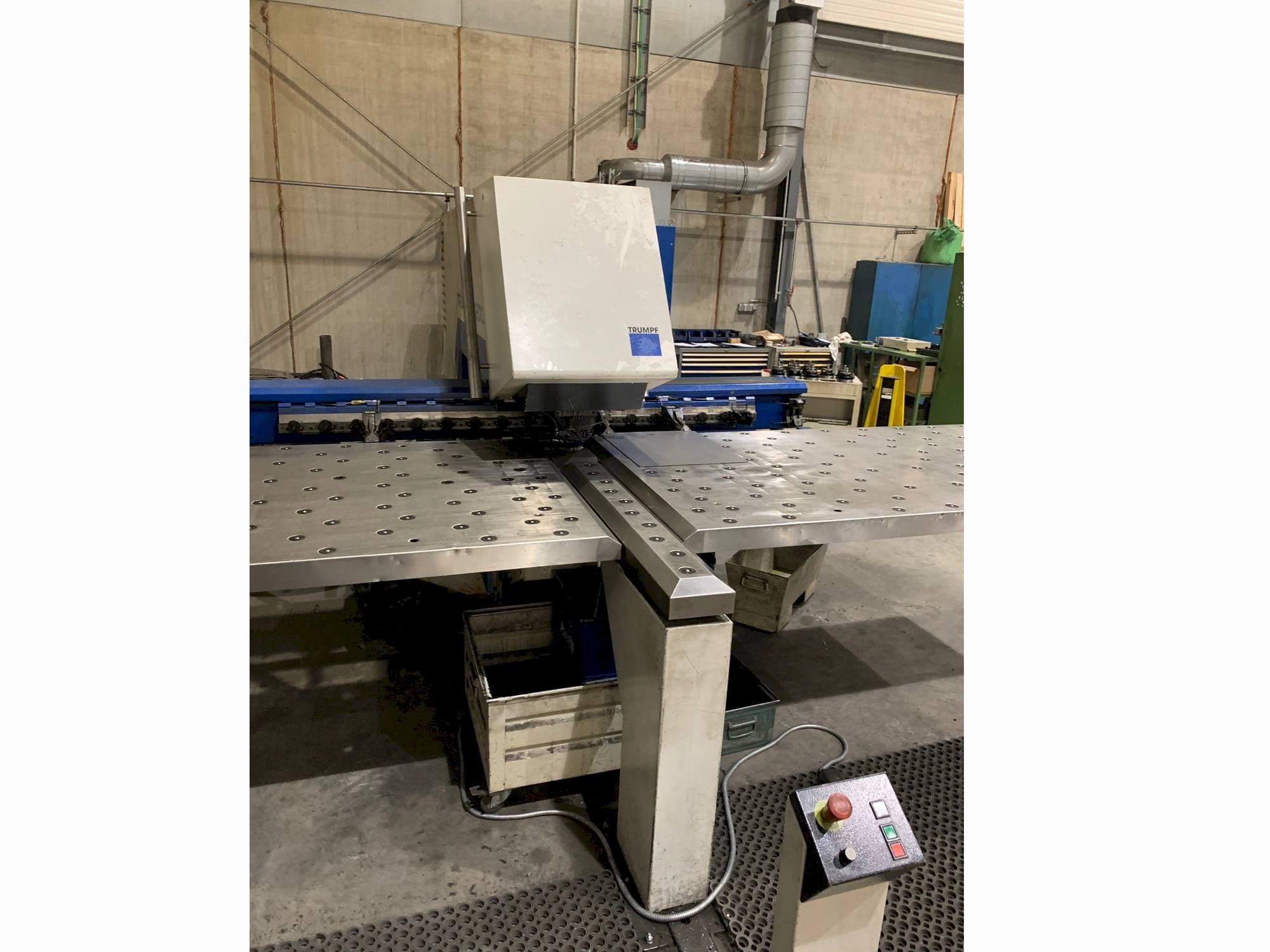

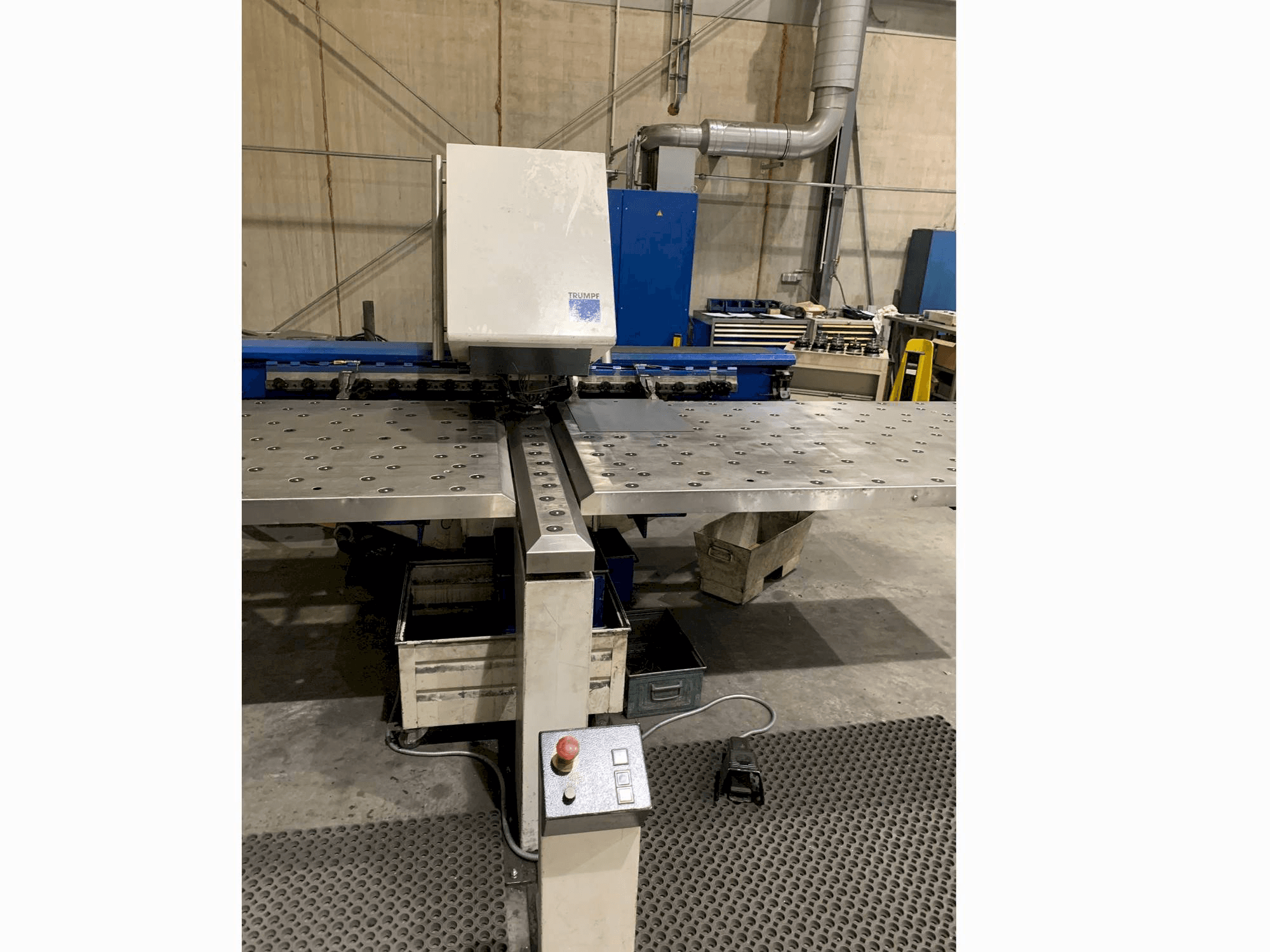

This Trumpf Trumatic 200 Punching Machine was made in Germany in the year 2003. It counts with 19247 production hours since then. It is operated through a TRUMPF TRUMAGRAPH CNC control unit. This machine includes a punching force of 165 kN. During the past, it has mainly worked with steel up to 6.4 mm of thickness. Hydraulic tubes and pump recently replaced.
Overview
- brand: TRUMPF
- year: 2003
- MODEL: Trumatic 200
- production hours: 19247
- application type: Punching
- Location: Germany
- machine type: CNC Punch Press
- control unit brand: TRUMPF
Technical Information - TRUMPF Trumatic 200
Control Unit
- Control Brand: TRUMPF
- Control Model: TRUMAGRAPH
Dimensions
- Machine Weight: 8000 kg
- Table Length: 1280 mm
- Table Load: 150 kg
- Table Width: 2070 mm
Movement
- X-axis Travel: 2070 mm
- Y-axis Travel: 1280 mm
Technical Specification
- Punching Force: 165 Kn
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Hydraulic tubes and pump recently replaced
Technical Machine Benefits
- Max. Punching thickness: 6. 4 mm
- Max diameter punching: 76. 2 mm
- X speed: 60 m / min
- Y speed: 40 m / min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
