➤ Used TRUMPF TrumaBend V85 Press For Sale | gindumac.com

Show in original language

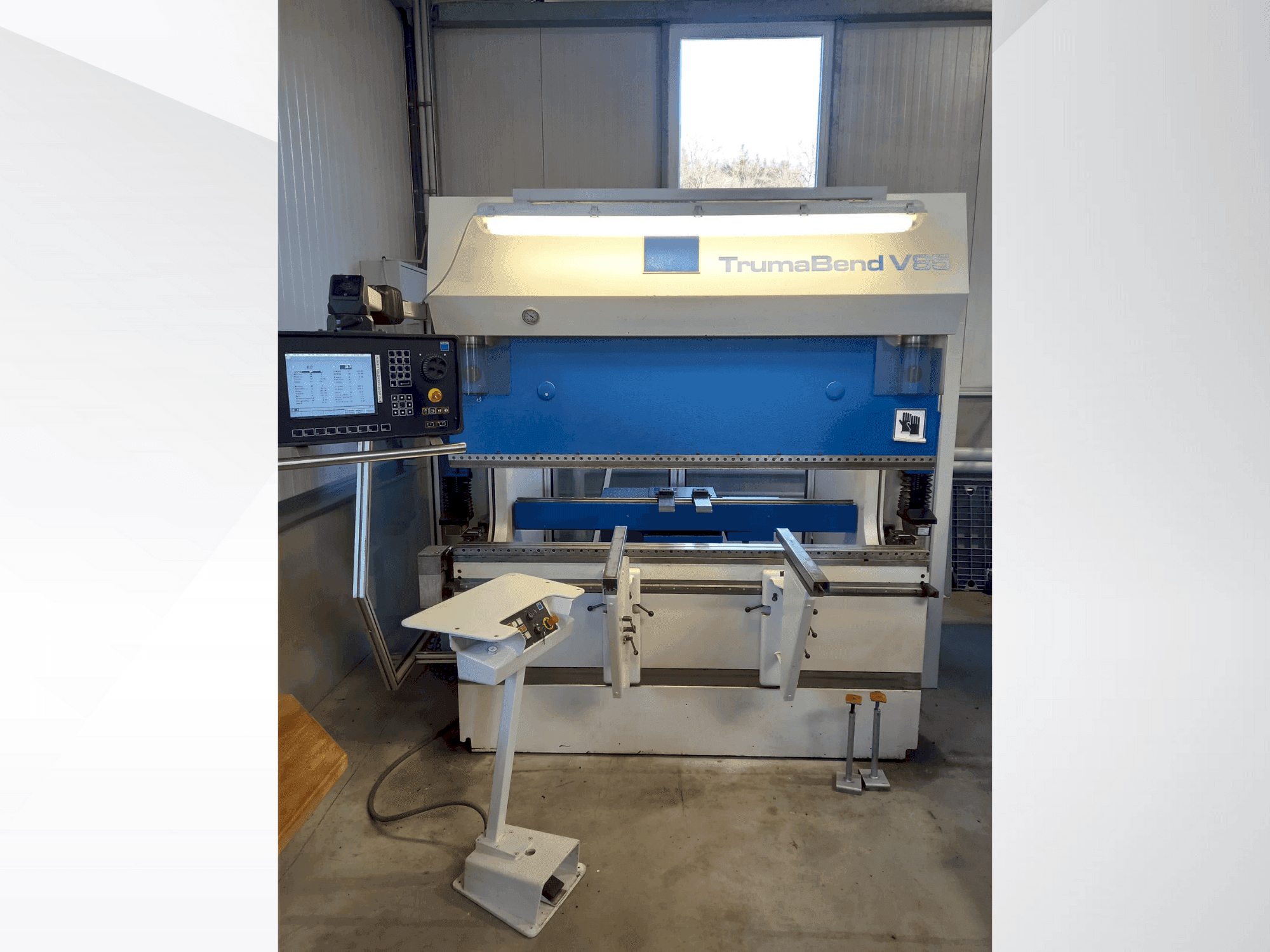

This 5-axis TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features an electro-hydraulic ram drive, CNC backgauge system, and a modern protective cover. The machine includes a 4-axis back gauge system and both hydraulic upper and lower tool clamping. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85 machine we have for sale. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 2001
MODEL: TrumaBend V85
production hours: 0
application type: Bending
Location: Austria
machine type: Press Brake

Technical Information - TRUMPF TrumaBend V85

Main drive

Number of axis: 5

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Top drive concept in two-cylinder design y1/y2
- - Electro-hydraulic ram drive with proportional valve technology
- - Ram travel measuring system with spring deflection compensation via glass scales
- - Modern block hydraulics
- - Cnc backgauge system
- - Safe finger adjustment from the front
- - Self-centring, manual, hardened upper tool holder for vertical tool change
- - Hardened, manual lower tool holder
- - Programme-controlled lower tool displacement (i-axis) for 2 positions
- - Modern protective cover
Qualitative Machine Benefits:
- - Oil cooler
- - Back gauge system 4 axes (x, r, z1, z2)
- - Hydraulic and hardened upper tool clamping (wila system)
- - Hydraulic lower tool clamping (wila system)
- - Cnc crowning
- - Bendguard safety device
- - 2 pcs. Support brackets
- - Network

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
