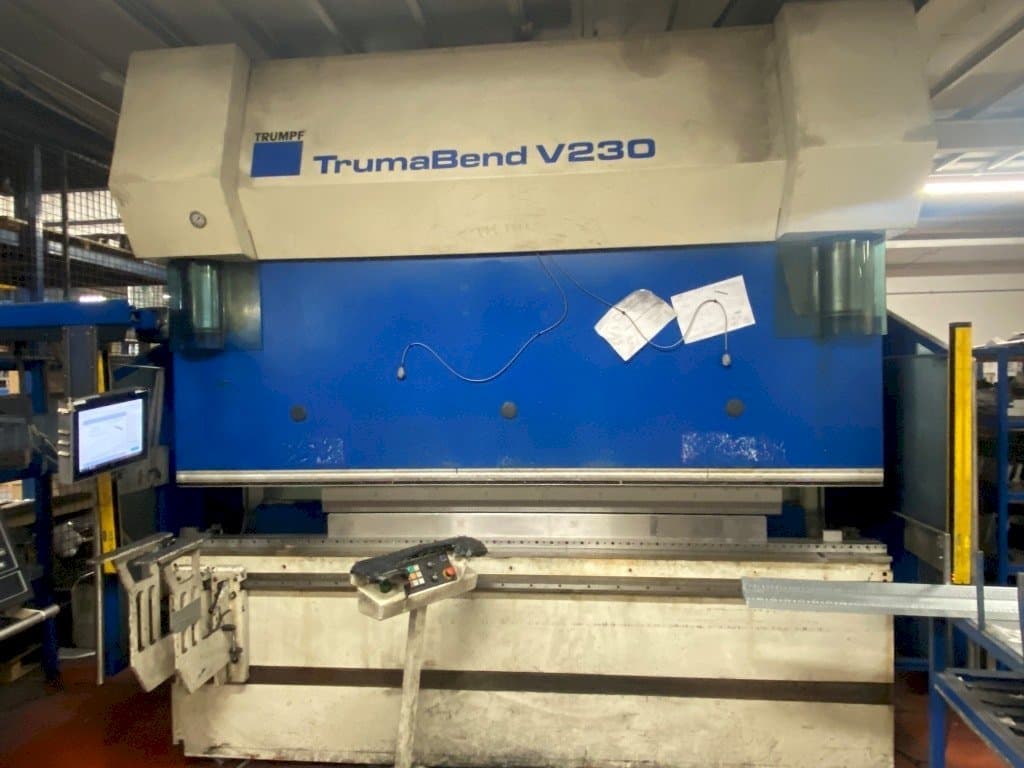

Front view of Trumpf TrumaBend V230 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TrumaBend V230

Photo Gallery

TRUMPF - TrumaBend V230IE-BEN-TRU-2003-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TrumaBend V230 Bending Machine

Show in original language

This Trumpf TrumaBend V230 Bending Machine from 2003 was built in Germany. Operated through a DELEM DA69 control unit. This 7 axis machine can perform with a pressing force of 2300 kN, bending length of 3060 mm.

Overview

brand: TRUMPF
year: 2003
MODEL: TrumaBend V230
production hours: 0
application type: Bending
Location: Ireland
machine type: Press Brake
control unit brand: DELEM

Technical Information - TRUMPF TrumaBend V230

General Data

Measurements width: 3660 mm
Measurements depth: 2310 mm
Measurements height: 3095 mm
Machine weight: 18210 kg

Control Unit

Model: DA69
CNC main language: English
CNC language customizable: Yes
Brand: DELEM

Main drive

Pressing force: 2300 kn
Bending length: 3060 mm
Number of axis: 7

Workpiece

Workpiece x: 600 mm
Workpiece y: 3060 mm

Media

Main electronic connection: 400 V
Power consumption: 27,2 kva

Additional Information

Machine history

Material type: Mild steel
material thickness: 2 mm
End product: Enclosures

Machine Benefits

Technical Machine Benefits:
- - 7 axis machine y1,y2,x,delta x,z1,z2,r
- - 5 axis back gauge x,delta x,z1,z2,r
- - Cnc crowning
- - Safety guards
- - Distance between side frames: 260mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
