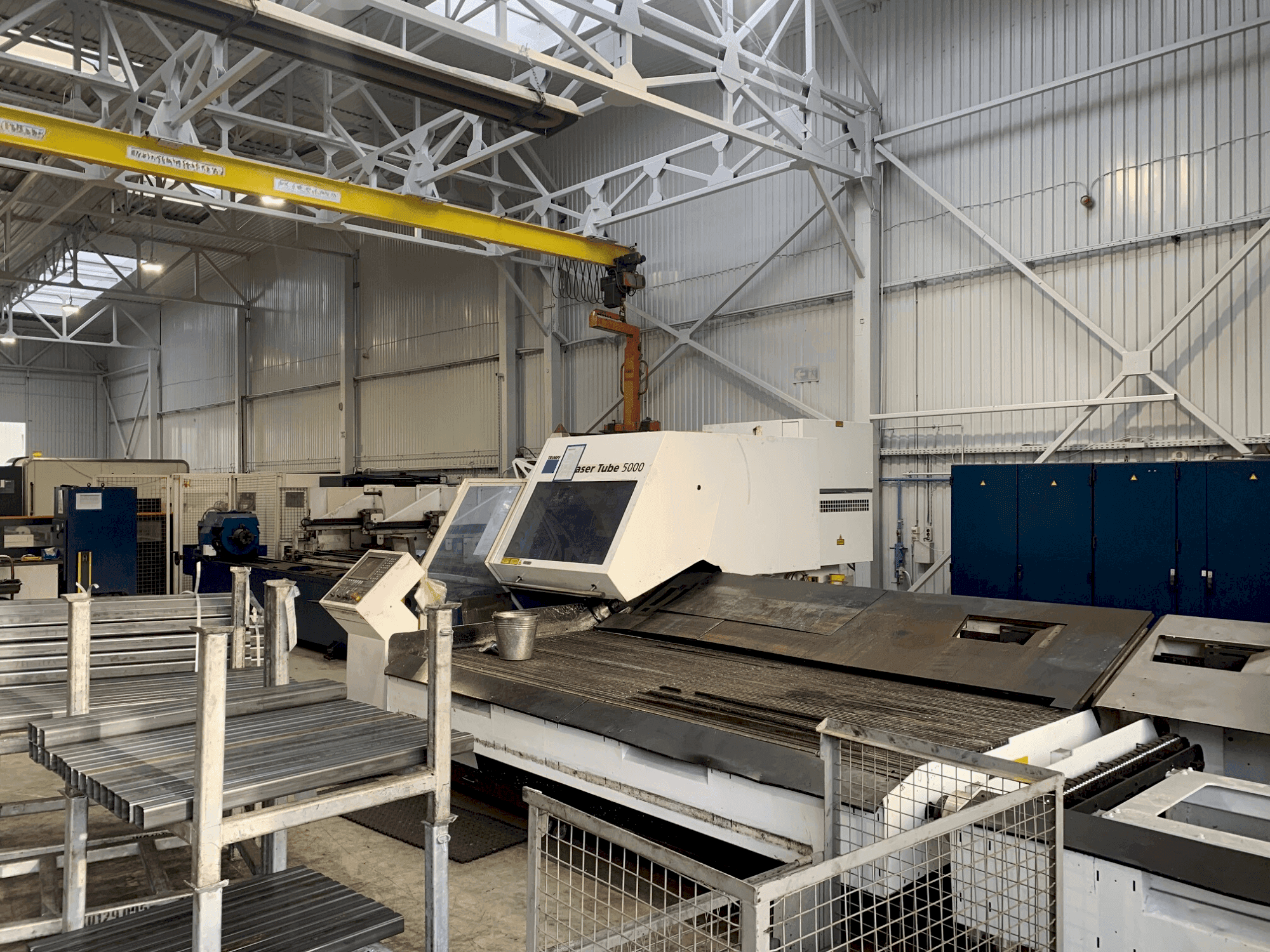

Front view of TRUMPF TruLaser Tube 5000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser Tube 5000

Photo Gallery

TRUMPF - TruLaser Tube 5000HU-LAS-TRU-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
TRUMPF TruLaser Tube 5000 (2010) Laser cutting machine

Show in original language

This TRUMPF TruLaser Tube 5000 Laser cutting machine was manufactured in 2010 in Germany and has 16681 laser hours (63477 Operating hours). Dispose of a Trutops (version: 17.0.0.161) used Software. This machine has these laser gas consumption (Purity): He (4.6): 13 l/h, CO2 (4.5): 1 l/h, N2 (5.0): 6 l/h.

Overview

brand: TRUMPF
year: 2010
MODEL: TruLaser Tube 5000
production hours: 16681
application type: Cutting
Location: Hungary
machine type: Tube Cutting Machine

Technical Information - TRUMPF TruLaser Tube 5000

General Data

Measurements width: 15800 mm
Measurements depth: 8100 mm
Measurements height: 2400 mm
Machine weight: 17500 kg

Main drive

Laserpower: 3200 KW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum machinable tube length: 6450mm
- - Minimum raw material length for automatic feeding: 3000mm
- - Minimum remaining tube length: 141mm
- - Maximum profile that can be cut; tube: dia 20-150 mm
- - Closed section: 95x95 mm
- - Max. Sheet thickness (carbon steel): 6 mm (safely 5mm in current condition)
- - Used software: trutops (version: 17. 0. 0. 161)
- - Tubedesign (version: 6. 0. 0. 1560 13 nov 2015)
- - Laser gas consumption (purity): he (4. 6): 13 l/h // co2 (4. 5): 1 l/h // n2 (5. 0): 6 l/h
- - Operating hours: 63477 // laser hours: 16681

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
