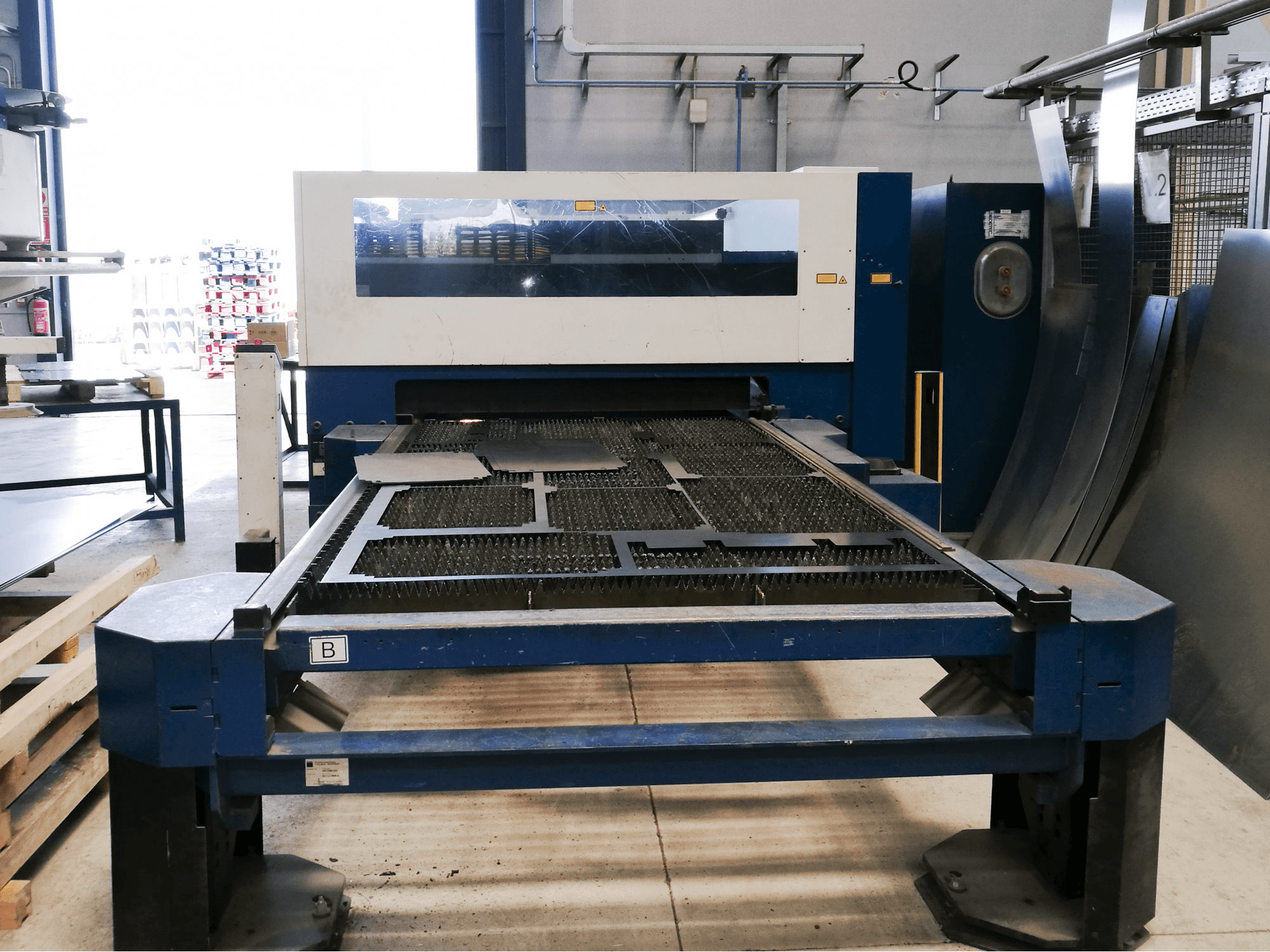

Front view of Trumpf TruLaser 3530 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 3530

Photo Gallery

TRUMPF - TruLaser 3530ES-LAS-TRU-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf TruLaser 3530 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 3530 Laser Cutting Machine was manufactured in the year 2008 and has a production record of 33567 working hours. This machine is equipped with a SIEMENS SINUMERIK 840D Control unit (CNC Trumpf release), which operates a Truflow 3200 Co2 Laser that counts 18065 working hours. This equipment provides a reliable quality finish and is in excellent condition: it has a standing maintenance contract with Trumpf, has received a weekly cleaning and only worked with materials below 10 mm thickness. This machine is delivered with a LoadMaster sheet loader as additional equipment.

Overview

brand: TRUMPF
year: 2008
MODEL: TruLaser 3530
production hours: 33567
application type: Cutting
Location: Spain
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 3530

General Data

Measurements width: 9300 mm
Measurements depth: 4600 mm
Measurements height: 2000 mm
Machine weight: 11500 kg

Control Unit

Model: SINUMERIK 840D
Release: DND Trumpf
Brand: SIEMENS

Main drive

Laserpower: 3.2 kW

Movement

X-AXIS Movement: 3104 mm
Y-AXIS Movement: 1580 mm
Z-AXIS Movement: 114 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 1500 mm
Workpiece weight: 710 kg

Machine specific data

Number of cutting heads: 3
Size of cutting head 1: 3.75"
Size of cutting head 2: 5"
Size of cutting head 3: 7.5"

Media

Main electronic connection: 400 V
Power consumption: 73 kVA
He consumption: 13 l/h
CO2 consumption: 1 l/h
N2 consumption: 6 l/h

Additional Equipment

- LoadMaster Sheet loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
