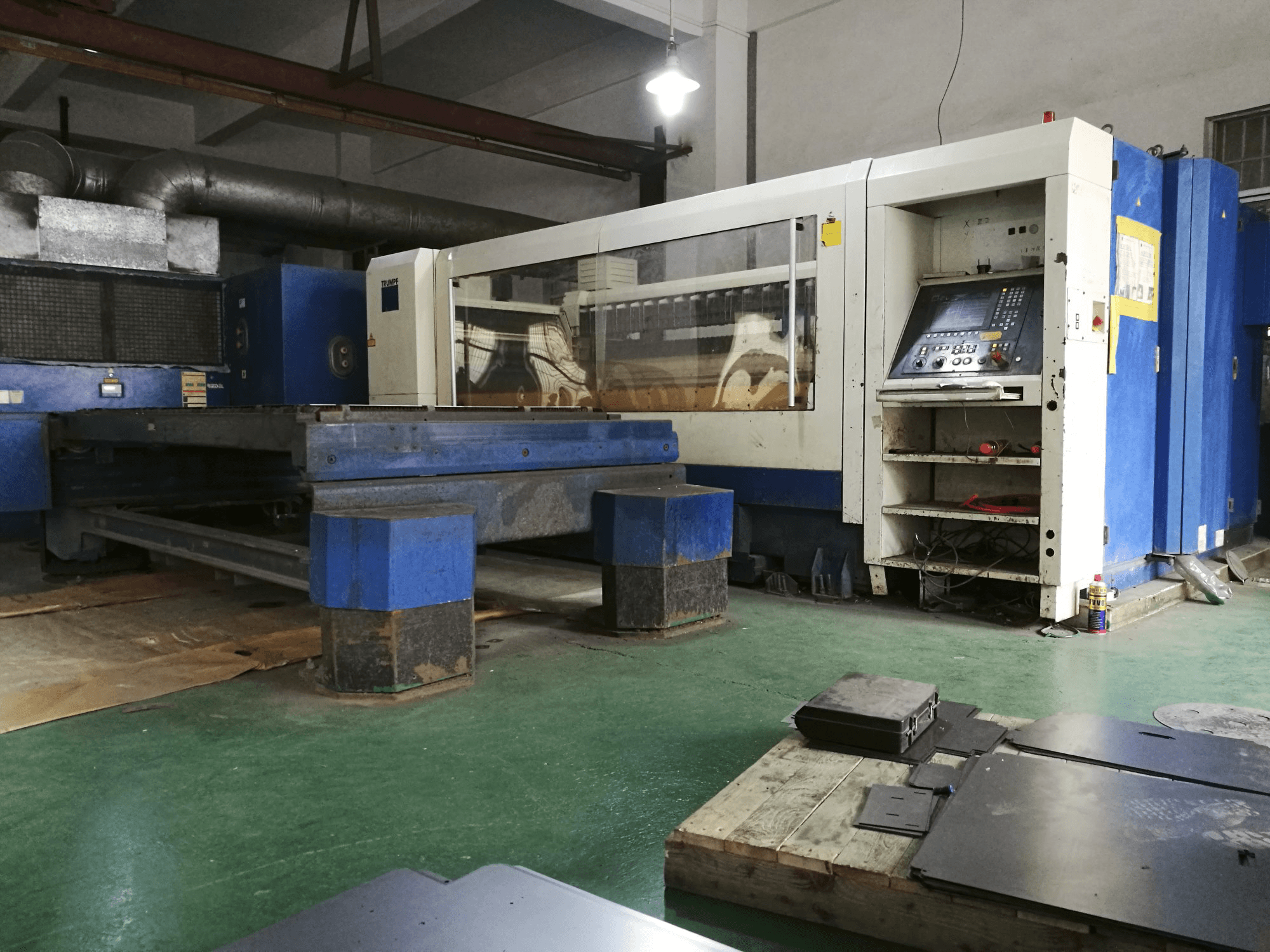

Right view of Trumpf TruLaser 2525 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruLaser 2525

Photo Gallery

TRUMPF - TruLaser 2525CN-LAS-TRU-2008-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used Trumpf TruLaser 2525 Laser Cutting Machine

Show in original language

This Trumpf TruLaser 2525 Laser Cutting Machine was produced in 2008 and has been active for 32850 hours ever since. This compact equipment is operated through a SIEMENS SINUMERIK 840D Control Unit, and is especially reliable for working with thin metal sheets. On top of this, its German-quality laser make the model stand out in the laser cutting field.

Overview

brand: TRUMPF
year: 2008
MODEL: TruLaser 2525
production hours: 32850
application type: Cutting
Location: China
machine type: CO2 Laser Cutting Machine
control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 2525

General Data

Measurements width: 7800 mm
Measurements depth: 6100 mm
Measurements height: 2200 mm
Machine weight: 8450 kg

Control Unit

Model: SINUMERIK 840D
Interface: USB, Ethernet
Brand: SIEMENS

Movement

X-AXIS Movement: 2500 mm
X-AXIS Working Feed: 60 m/min
Y-AXIS Movement: 1250 mm
Y-AXIS Working Feed: 60 m/min
Z-AXIS Movement: 115 mm
Z-AXIS Working Feed: 60 m/min
X-Y-Simultaneous Working Feed: 85 m/min
Pa Accuracy: 0.1
Ps Accuracy: 0.03

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1250 mm
Workpiece weight: 500 kg

Table

Outer length: 2500 mm
Outer width: 1250 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Media

Main electronic connection: 400V / 50 Hz
Power consumption: 65 kVA
Air pressure: 6 bar
He consumption: 13.1 l/h
CO2 consumption: 1.1 l/h
N2 consumption: 5.8 l/h
Lubrication tank: 95 L
Chip conveyor: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
