TRUMPF - TC2000RES-PUN-TRU-1999-00003

Name: TRUMPF TC2000R
Brand: TRUMPF
SKU: ES-PUN-TRU-1999-00003
Price: 14000 EUR
Availability: InStock

14,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TRUMPF TC2000R For Sale | gindumac.com

Show in original language

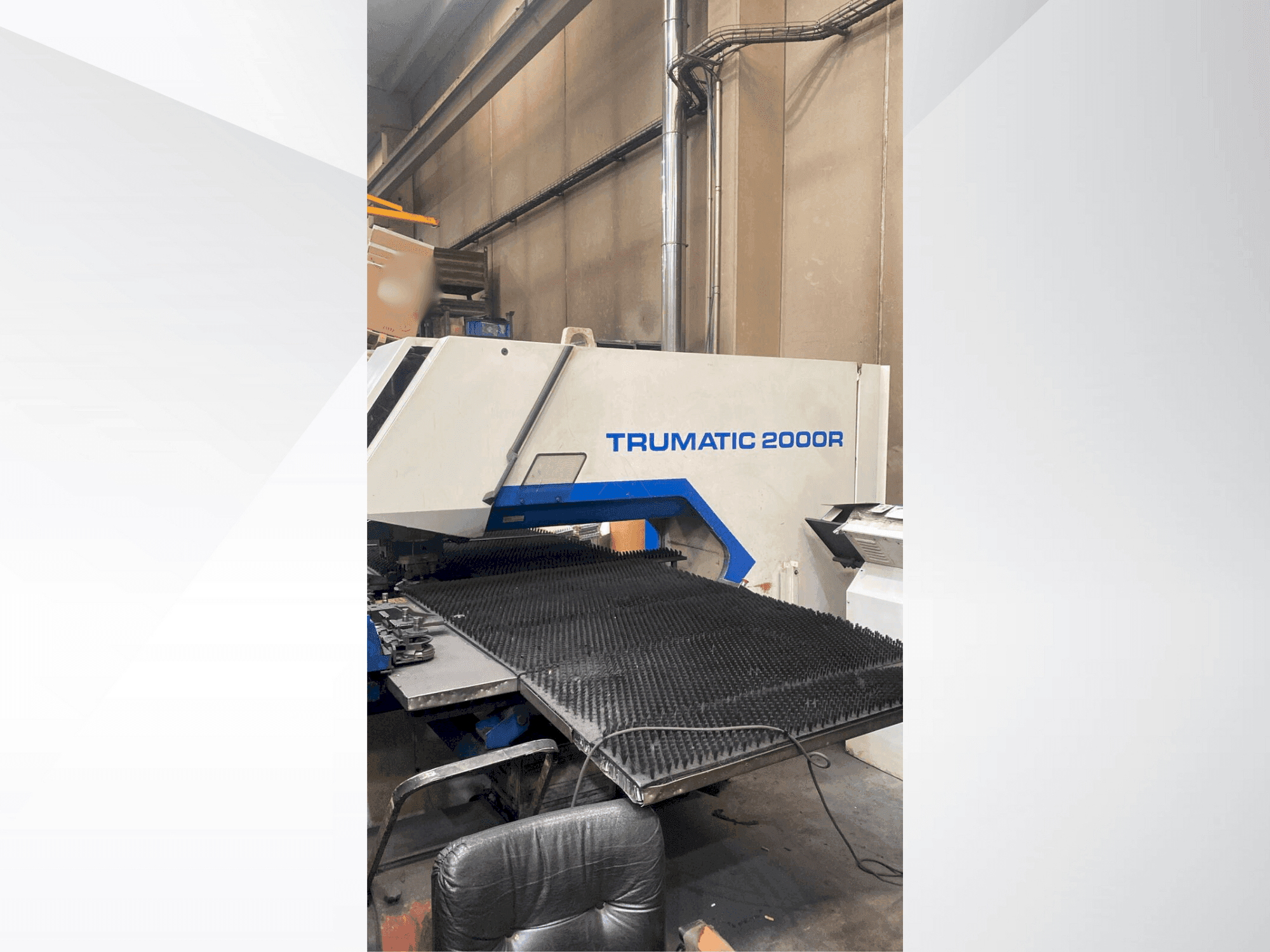

This 3-axis TRUMPF TC2000R was manufactured in 1999, featuring a robust 1270 mm X and Y-axis travel, expandable to 2020 mm for larger sheets. It boasts a 22-ton punching capacity and a high-speed punching rate of up to 900 strokes/min. The machine includes a 9-station linear magazine with an automatic turret-style changer and full C-axis rotation. Ideal for high precision CNC punching. Contact us for more information about this machine.

Overview

brand: TRUMPF
year: 1999
MODEL: TC2000R
application type: Punching
Location: Spain
machine type: CNC Punching Machine

Technical Information - TRUMPF TC2000R

General Data

Measurements width: 4100 MM
Measurements depth: 5700 MM
Measurements height: 2070 MM
Machine weight: 8000 KG

Main drive

Maximum sheet thickness: 6.4 mm

Movement

X-AXIS Movement: 1270 MM
Y-AXIS Movement: 1270 - 2020 MM

Workpiece

Workpiece weight: 75 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum punch diameter: 76 mm
- - Tool capacity: 9-station linear magazine (expandable with multitool options)
- - Tool change system: automatic turret-style changer
- - Tool indexing: yes, with full rotation (c-axis)
- - Programming interface: compatible with standard cad/cam punch software
- - Punching rate: up to 900 strokes/min at 1 mm pitch, up to 420 strokes/min at 25 mm pitch
- - Axis speed: x: 90 m/min, y: 60 m/min, simultaneous x/y: 108 m/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
