TRIMILL - DEPO MillDE-MIL-TRI-2007-00002

Name: TRIMILL DEPO Mill
Brand: TRIMILL
SKU: DE-MIL-TRI-2007-00002
Price: 89000 EUR
Availability: InStock

89,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TRIMILL DEPO Mill For sale | gindumac.com

Show in original language

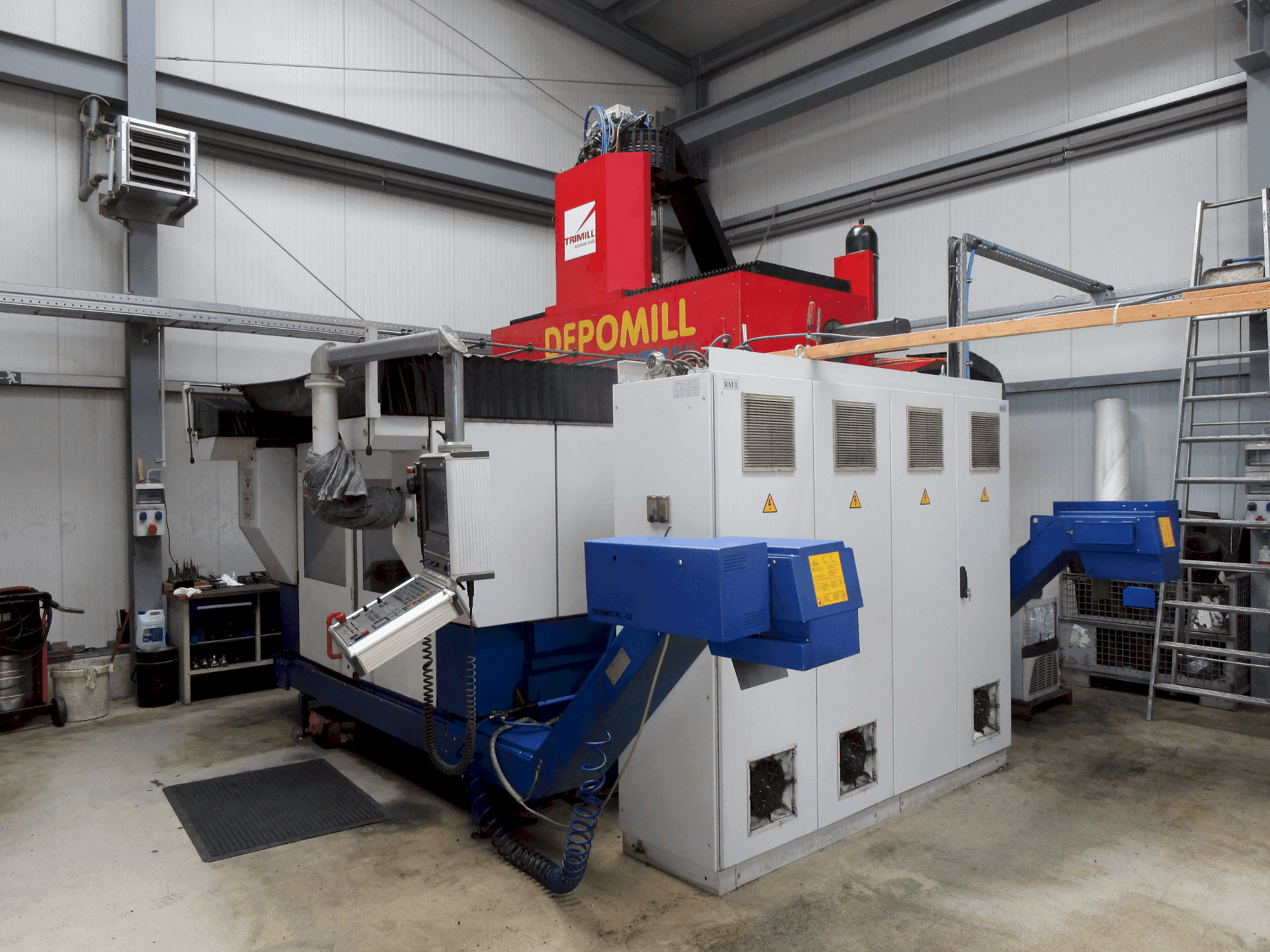

This 4-axis TRIMILL DEPO Mill was manufactured in 2007. A robust vertical machining center featuring a Heidenhain iTNC 530 control, a high-frequency spindle with a speed of 16,000 min-1, and a main spindle speed of 10,000 min-1. It supports a maximum workpiece weight of 20,000kg and offers a spacious clamping surface of 2300 x 1600 mm. For more information about this vertical machining center, please reach out to us.

Overview

brand: TRIMILL
year: 2007
MODEL: DEPO Mill
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - TRIMILL DEPO Mill

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 1 - 12,000 1/MIN
Tool taper: HSK 100 A
Number of axis: 3

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 800 mm
AXIS 1 Movement: +/- 180 °

Workpiece

Workpiece weight: Max 23,000kg

Tools

Slots in storage: 20

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter of the front spindle bearing: 100mm
- - Continuous torque: 200 nm
- - Distance clamping surface/spindle nose: max 1010mm
- - Air through spindle
- - Main spindle weiss max speed: 10000
- - High frequency spindle imt hsk40 with docking station speed: 16000

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
