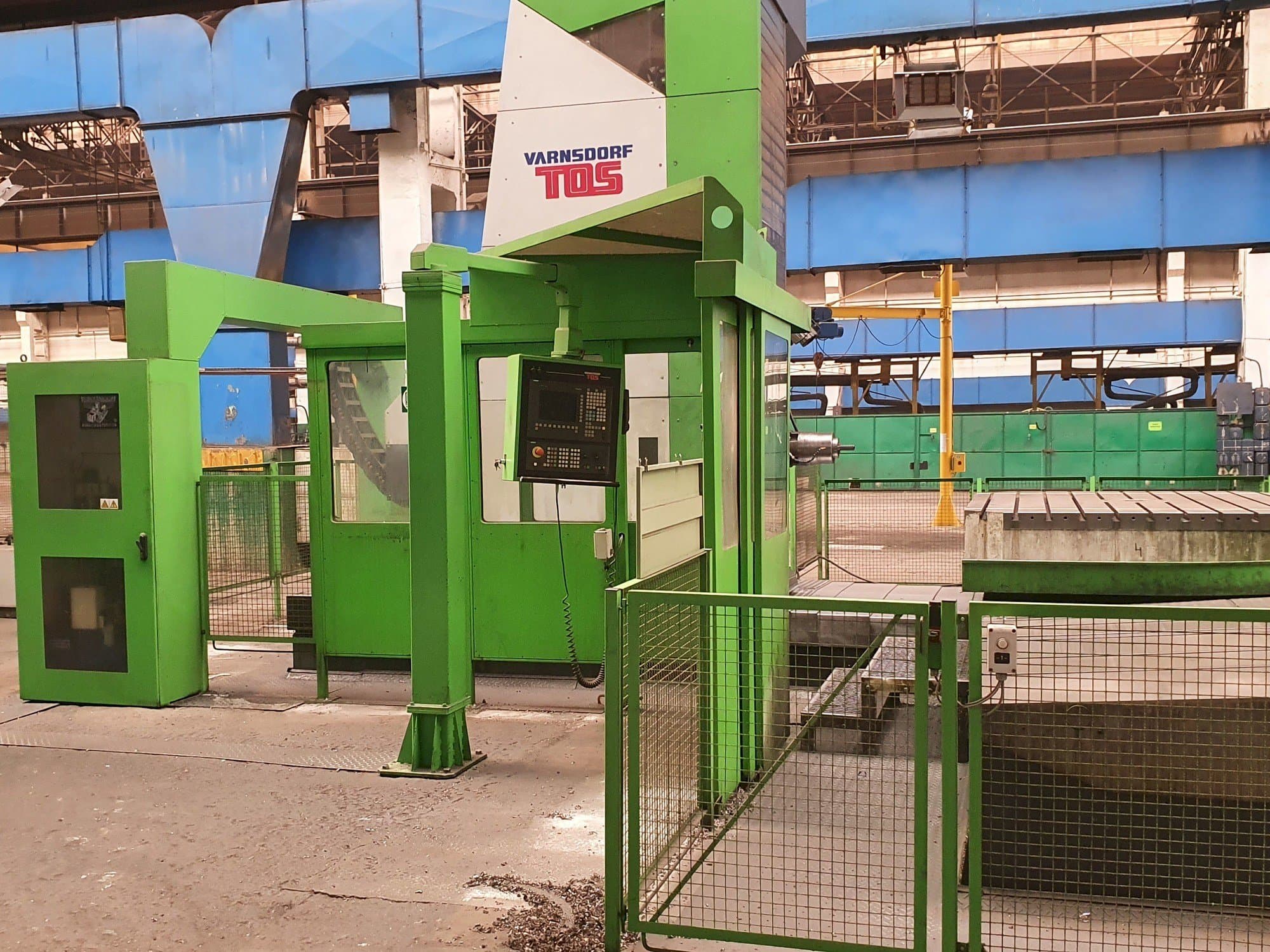

Front view of TOS VARNSDORF WHN 13 CNC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TOS VARNSDORF WHN 13 CNC

Photo Gallery

TOS - VARNSDORF WHN 13 CNCPL-MIL-TOS-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
TOS VARNSDORF WHN 13 CNC Milling

Show in original language

This TOS VARNSDORF WHN 13 CNC horizontal machining center and boring machine was built in 2013. It has been on for 27896 hour, of which 131150 are spindle hours. It is operated through a Sinumerik 840 D control unit. This 5 axis machine can perform with a speed up to 3000 rpm. It presents very good working conditions and full service documentation.

Overview

brand: TOS
year: 2013
MODEL: VARNSDORF WHN 13 CNC
production hours: 27896
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - TOS VARNSDORF WHN 13 CNC

General Data

Measurements width: 8305 mm
Measurements depth: 8624 mm
Measurements height: 5661 mm
Machine weight: 38850 kg

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 10 - 3000 1/MIN
Tool taper: ISO 50
Number of axis: 5

Movement

X-AXIS Movement: 3500 mm
X-AXIS Working Feed: 5.000 mm/min
Y-AXIS Movement: 2000 mm
Y-AXIS Working Feed: 5.000 mm/min
Z-AXIS Movement: 1250 mm
Z-AXIS Working Feed: 5.000 mm/min
W-Axis Movement: 800 mm
W-Axis Working Feed: 4 – 5.000 mm/min
B-AXIS Working Feed: 0.003 - 1.5 1/min

Workpiece

Workpiece weight: 12000 kg

Table

Outer length: 2200 mm
Outer width: 1800 mm

Media

Main electronic connection: 3 x 400 / 50 Hz
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working feed range: axis x, y, z: 4 –5. 000 mm/min
- - Working spindle diameter 130 mm
- - Headstock type "r"
- - Total installed power of the machine: 82 kva
- - Portable control panel
- - Hydraulic power pack
Qualitative Machine Benefits:
- - Very good working condition
- - Full service documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
