➤ Used TGT V2 Maxima grinding machine For Sale | gindumac.com

Show in original language

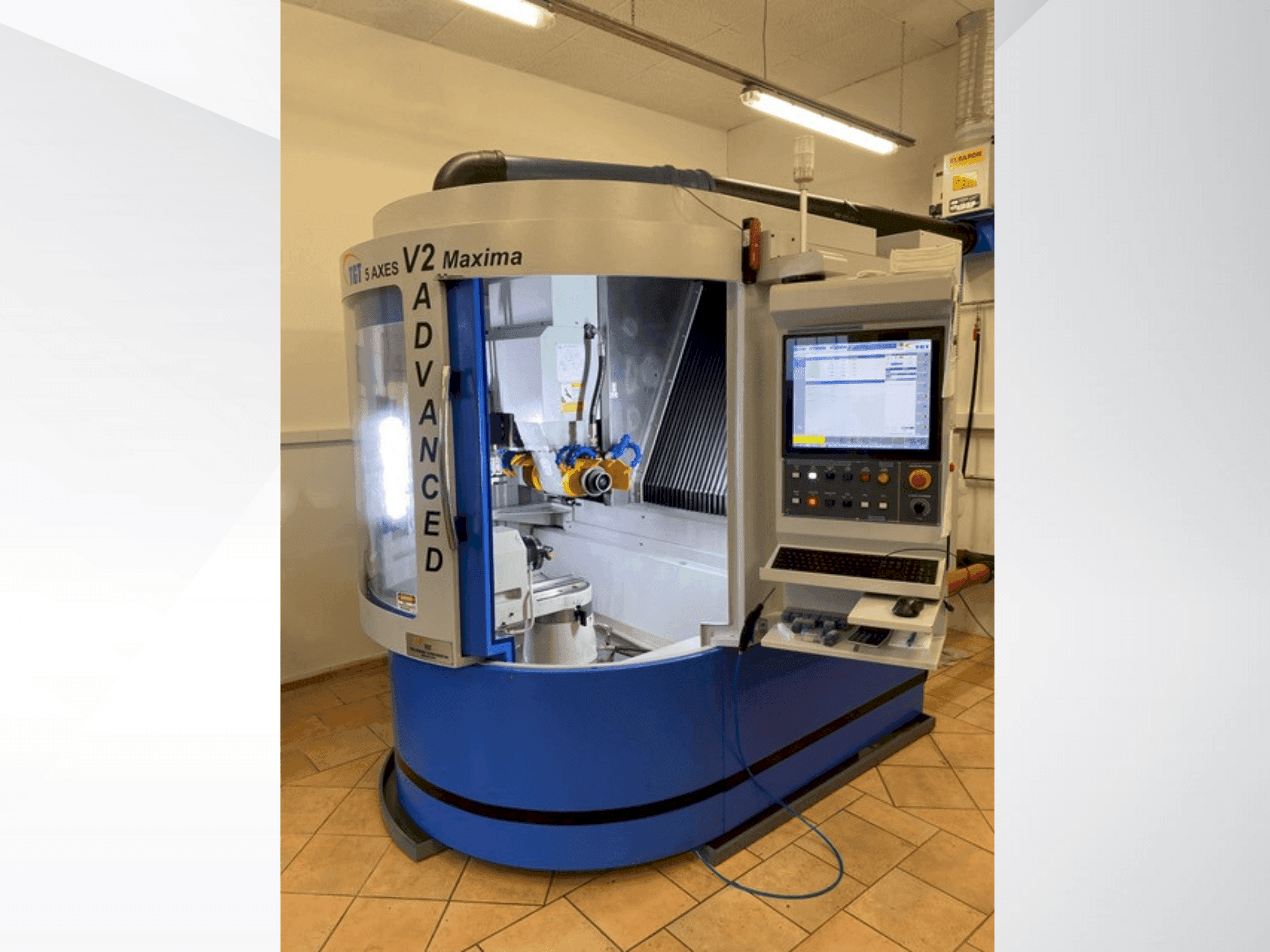

This 5-axis TGT V2 Maxima was manufactured in 2020 and is in mint condition. It features an ELBARON grinding mist extraction system and includes collets for diameters up to 20 mm. Extras include robot pallets, spare spindle, and sanding wheel packs. Consider the opportunity to buy this TGT V2 Maxima. Contact us for more information.

Overview

brand: TGT
year: 2020
MODEL: V2 Maxima
application type: Grinding
Location: Austria
machine type: Grinding Machine

Technical Information - TGT V2 Maxima

Additional Equipment

- ELBARON grinding mist extraction system / Robot pallets / Collets for all common diameters up to 20 mm / Spare spindle / Sanding wheel packs and associated sanding wheels (Approx. 25 pieces)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Operating time: 42000 minutes
- - Machine in mint condition / original spare spindle available, eliminating waiting times for spindle maintenance / full description and installation manual included

Extra information

- Spindle bearing: Front/rear: 7010 CTYN DU L P4 (NACHI)/ Lubricating grease: Kluberisoflex Super LDS 18 or NBU 25 (2.75 cc per bearing)/ Tightening torque: 58 Nm (front/rear)/ Concentricity: ≤ 0.002 mm/ Motor: LENZE 7.5 kW (10 hp), 4-pole/ Speed: 0-4500 rpm (frequency converter)/ Belt: PJ-12-1143L (GATES/FENNER)/ 2 Feed drive unit - X- and Z-axis/ Stroke: X-axis: 300 mm/ Z-axis: 680 mm/ Ball screw: Type: Fixed - Supported/ Bearing: 25TAB06DBFLP4 (NACHI, 62 Nm tightening torque)/ Ball screw spindle: BIF 3210A-5 (THK, Ø32 mm, pitch 10 mm)/ Motor: BECKHOFF AM8053-0G20 (11.4 Nm)/ Clutch: SFC 050 DA2-24B-20B (MIKI PULLEY)/ 3 Feed drive unit - Y-axis Stroke: 300 mm/ Ball screw: Bearing: 25TAB06DBFLP4 (NACHI, 62 Nm)/ Ball nut specification: BIF 3210-5 (THK)/ Motor: BECKHOFF AM8061-0GB1 (12.8 Nm)/ Coupling: SFC 060 DA2-20B-32B (MIKI PULLEY)/ / Rotatable table - axis A/ Bearing: 7014 CTYN DUL P4 (NACHI)/ Tightening torque: 255 Nm (front), 62 Nm (rear)/ Radial runout: ≤ 0.002 mm/ Grease: Kluberisoflex Super LDS 18 (3.6 cc per bearing)/ 5th Rotary Table Assembly - C Axis/ Bearing: YRT 100 (GOLDBULL)/ Assembly torque: 14 Nm (3-stage: 40% → 70% → 100%)/ Motor: ORION_230/140 (NIMBLE/UCAM), 238 Nm/ Encoder: RENISHAW/ main coolant system/ Flow rate: 85 L/min/ Tank volume: 400 liters/ Pump: RKM206 (Rajamane, 1.5 kW, 6-stage)/ Filtration: Paper filter Para mol N 334/150 (0.01 mm)/ lubrication layout/ Oil pump: ELU-2700 (Cenlub, 3 liters, 415V AC)/ Metering Cartridge: 320410-3 (LUBE)/ steady rest (manual)/ Vertical stroke: 3 mm/ Diameter range: Ø3-Ø22 mm/ Carriage travel: 120 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
