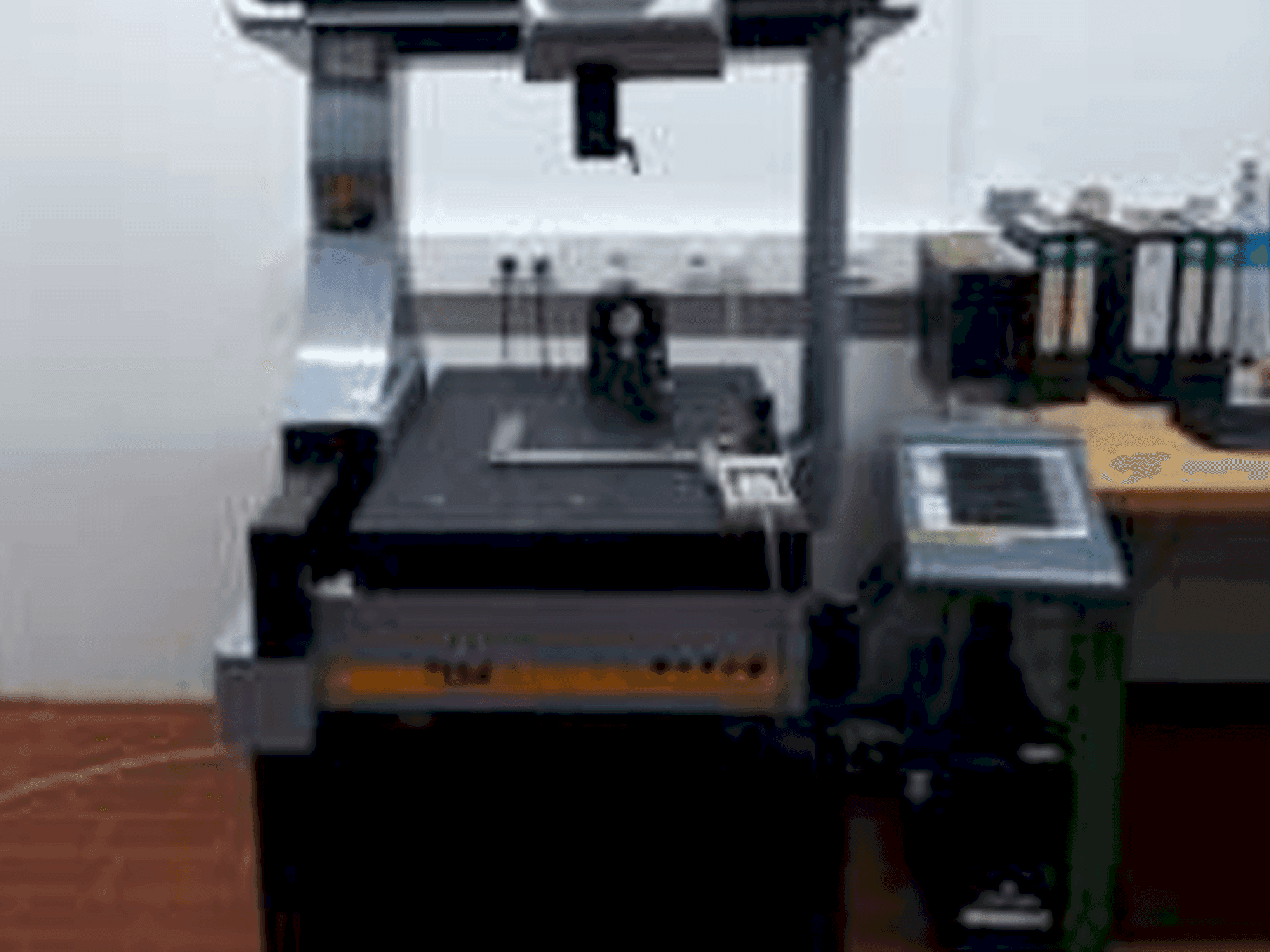

Front view of TESA Micro-Hite MH3D Recorder 454 Tesaslar-i machine
Front view of TESA Micro-Hite MH3D Recorder 454 Tesaslar-i machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TESA - Micro-Hite MH3D Recorder 454 Tesaslar-iDE-MEA-TES-2013-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis TESA Micro-Hite MH3D Recorder 454 Tesaslar-i was manufactured in 2013. Ideal for precise measurements, this CMM machine offers reliable performance for quality control in manufacturing. Consider the opportunity to buy this TESA Micro-Hite MH3D Recorder 454 CMM machine. Contact us for more information about this machine.

Overview

  • brand: TESA
  • year: 2013
  • MODEL: Micro-Hite MH3D Recorder 454 Tesaslar-i
  • application type: Measuring
  • Location: Germany
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - TESA Micro-Hite MH3D Recorder 454 Tesaslar-i

General Data

  • Machine weight: 350 kg

Main drive

  • Number of axis: 3

Workpiece

  • Workpiece x: 600 mm
  • Workpiece y: 750 mm
  • Workpiece z: 430 mm

Table

  • Table load: 227 kg

Tools

  • Type of tool holder: SK40 / VDI 30

    Additional Equipment

    • - Accessories: Various probes

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Measuring range (x/y/z): 454 x 440 x 490 x 390 mm
        • - Measurement uncertainty according to vdi/vde: u1 (3+ 3l/1000) µm u3 (3+ 4l/1000) µm
        • - Repeatability: joystick operation: 3 µm cnc operation: 2. 5 µm
        • - Maximum traverse speed: 760 mm/s
        • - Compressed air requirements: pressure: 4 bar, filtered to iso 8753 part 1 class 4 air consumption: max. 81 l/min
        • - Voltage: 115 to 230 v
        • - Frequency: 50-60 hz
        • - Current: 0. 3 - 0. 7 a
        • - Operating temperature range: 20 ± 1°c
        • - Working temperature range: 13 to 38°c

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
