- ➤ Used TECHNOLOGY TP 356 Alpha Series Punching machine

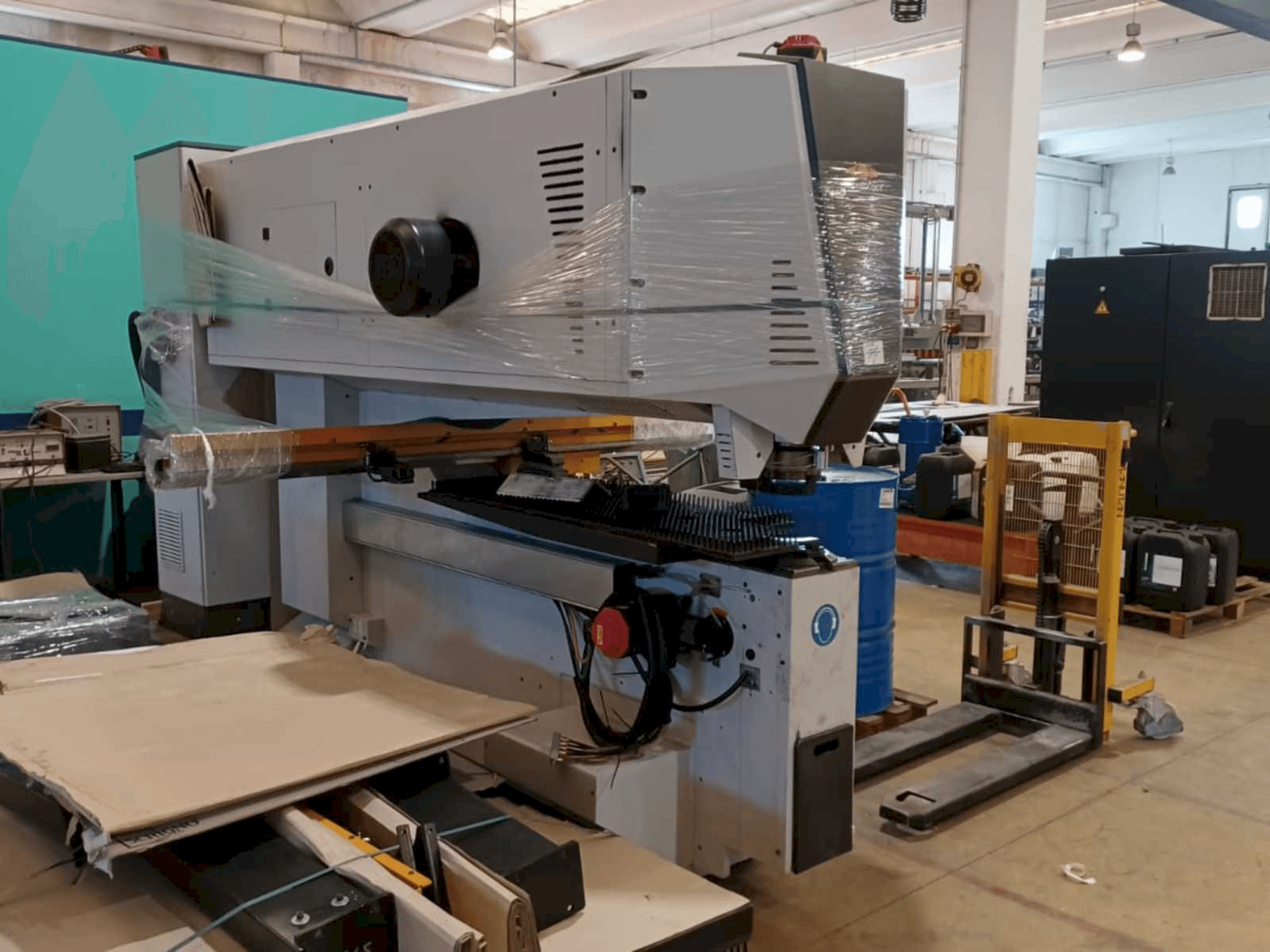

This TECHNOLOGY TP 356 Alpha Series Punching machine was manufactured in the year 2015. It is equipped with a Fanuc control unit. The machine has a punching force of 300 kN.
Overview
- brand: TECHNOLOGY
- year: 2015
- MODEL: TP 356 Alpha Series
- application type: Punching
- Location: Italy
- machine type: Punch-Laser Combination
- control unit brand: FANUC
Technical Information - TECHNOLOGY TP 356 Alpha Series
General Data
- Measurements width: 3200 mm
- Measurements depth: 4700 mm
- Measurements height: 2300 mm
- Machine weight: 9500 kg
Control Unit
- Brand: FANUC
Main drive
- Punching force: 300 kN
Table
- Outer length: 1250 mm
- Outer width: 1550 mm
Additional Information
- Technical Machine Benefits:
- - With repositioning: 1250 x 3000mm
- - Maximum sheet thickness: 6mm
- - Maximum sheet weight: 150kg
- - X axis displacement speed: 75m/min
- - Y axis displacement speed: 60 m /min
- - Tool change time: 12 seconds, tool change time with multitool: 1,5 seconds
- - Punching accuracy: +/- 0,01 – (0,0003”)
- - Max power consumption: 7kw, power consumption main motor: 1,5kw
- Qualitative Machine Benefits:
- - The machine comes with 12 months warranty
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
