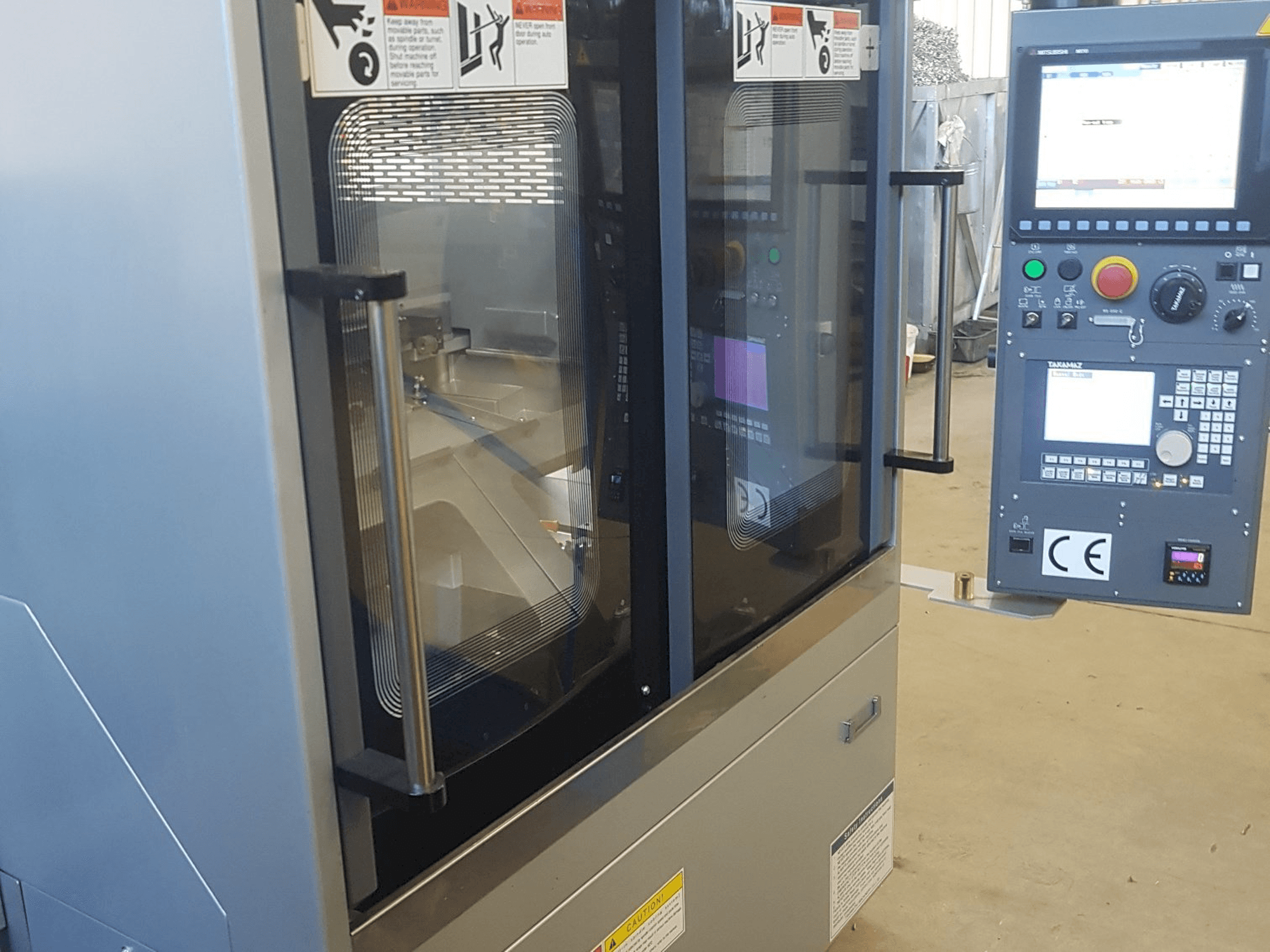

Front view of Takamaz XW-30 Plus machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Takamaz XW-30 Plus

Photo Gallery

Takamaz - XW-30 PlusCZ-TUR-TAK-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Takamaz XW-30 Plus Lathe

Show in original language

This Takamaz XW-30 Plus Lathe was manufactured in Japan in 2016 and has been working for only 285 hours. Equipped with a Mitsubishi M70V Control unit, this machine can work with a spindle speed up to 8000 rpm. This machine presents perfectly good conditions, as it is like new.

Overview

brand: Takamaz
year: 2016
MODEL: XW-30 Plus
production hours: 285
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Takamaz XW-30 Plus

General Data

Measurements width: 1340 mm
Measurements depth: 2120 mm
Measurements height: 1900 mm
Machine weight: 2700 kg

Control Unit

Model: M70V
Brand: MITSUBISHI

Main drive

Number of spindles: 2
Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 kW

Movement

X-AXIS Movement: 160 mm
X-AXIS Working Feed: 12 m/min
Z-AXIS Movement: 230 mm
Z-AXIS Working Feed: 20 m/min

Workpiece

Workpiece weight: 0.3 kg

Additional Equipment

- Loading robot (2-axis, 30 mm workpiece diameter)
- 3 x 380V transformer

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 50 mm
- - Optimal turning diameter 30 mm
- - Max. Turning length 50 mm
- - Spindle taper a2-3
- - Max. Chuck diameter 100 mm
- - 2x linear tool holder: dimension 240x140 mm, outer tool 16x16 mm, boring bar diameter 25 mm
- - Linear guideways on x/z axes
- - Air cylinders matsumoto for both spindles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
