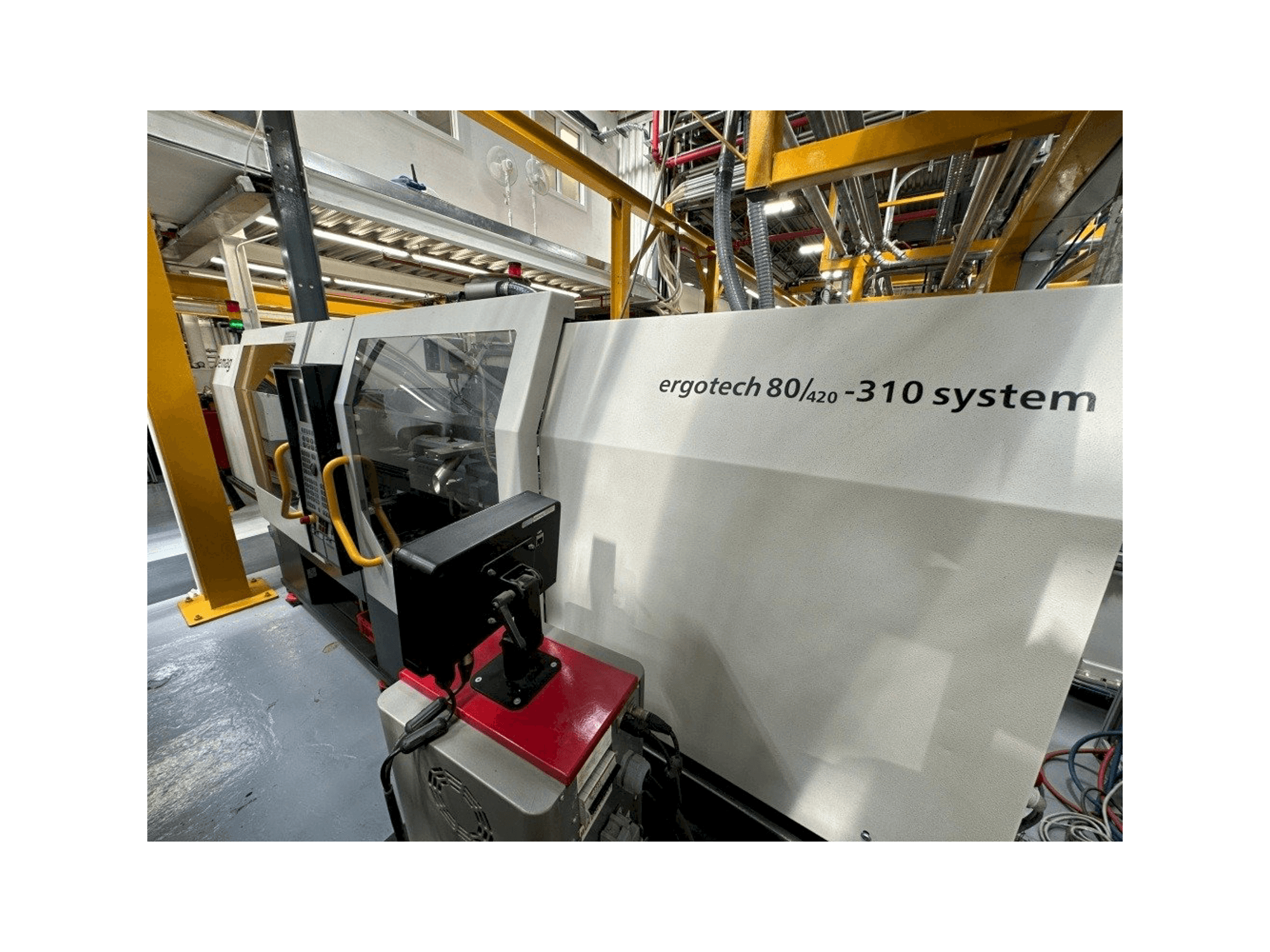

Front view of DEMAG Ergotech 80/420-310 System machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SUMITOMO SHI DEMAG Ergotech 80/420-310 System

Photo Gallery

SUMITOMO SHI DEMAG - Ergotech 80/420-310 SystemIE-INJ-DEM-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
DEMAG Ergotech 80/420-310 System Injection Moulding Machine

Show in original language

This DEMAG Ergotech 80/420-310 System Injection Moulding Machine was built in 2003 in Germany. It is equipped with a Demag NC4 control unit. The machine has a clamping force of 800 kN, a screw diameter of 30 mm and it is in very good condition.

Overview

brand: SUMITOMO SHI DEMAG
year: 2003
MODEL: Ergotech 80/420-310 System
application type: Injection Moulding
Location: Ireland
machine type: Hydraulic Injection Moulding Machine

Technical Information - SUMITOMO SHI DEMAG Ergotech 80/420-310 System

General Data

Measurements width: 3900 mm
Measurements depth: 1400 mm
Measurements height: 1900 mm
Machine weight: 4100 kg

Control Unit

Model: NC4
CNC main language: English
CNC language customizable: Yes

Injection Unit

Screw diameter: 30 mm
Shot weight: 94 g/PS
Stroke volume: 106 CM³
Injection pressure: 1990 bar

Clamping unit

Clamping force: 800 kn
Opening stroke: 450 mm
Max open daylight: 750 mm
Distance between bars: 420 mm
Mould height min: 250 mm
Size of mold platens: 600 mm
Ejector stroke: 150 mm
Ejector force for / back: 41 kn

Media

Main electronic connection: 400 V

Additional Equipment

- Conveyor

Additional Information

Machine history

Material type: Plastic
End product: Automotive parts
Industries: Automotive industry

Machine Benefits

Technical Machine Benefits:
- - 80t machine
Qualitative Machine Benefits:
- - Very good condition
- - Well maintained

Extra information

- Hopper and Kistler Unit in photos not included in sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
