- STARTECH SP7 universal machining center
Show in original language

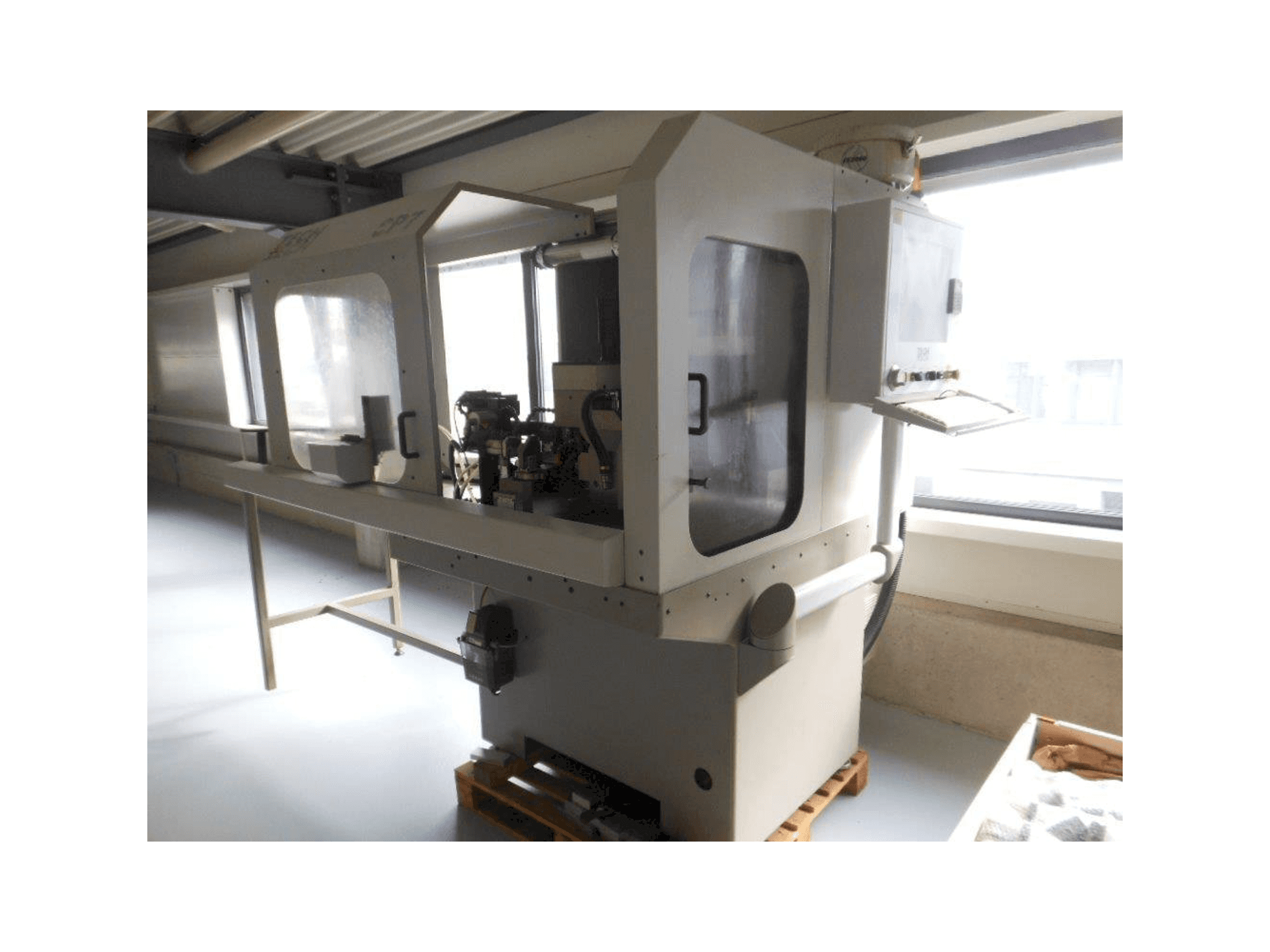

This STARTECH SP7 universal machining center was manufactured in France in the year 2005. This machine works with a spindle speed up to 10000 rpm. This 7 axis bar machining center comes with 14 spindles and automatic backworking.
Overview
- brand: STARTECH
- year: 2005
- MODEL: SP7
- application type: Milling
- Location: Switzerland
- machine type: Universal Machining Centre
- availability: Sold
Technical Information - STARTECH SP7
General Data
- Measurements width: 2400 mm
- Measurements depth: 1500 mm
- Measurements height: 1900 mm
- Machine weight: 1800 kg
Main drive
- Number of spindles: 14
- Spindle speed range: 10000 1/MIN
- Number of axis: 7
Movement
- X-AXIS Movement: 150 mm
- Y-AXIS Movement: 240 mm
- Z-AXIS Movement: 190 mm
Media
- Main electronic connection: 3 x 400 V 1 50 Hz
- Power consumption: 7 kVA
Additional Information
- Technical Machine Benefits:
- - Automatic bar feeder
- - Coolant tank capacity 100 l
- - Pump flow rate 22 umin
- - Pc and pmac card
- - Pneumatic clamping for bar g 25 mm. Max
- - 2 additional radial spindles with brushless motors
- - Oil mist separation belt filter
- - Vice on feed tube
- - Lubricant cooling
- Qualitative Machine Benefits:
- - Pneumatic disassembly of the tool holders, which allow the presetting of the tools to iso 20 outside the machine
- - Rigid tapping (rigid tapping) on all spindles
- - Numerical feed tube with c axis
- - Remote maintenance
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
