➤ Used Starrag Heckert Dynamic CWK 400D | Machining Center

Show in original language

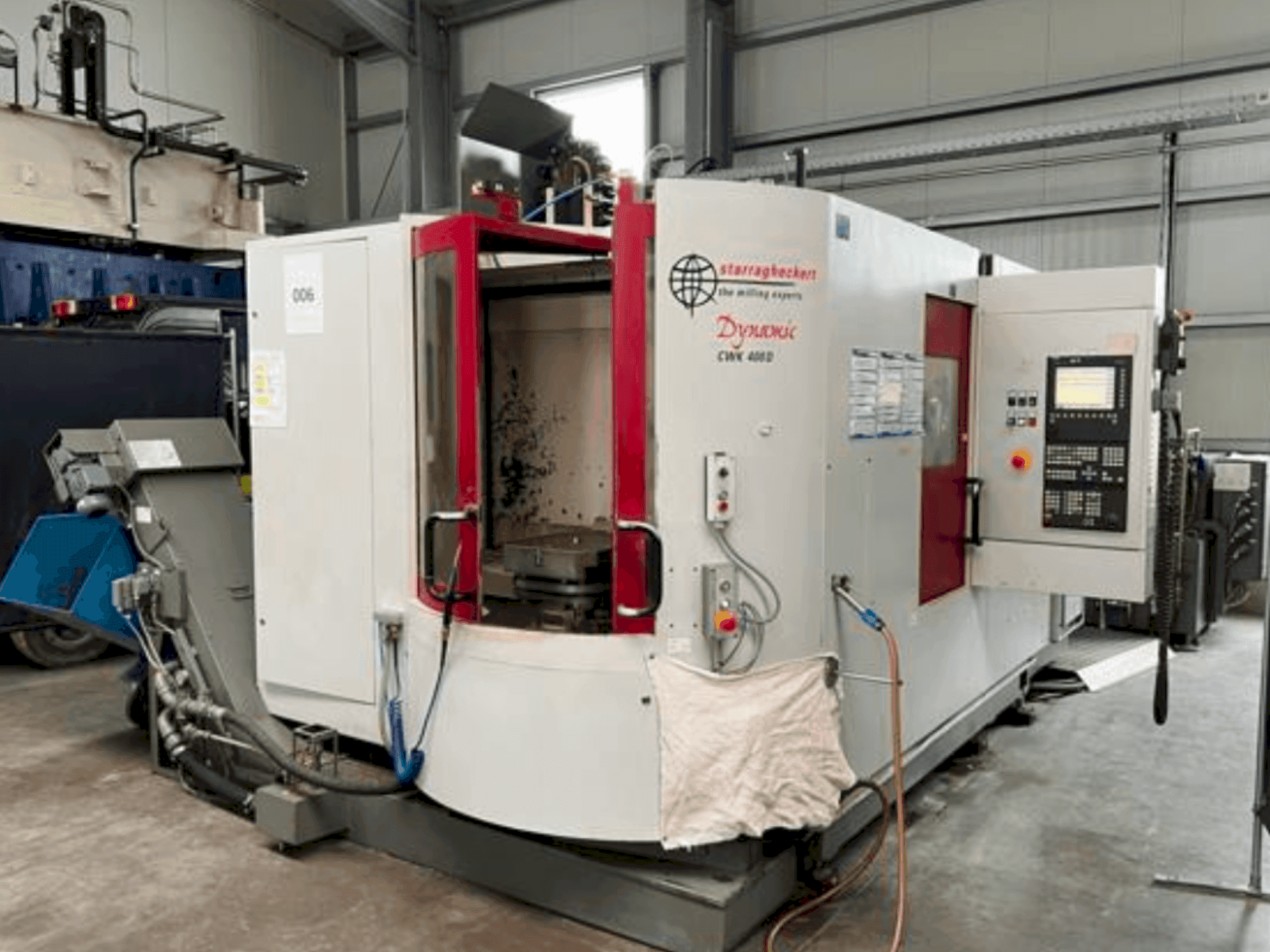

This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: Starrag Heckert
year: 2005
MODEL: Dynamic CWK 400D
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - Starrag Heckert Dynamic CWK 400D

General Data

Measurements width: 4800 mm
Measurements depth: 5800 mm
Machine weight: 12800 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 24 kW
Number of axis: 4

Movement

X-AXIS Movement: 625 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 650 mm
Z-AXIS Rapid traverse: 40 m/min

Table

Table load: 4000 kg

Tools

Max weight: 10 kg
Max tool diameter: 80 mm
Max tool length: 350 mm
Type of tool holder: DIN 69893-HSK-A63

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Renichaw measuring probe
Tool breakage detection: Yes, in tool magazine
Flushing gun at the setup station
Waterfall shower
Paper belt filter
Pallet sequential operation
Enclosed work area enclosure according to UW
Computer connection via Ethernet interface
Network connection

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
