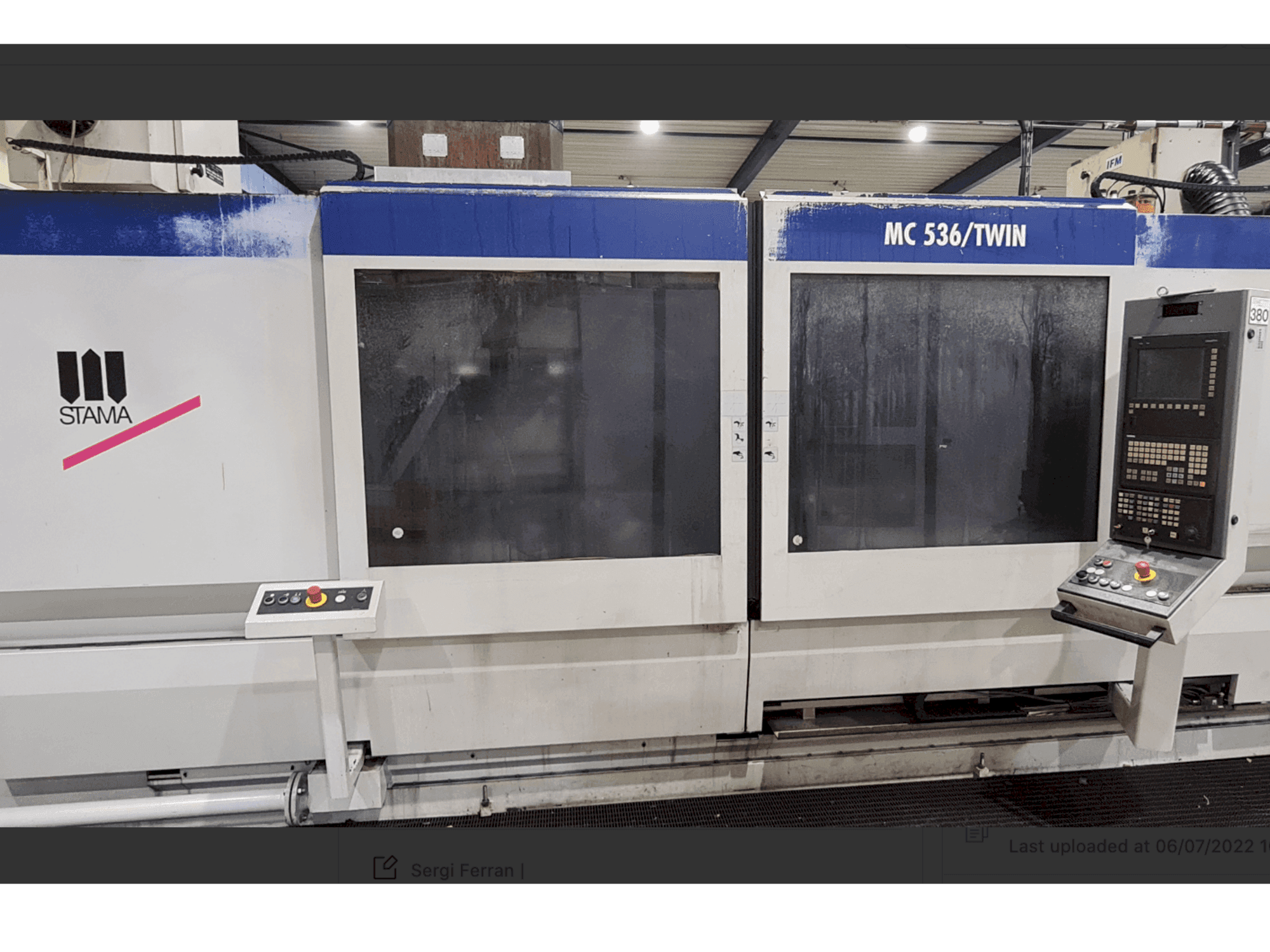

This STAMA MC536/Twin vertical machining machine was built in 2007. This 3 axis machine is operated through a SIEMENS SINUMERIK control unit. This machine has a spindle speed range 0-10000 rpm.
Overview
- brand: STAMA
- year: 2007
- MODEL: MC536/Twin
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - STAMA MC536/Twin
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK
Dimensions
- Machine Depth: 7300 mm
- Machine Height: 3500 mm
- Machine Weight: 14500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 2200 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 1 kW
- Spindle Speed: 8000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Technical Machine Benefits
- 2 pallets. Pallets size: 2 x 1250 x 250 mm
- Max. Milling capacity 500 cm3; max. Drilling 50 mm; max. Thread m36
- Internal coolant supply (50bar) din 69871 a/b
- Engine power: s6 - 40% ed - 70 kw
- Spindle bearing 95 mm
- Max. Torque 300 nm
- Spindle arrangement a=400
- Number of tools 2x21; tool tension 45000 n; max. Tool 180
- Feed speed x,y,z: 1-10000 mm
- Total connected load 96 kva
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
