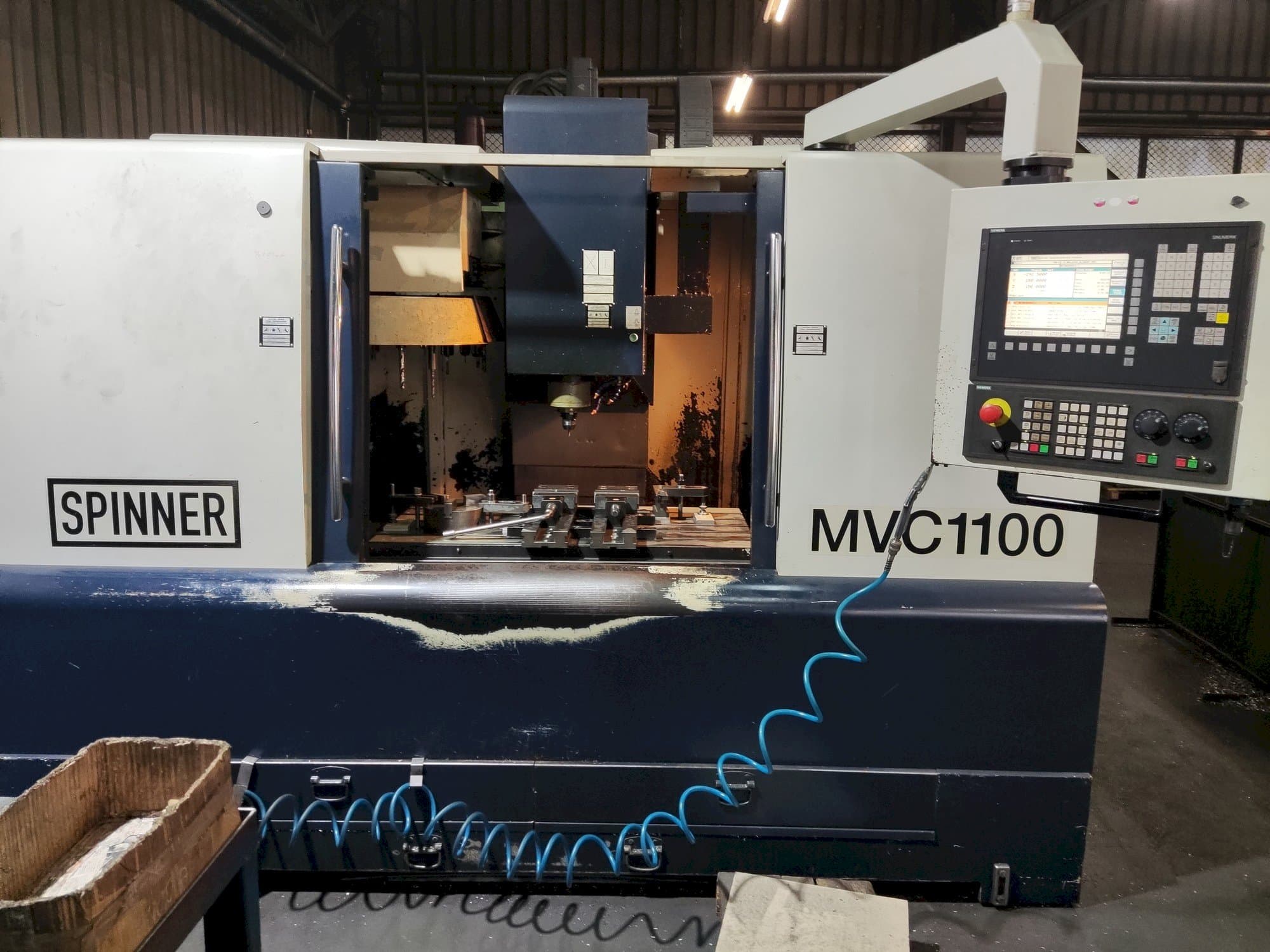

SPINNER MVC-1100 vertical machine center

Show in original language

This SPINNER MVC-1100 vertical machine center was built in 2006 in Germany. It is equipped with a Siemens 810DE control unit. The machine has a spindle speed of 10000 rpm.

Overview

brand: SPINNER
year: 2006
MODEL: MVC-1100
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER MVC-1100

General Data

Measurements width: 3600 mm
Measurements depth: 2350 mm
Measurements height: 2450 mm
Machine weight: 8000 kg

Control Unit

Model: 810DE
Brand: SIEMENS

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 18,5 kw
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 1100 mm
X-AXIS Rapid traverse: 18 m/min
Y-AXIS Movement: 610 mm
Y-AXIS Rapid traverse: 18 m/min
Z-AXIS Movement: 610 mm
Z-AXIS Rapid traverse: 15 m/min

Table

Outer length: 1200 mm
Outer width: 600 mm
Table load: 1000 kg

Media

Main electronic connection: 3/PE – 400V – 50/60 Hz

Additional Equipment

- spindle cone purging system
- fourth-axis preparation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control: siemens 810de with shop-mill graphical user interface for conversational programming
- - Automatic tool changer for 24 tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
