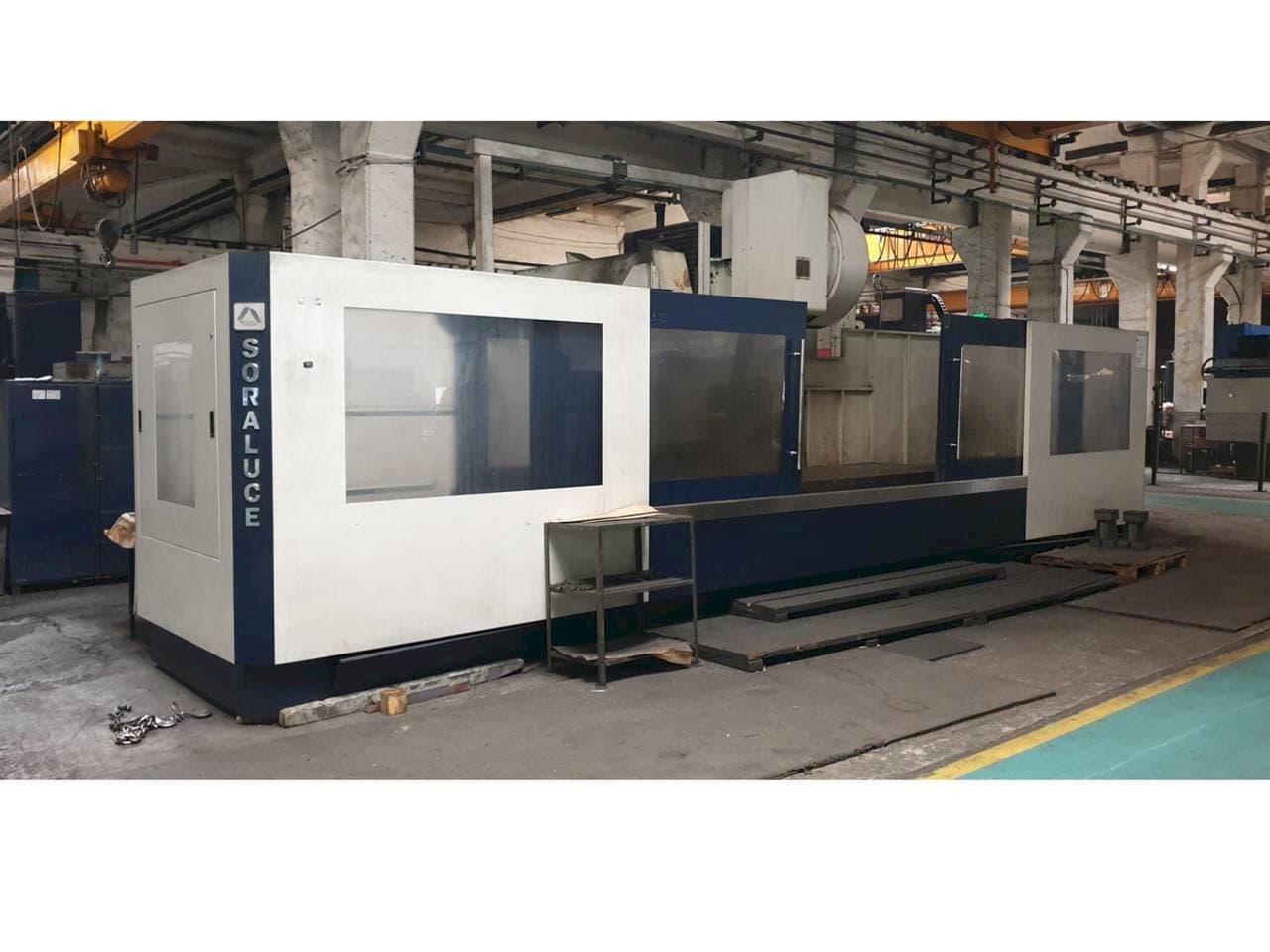

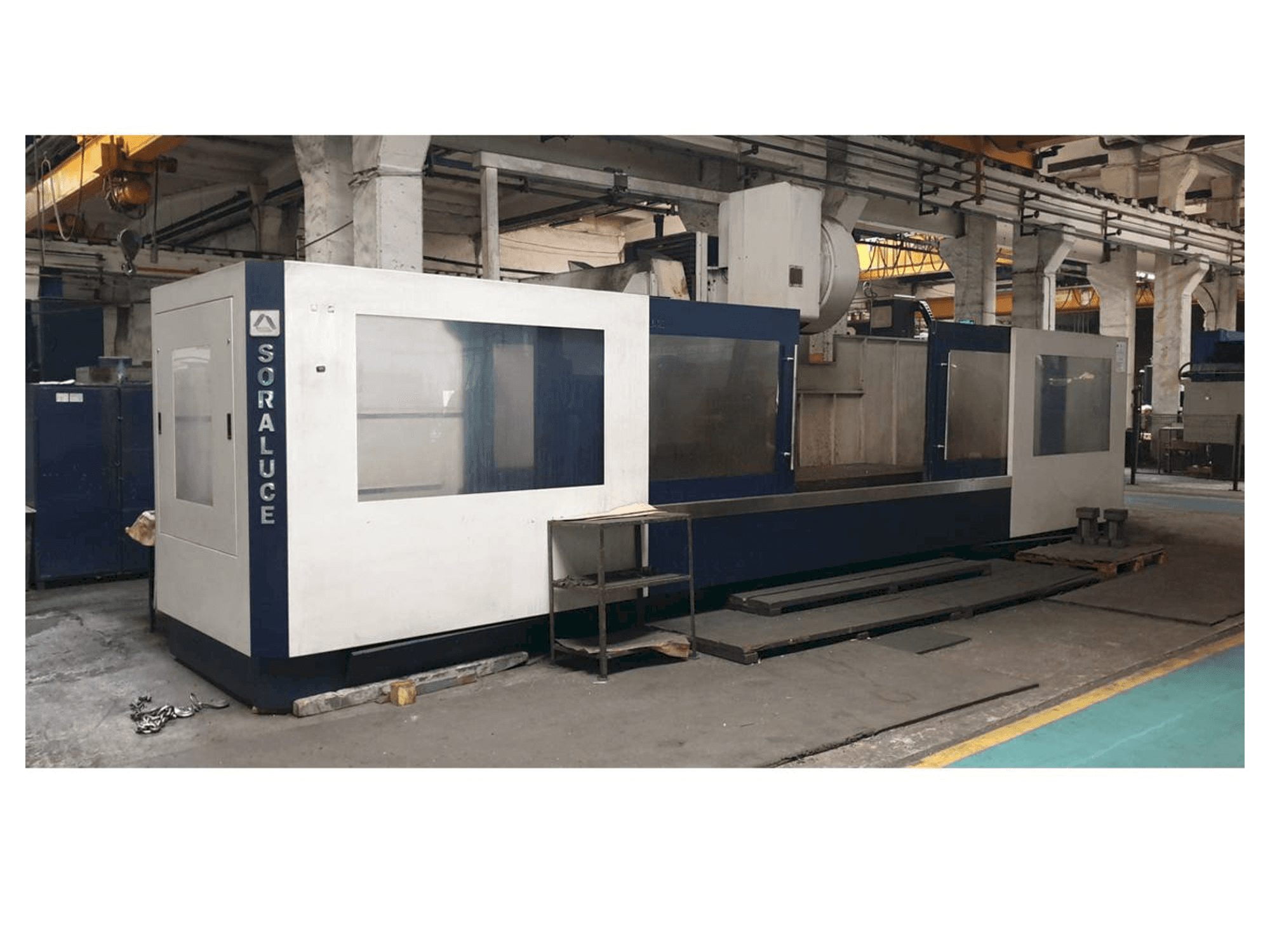

Soraluce TA 35

Photo Gallery

Soraluce - TA 35RO-MIL-SOR-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Soraluce TA 35 Milling Machine

Show in original language

This Soraluce TA 35 Milling Machine was made in the year 2012 in Spain. It is equipped with a Heidenhain control unit. It has approximately 30000 hours. This machine can work with a spindle speed range of 15 - 3000 rpm, a vertical course of 1250 mm, and a longitudinal course of 3500 mm.

Overview

brand: Soraluce
year: 2012
MODEL: TA 35
production hours: 30000
application type: Milling
Location: Romania
machine type: Bed Type Milling Machine
control unit brand: HEIDENHAIN

Technical Information - Soraluce TA 35

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 15 - 3000 1/MIN

Table

Table load: 2500 kg

Tools

Max weight: 15 kg

Media

Main electronic connection: 400 VAC 50 Hz
Power consumption: 49 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Maximum diameter of tool between alternate work stations: 200 mm
Maximum length of tool without cone: 200 mm

Technical Machine Benefits

Vertical course: 1250 mm
Longitudinal course: 3500 mm
Transversal ram course: 1000 mm
Table width of t-slots: 22 mm
Mandrel motor power level: 24 kw
Mandrel headstock cone: din-69871-a
Maximum working feeds: 10000 mm/min
Fast feeds: 20000 mm/min
Maximum thrust of shaft to cutting unit: 10000 n
Maximum diameter of tool between adjacent work stations: 125 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
