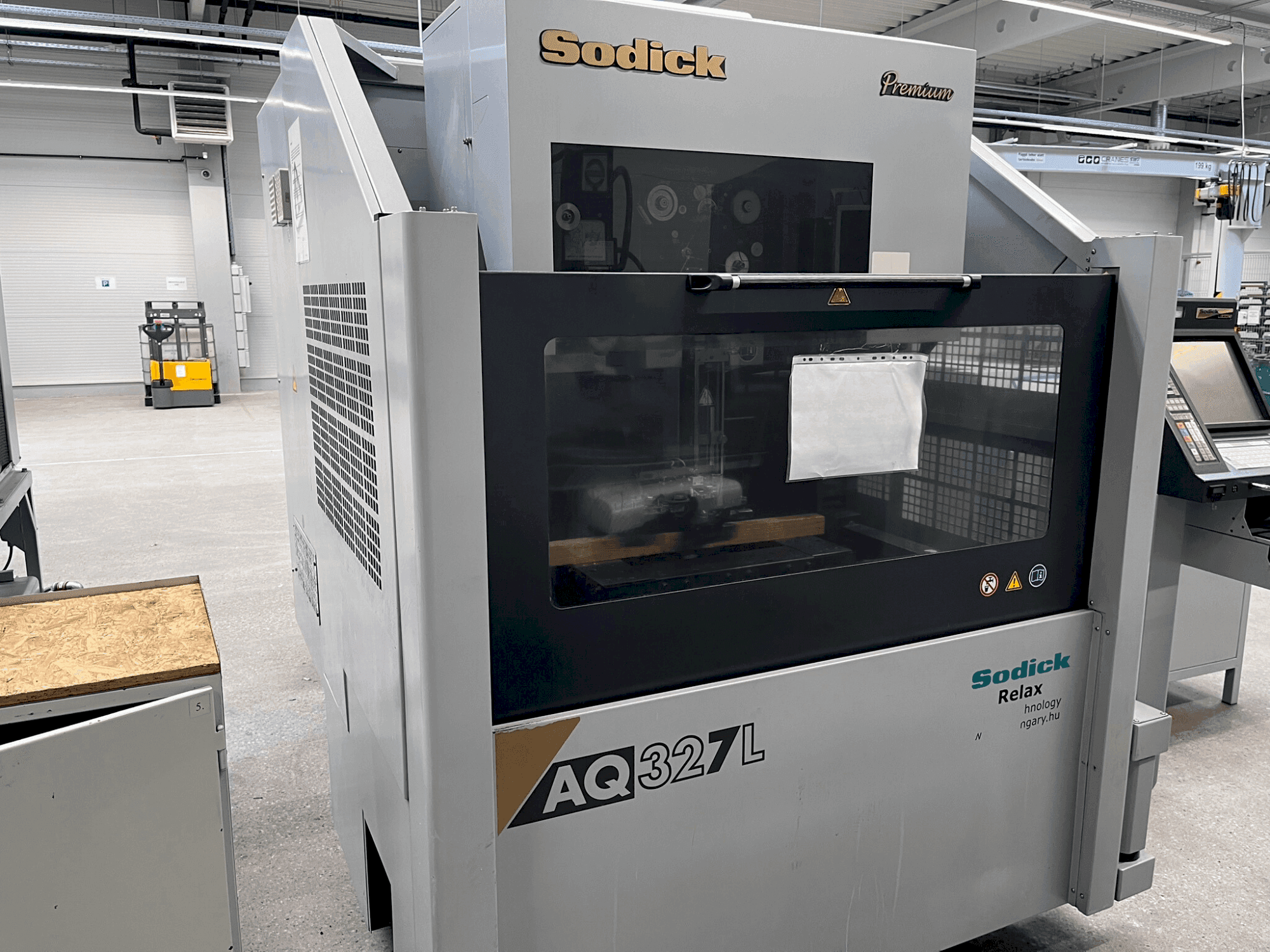

SODICK AQ327L Wire cut EDM machine

Show in original language

This SODICK AQ327L Wire cut EDM machine was manufactured in 2006. It is equipped with a SODICK LQ33W control and has 3 axes with axis travel (X x Y x Z) 370 x 270 x 250 mm. The machine has a work tank inner size of 820 x 610 mm and operates with a wire diameter of Ø 0.15 - Ø 0.3 mm.

Overview

brand: Sodick
year: 2006
MODEL: AQ327L
application type: EDM
Location: Hungary
machine type: Wire EDM Machine
control unit brand: SODICK

Technical Information - Sodick AQ327L

General Data

Measurements width: 2225 MM
Measurements depth: 2395 MM
Measurements height: 2220 MM
Machine weight: 3950 kg

Control Unit

Model: LQ33W
Brand: SODICK

Movement

X-AXIS Movement: 370 MM
Y-AXIS Movement: 270 MM
Z-AXIS Movement: 250 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Work tank size: 850 x 610 mm
- - Max. Workpiece dimensions (w x d x h) 570 x 420 x 240 (flushing) mm // 570 x 420 x 230 (submerged) mm
- - Max. Workpiece weight: 500 kg
- - U axis x v axis travel 120 x120 mm
- - Taper angle (workpiece thickness of 100mm) ±25°
- - Wire diameter 0. 15~0. 30#1 mm
- - Wire feed speed (max) 420 mm/sec
- - Wire tension 3~23 n
- - Distance from floor to table top 995 mm
- - Total power input normal: 10,5 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
