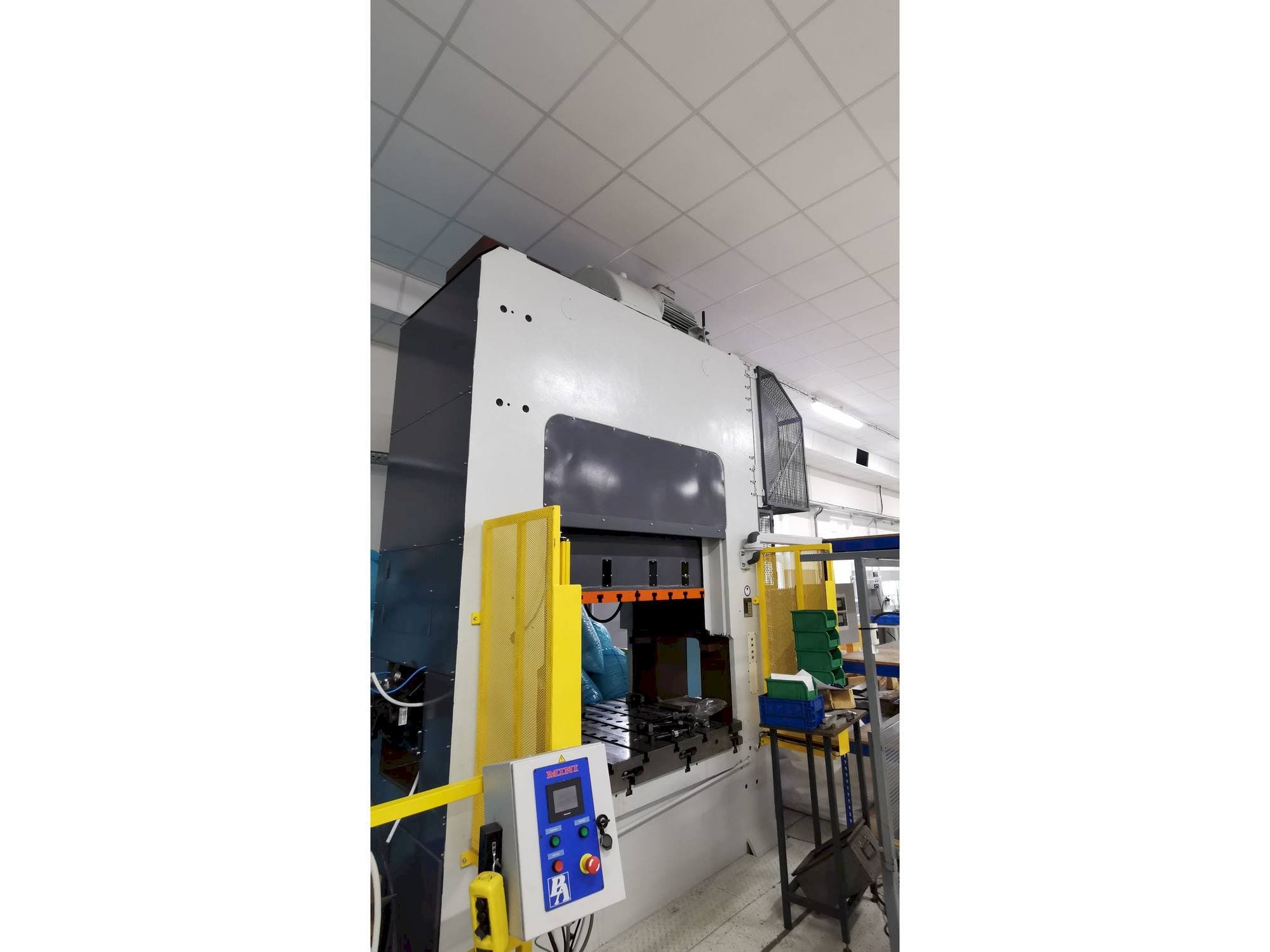

SMERAL LKT 250D Stamping machine

Show in original language

This SMERAL LKT 250D Stamping machine was manufactured in the year 2019 in Czech Republic. It is equipped with a MINI control unit.

Overview

brand: SMERAL
year: 2019
MODEL: LKT 250D
application type: Other Sheet Metal Machinery
Location: Slovakia
machine type: Stamping Machine

Technical Information - SMERAL LKT 250D

General Data

Machine weight: 27000 kg

Table

Outer length: 1575 mm
Outer width: 1150 mm

Additional Equipment

- Feeding line (decoiler, straightener, feeder)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main motor power 30 kw / nominal force 2500 kn / working path 12. 5 mm
- - Strokes per min 20 / ram stroke 250 mm
- - Ram size 1380 x 850 mm / adjustment of ram 100 mm
- - Daylight 1600 mm
- - Passage under guidance 1600 mm / table working surface 1575 x 1150 mm / table top thickness 130 mm
- - The power of the electric motor for adjustment is 2. 2 kw / speed of the electric adjustment motor 1440 rpm
- - Press width 2980 mm / press depth 1500 mm / press height 4615 mm
Qualitative Machine Benefits:
- - Fully retrofitted machine in 2019

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
