SMEC - PL 800VM RHKR-TUR-SME-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

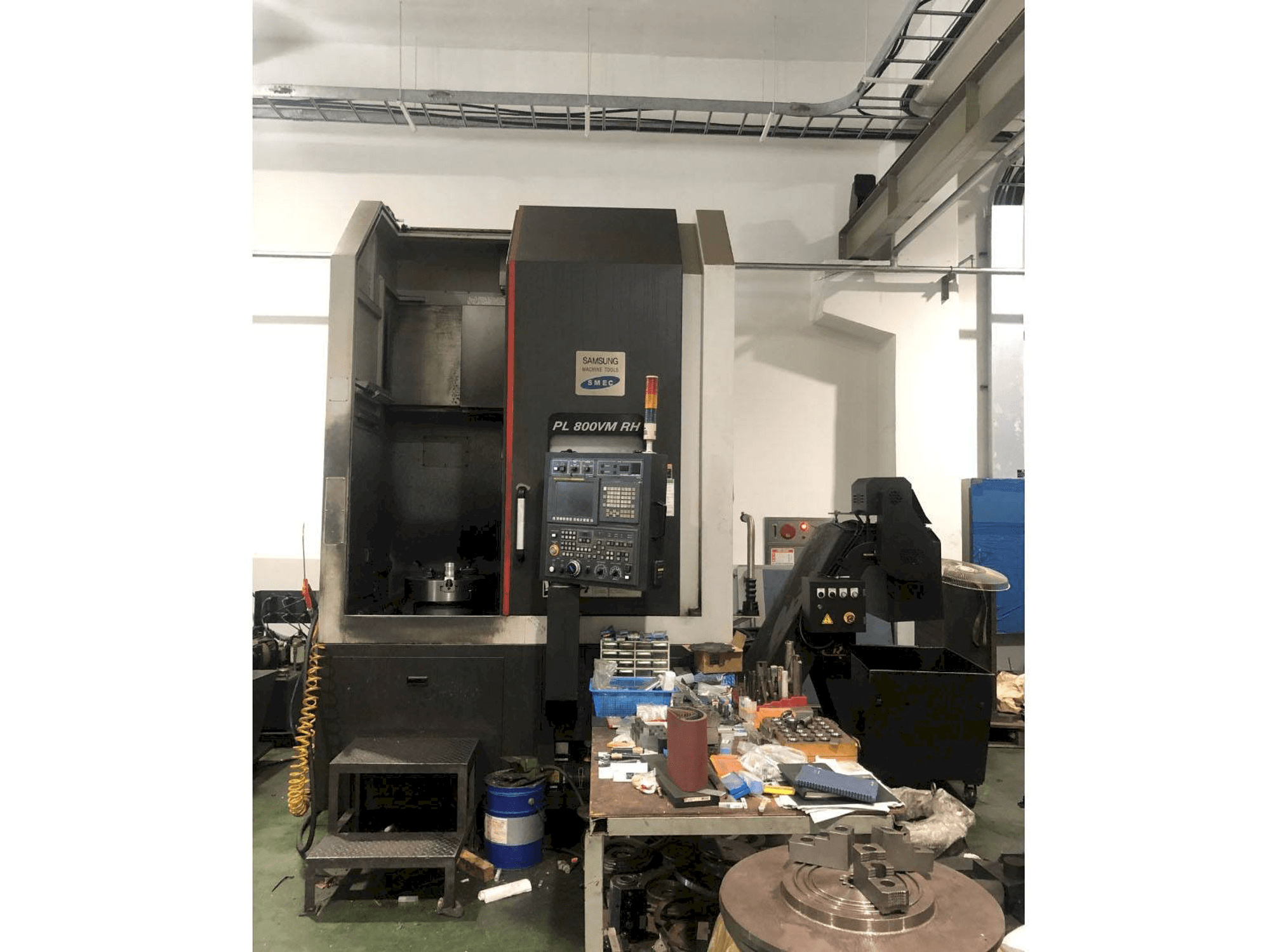

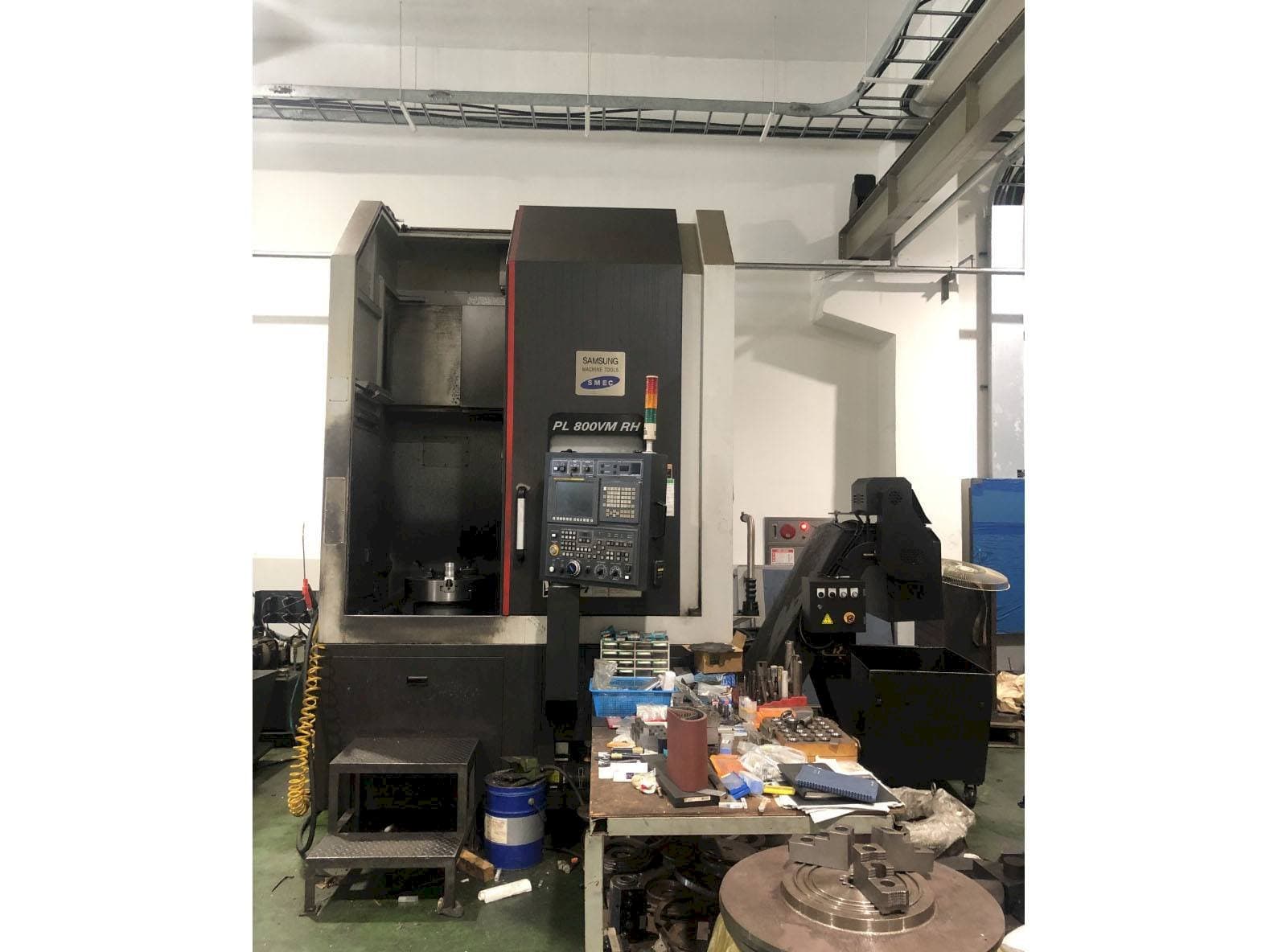

This SMEC PL 800VM RH Vertical Lathe was made in the year 2015. This machine is equipped with a FANUC control unit. It can work with a spindle speed up to 2000 rpm and a turning diameter 830 mm. It includes its manual books.

Overview

brand: SMEC
year: 2015
MODEL: PL 800VM RH
application type: Turning
Location: South Korea
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - SMEC PL 800VM RH

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 440 MM
Z-AXIS Movement: 800 MM

Media

Main electronic connection: 220 V 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 890 mm
- - Max. Turning diameter: 830 mm
- - Chuck size: 18 inch (457mm)
- - Turret magazine capacity: 12ea
- - Live tools (1 straight, 2 angular)
- - Box guide way type
- - Call right (led 3 step)
- - Mpg handle
- - Ce mark
Qualitative Machine Benefits:
- - Manual books

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
