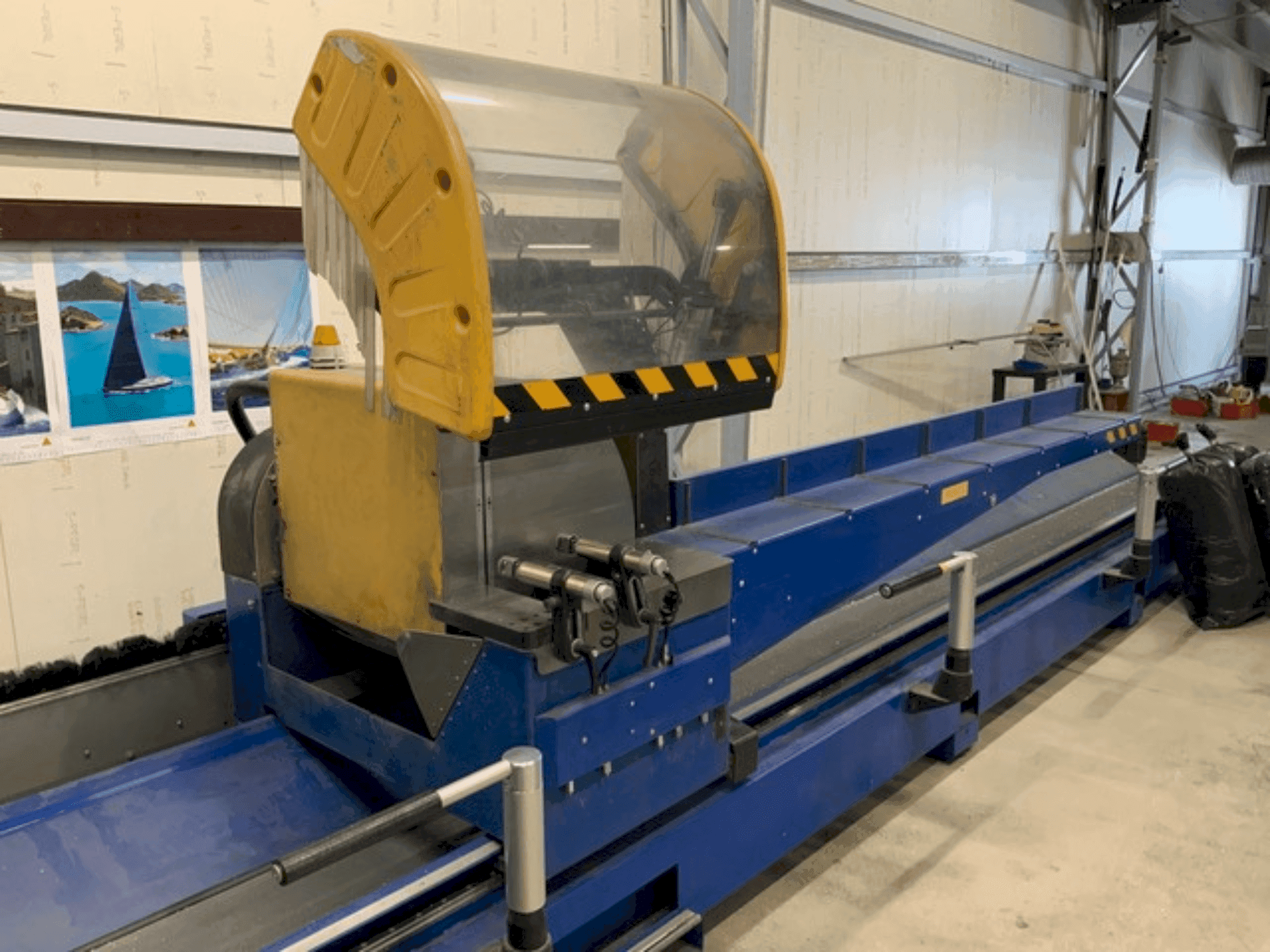

SCHÜCO - PDG e-Cut 600HU-SAW-SCH-2008-00001

Additional Equipment

• - Integral protective hood around cutting area
• - Mobile head roller table (3 m)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Three-phase motors: 4 kw, 2800 rpm, 400 v, 50 hz
  • - Total power absorption: 10 kw at 400 v ac
  • - Total absorbed current: 20 a at 400 v ac
  • - Heads tilt electronically controlled from 45° internal to 20° external
  • - First head: fixed
  • - Second head: mobile with automatic positioning
  • - Mobile head positioning speed (automatic mode): ≤ 25 m/min
  • - Mobile head positioning precision: ± 0. 1 mm
  • - Minimum and maximum cutting capacity between heads: 5000–6600 mm (depending on version)
  • - Double working pressure servo-controlled at low pressure
• Qualitative Machine Benefits:
  • - Working pressure: 7 bar (adjustable)
  • - Tungsten carbide sawblades Ø600 mm
  • - Blade holding spindle Ø 40 mm
  • - Indirect motor-blade transmission by belt and pulley
  • - Air consumption per work cycle: 53 liters
  • - Electrical switchboard separate from pneumatic one
  • - Horizontal (4) and vertical (2) pneumatic vices
  • - Microdrop lubrication with pure oil kit
  • - Three-phase motors 5. 5 kw 2800 rpm, 400 v, 50 hz
  • - Manual kit for undersize cutting
