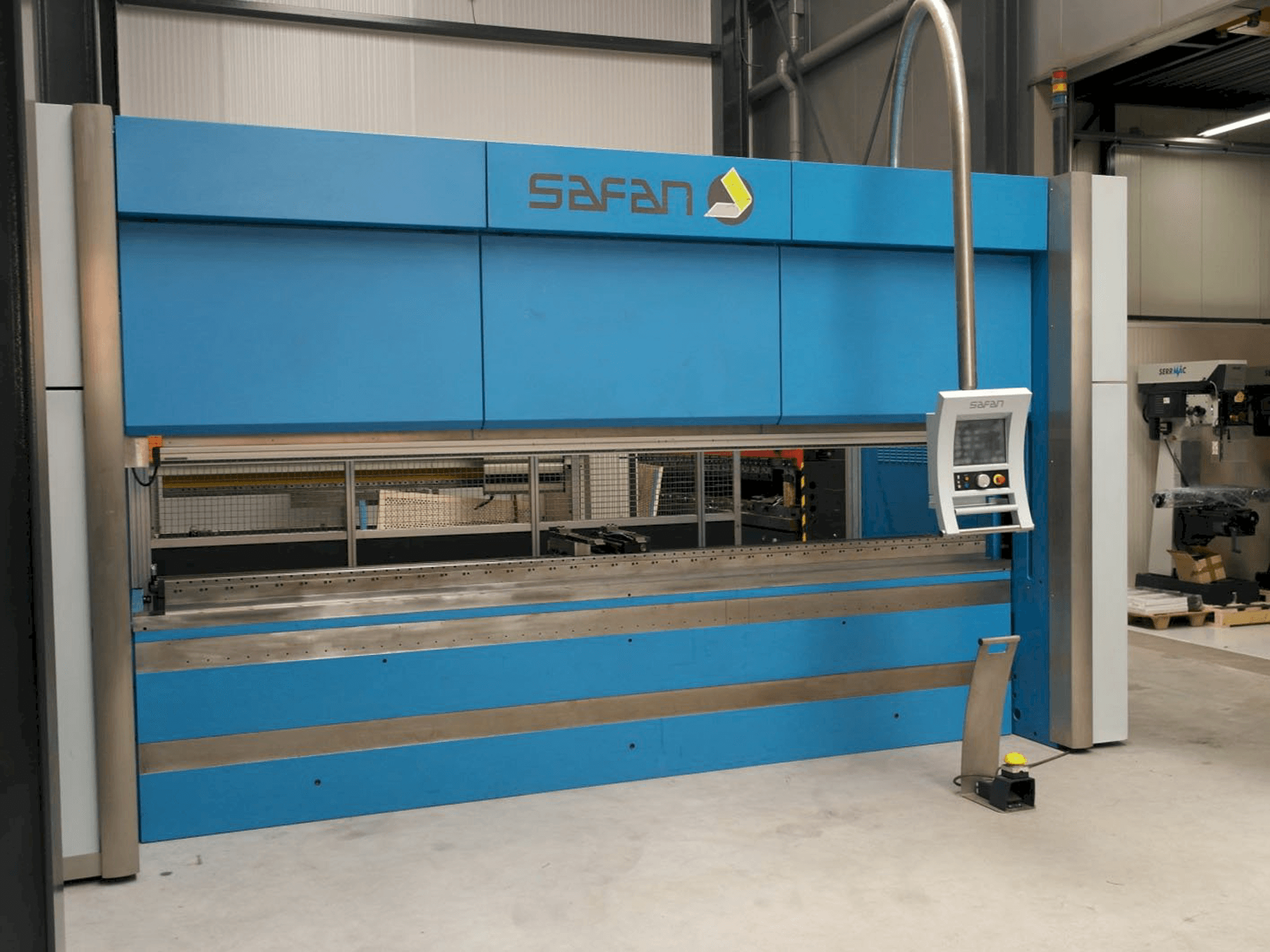

Front view of Safan E-Brake 200-4100 TS 1 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SAFAN E-Brake 200-4100 TS 1

Photo Gallery

SAFAN - E-Brake 200-4100 TS 1NL-BEN-SAF-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Safan E-Brake 200-4100 TS 1 Bending Machine

Show in original language

This Safan E-Brake 200-4100 TS 1 Bending Machine was made in The Netherlands in 2007 and has a working record of 8500 production hours. Equipped with Safan Control unit, this machine provides a bending force of 2000 kN. It stands out due to its perfect conditions, as it has been mantained by DW & Safan itself. It counts with a movable plate holding supports, an upper hydraulic clamping and a Willa equilidur tooling among many other qualities.

Overview

brand: SAFAN
year: 2007
MODEL: E-Brake 200-4100 TS 1
production hours: 8500
application type: Bending
Location: Netherlands
machine type: Press Brake

Technical Information - SAFAN E-Brake 200-4100 TS 1

General Data

Measurements width: 5100 mm
Measurements depth: 2200 mm
Measurements height: 3800 mm
Machine weight: 16800 kg

Control Unit

CNC main language: Dutch
CNC language customizable: Yes

Main drive

Pressing force: 2000 kN
Bending length: 4100 mm

Max Material thickness

Steel: 10 mm
Stainless steel: 10 mm
Aluminum: 10 mm

Media

Main electronic connection: 400 V
Power consumption: 15 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
