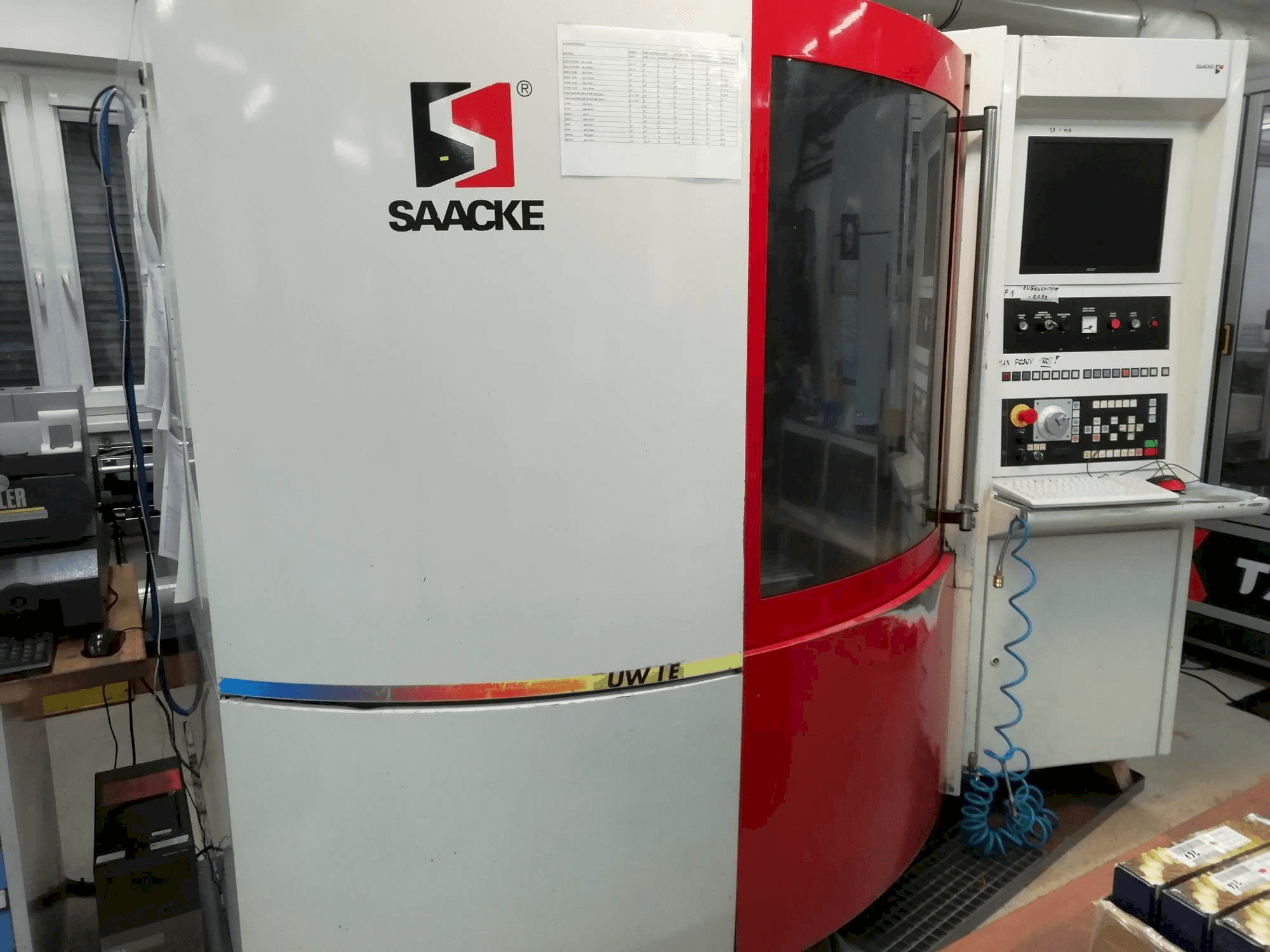

Front view of SAACKE UWIE 208485 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SAACKE UW1E

Photo Gallery

SAACKE - UW1ECZ-GRI-SAA-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
SAACKE UW1E Grinding Machine

Show in original language

This SAACKE UW1E Grinding Machine was made in 2002 in Germany. This machine incorporates a spindle speed range between 2000 - 10000 rpm, includes a grinding spindle power of 7 kW and a clamping on both sides HSK-C50. Completely retrofitted in 2017.

Overview

brand: SAACKE
year: 2002
MODEL: UW1E
production hours: 0
application type: Grinding
Location: Czech Republic
machine type: Cylindrical Grinding Machine

Technical Information - SAACKE UW1E

General Data

Machine weight: 3900 kg

Main drive

Spindle speed range: 2000 - 10000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 340 mm
Y-AXIS Movement: 240 mm
Z-AXIS Movement: 840 mm

Tools

Max tool diameter: 250 mm
Max tool length: 330 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Software – numroto version 3. 8. 2h.
- - Tip center height 152 mm
- - Rotary table 260 degrees
- - Grinding spindle power 7 kw, clamping on both sides hsk-c50
- - Workpiece holder a axis - iso 50, max. Rpm 600
Qualitative Machine Benefits:
- - Completely retrofitted in 2017 (new spindle hsk50c, ballscrews, motor, electrical parts etc. )

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
