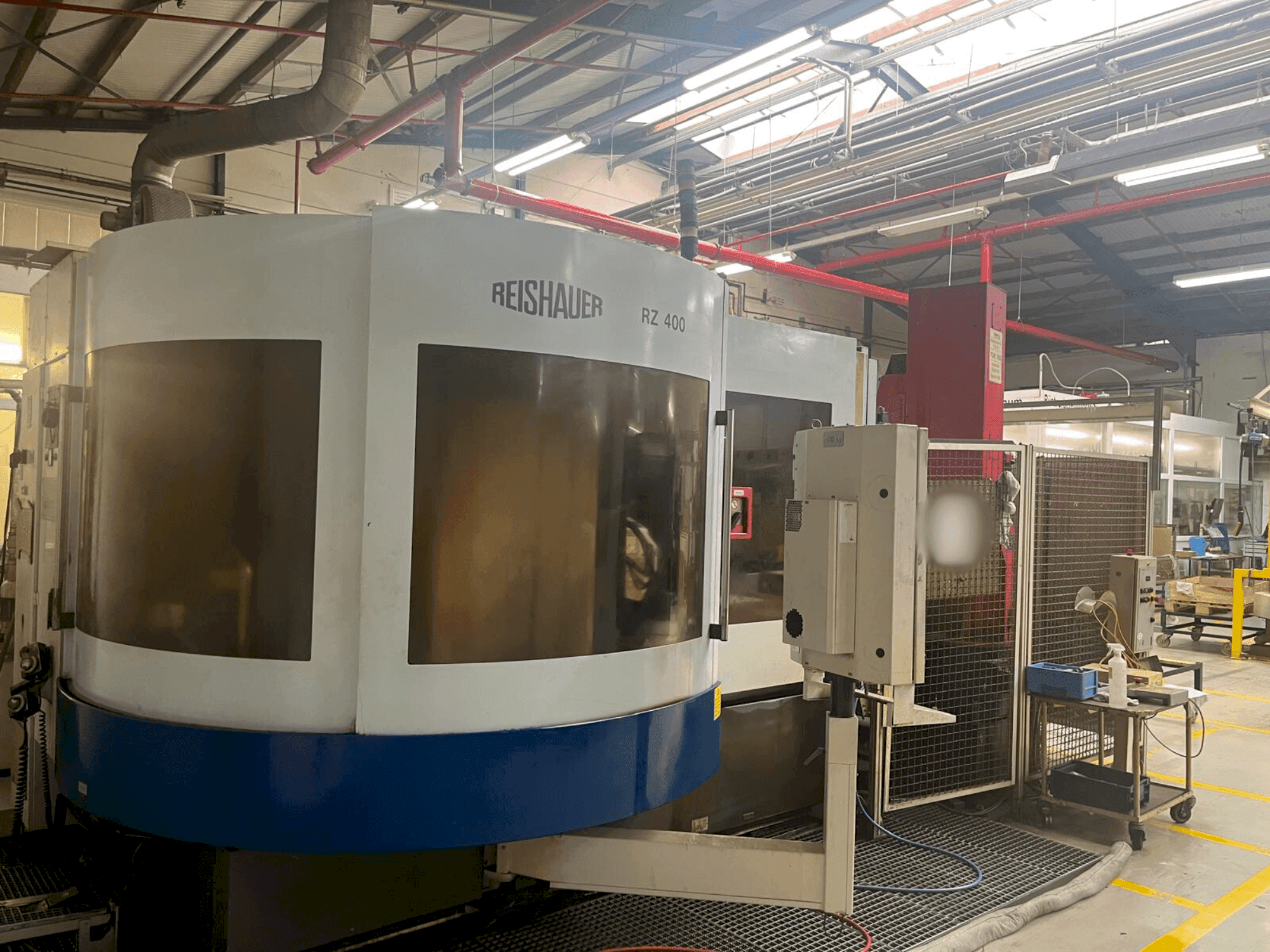

Reishauer RZ 400

Photo Gallery

Reishauer - RZ 400DE-GRI-REI-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Reishauer RZ 400 For Sale | gindumac.com

Show in original language

This Reishauer RZ 400 grinding machine was manufactured in 2005. It features a Siemens 840D control system, can handle wheel diameters up to 400 mm, and wheel widths up to 300 mm. With a maximum workpiece weight of 300 kg and spindle speeds up to 4,700 1/min, it's ideal for varied grinding tasks. Dimensions are 4.9 m x 3.7 m x 3.2 m, weighing 11.5 tons. For more information about this grinding machine, please reach out to us.

Overview

brand: Reishauer
year: 2005
MODEL: RZ 400
production hours: 25639
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine
control unit brand: SIEMENS

Technical Information - Reishauer RZ 400

General Data

Measurements width: 3700 MM
Measurements depth: 4900 MM
Measurements height: 3200 MM
Machine weight: 11500 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 0 - 4700 1/MIN
Spindle motor power: 10 KW

Additional Information

Additional equipment

Counter spindle for tailstock (W-axis)
Workpiece spindle drive (C-axis) / Motorised grinding spindle (B1) / Spindle speed infinitely variable 1100-4700 min-1
Cooling nozzle (P1 axis)
Reinforced flushing device for flushing away the grinding sludge
Grinding sludge feed (X-axis)
Shift axis (Y1) / Feed (Z1f)
Swivelling axis (A1) for automatic adjustment of the grinding worm / Swivelling axis (C1) for swivelling the tool carrier
Hydraulic equipment: free-standing unit with 3-point support control / Tank capacity approx. 30 litres
Centre 80’ MK3
Nozzle 5’; width 40mm / Nozzle 5’; width 4e 70m

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
