- Ray Feng RC32 Lathe machine
Show in original language

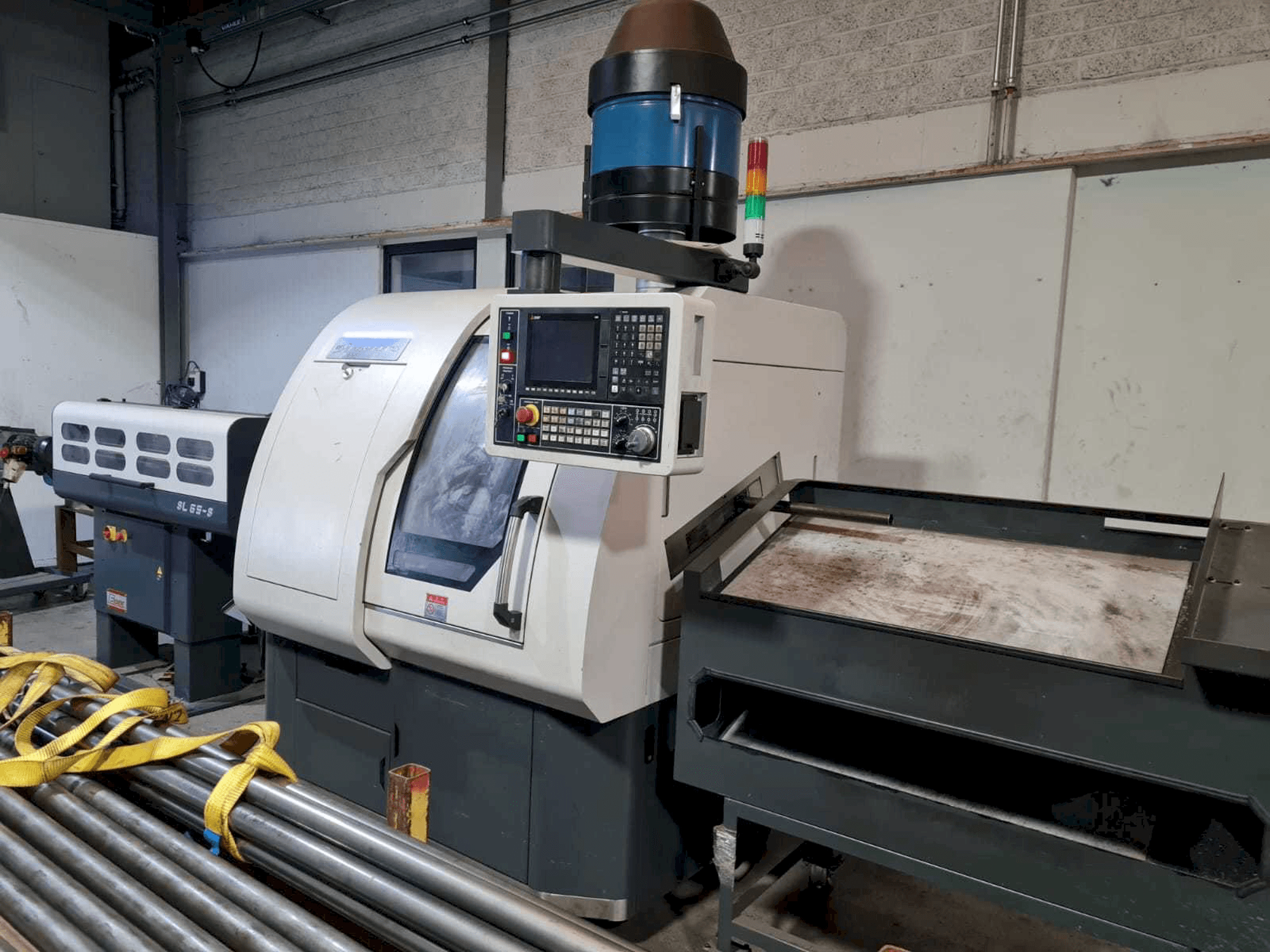

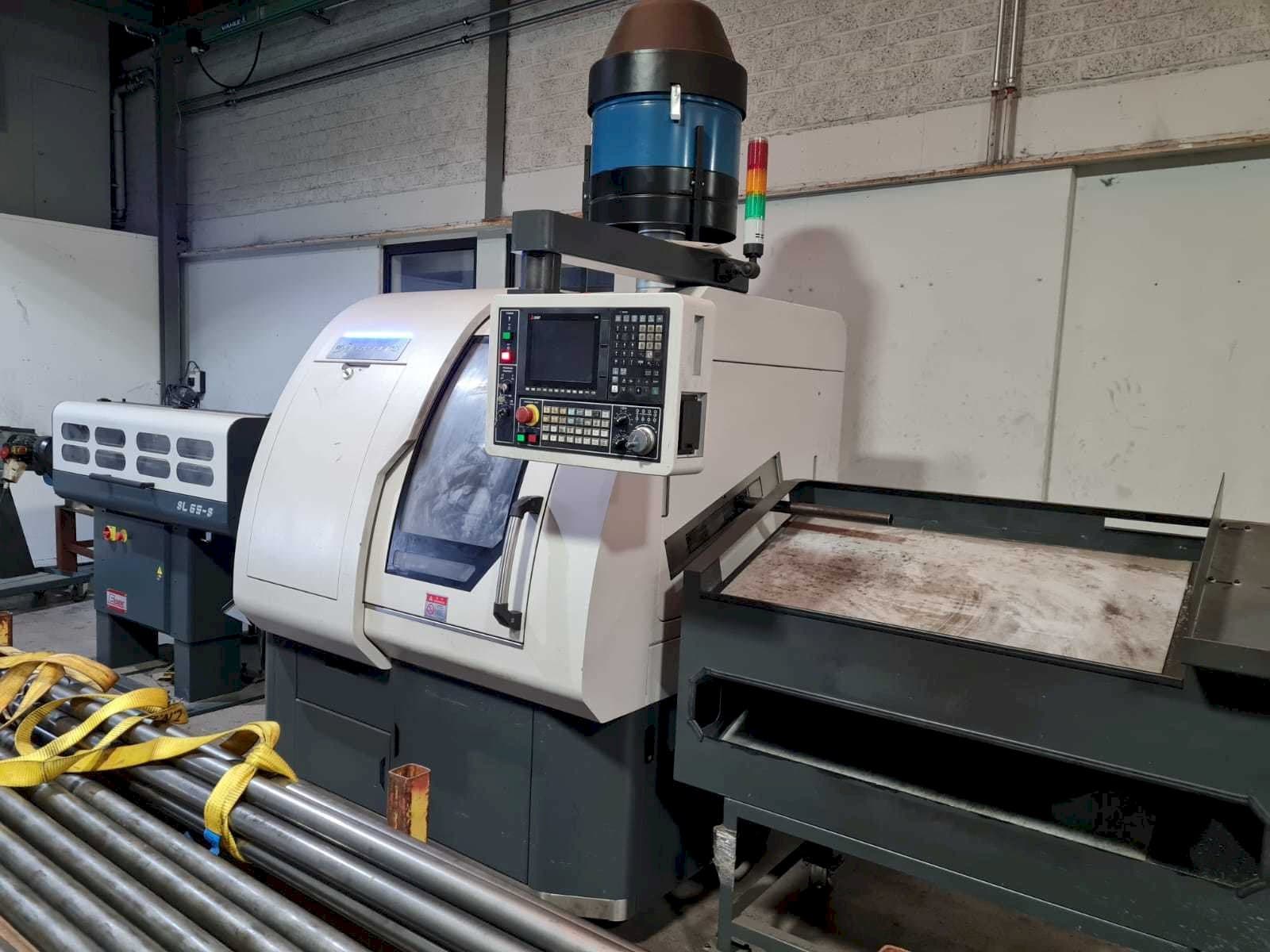

This Ray Feng RC32 Lathe machine was manufactured in the year 2018. This can work with a spindle speed range up to 6000 rpm and a spindle speed of 5 kW. Also counts with a max. turning diameter of 33 mm and a max. turning length of 100 mm. Includes accesories.
Overview
- brand: Ray Feng
- year: 2018
- MODEL: RC32
- application type: Turning
- Location: Netherlands
- machine type: Swiss Type Turning Machine
Technical Information - Ray Feng RC32
Dimensions
- Machine Depth: 1565 mm
- Machine Height: 1835 mm
- Machine Weight: 1800 kg
Technical Specification
- Spindle Power: 5 kW
- Spindle Speed: 6000 RPM
Additional Information
Additional equipment
- Collet holder (1 collet) Foot switch for collet Machine lighting
- 4 drill holders
- 2 rotary holders
- 1 stop bar
- Lubricate installation
- User manual
- Fedex LNS bar feeder type SL 65S (servo load)
- Processed Pipe Collection Device (Right of Machine)
- CE Compliance
- Transformer 10Kva
Machine Benefits
Qualitative Machine Benefits
- Workpiece collection device and mist cooling
- Outside turning tool size: 16x16mm
- Inside turning tool size: c20-er16
Technical Machine Benefits
- Max. Turning diameter: 33 mm
- Max. Turning length: 100 mm
- Max. Across the transverse: 80 mm
- X-axis displacement: 340 mm
- Z-axis displacement: 150 mm
- Rapid traverse displacement: 16 m/min
- Max. Spindle passage: 32 mm
- X/z engine: 0. 75 kw
- Smallest date to be entered: 0. 001 mm
- Cooling pump: 0. 56 hp
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
