Rasi - S 80.5PL-BEN-RAS-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- Rasi S 80.5 Pipe Bending Machine

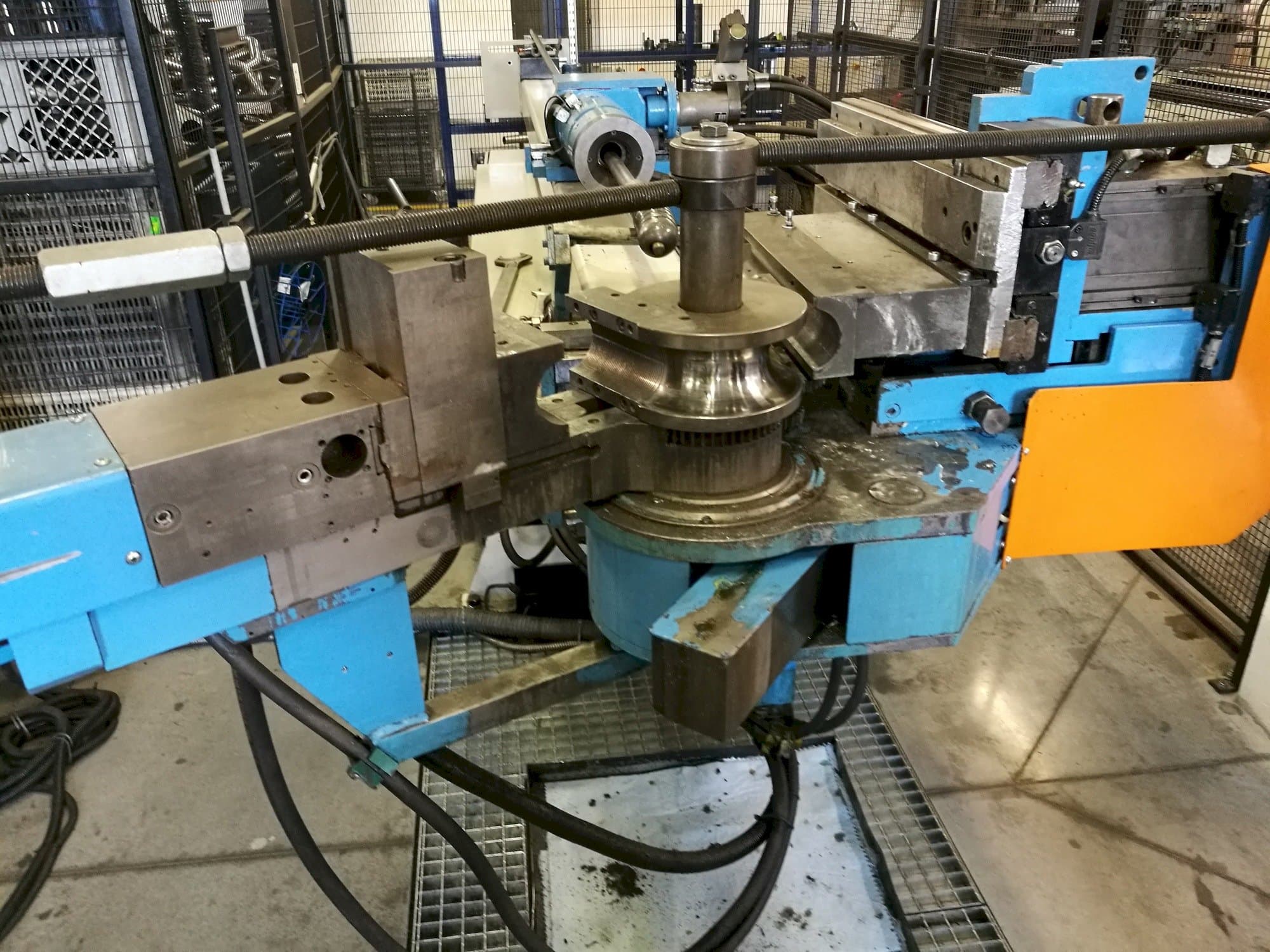

This Rasi S 80.5 Pipe Bending Machine was manufactured in 2009 in Germany. This machine operates under an intuitive machine programming and has the ability to generate bending programs from the 3D model, as well as manually. It stands out for including the possibility of adjusting the elasticity of the pipe and other parameters, facilitating the stabilization of the bending process.
Overview
- brand: Rasi
- year: 2009
- MODEL: S 80.5
- application type: Bending
- Location: Poland
- machine type: Roll Bending Machine
Technical Information - Rasi S 80.5
Dimensions
- Machine Depth: 1700 mm
- Machine Height: 1300 mm
- Machine Weight: 5000 kg
Additional Information
Machine Benefits
Technical Machine Benefits
- Vertical stroke 110mm
- Horizontal stroke 140mm
- Direction of bending right
- Max. Tube length (up to the beginning of the first bending radius) 3400. 0 mm
- 180 ° bending angle
- The feed speed is infinitely adjustable 0-60 m / min
- The speed of rotation of the head is infinitely adjustable from 0-60 rpm
- Pipe clamping force max. 8t
- Diameter x gr. : bending multi-radius (combo)
- Mandrel bending max. 80. 5 x 1. 5 mm
Extra Information
Machine History
Material type
Tubes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
