- Pinette 2500 Ton Compression Moulding Machine
Show in original language

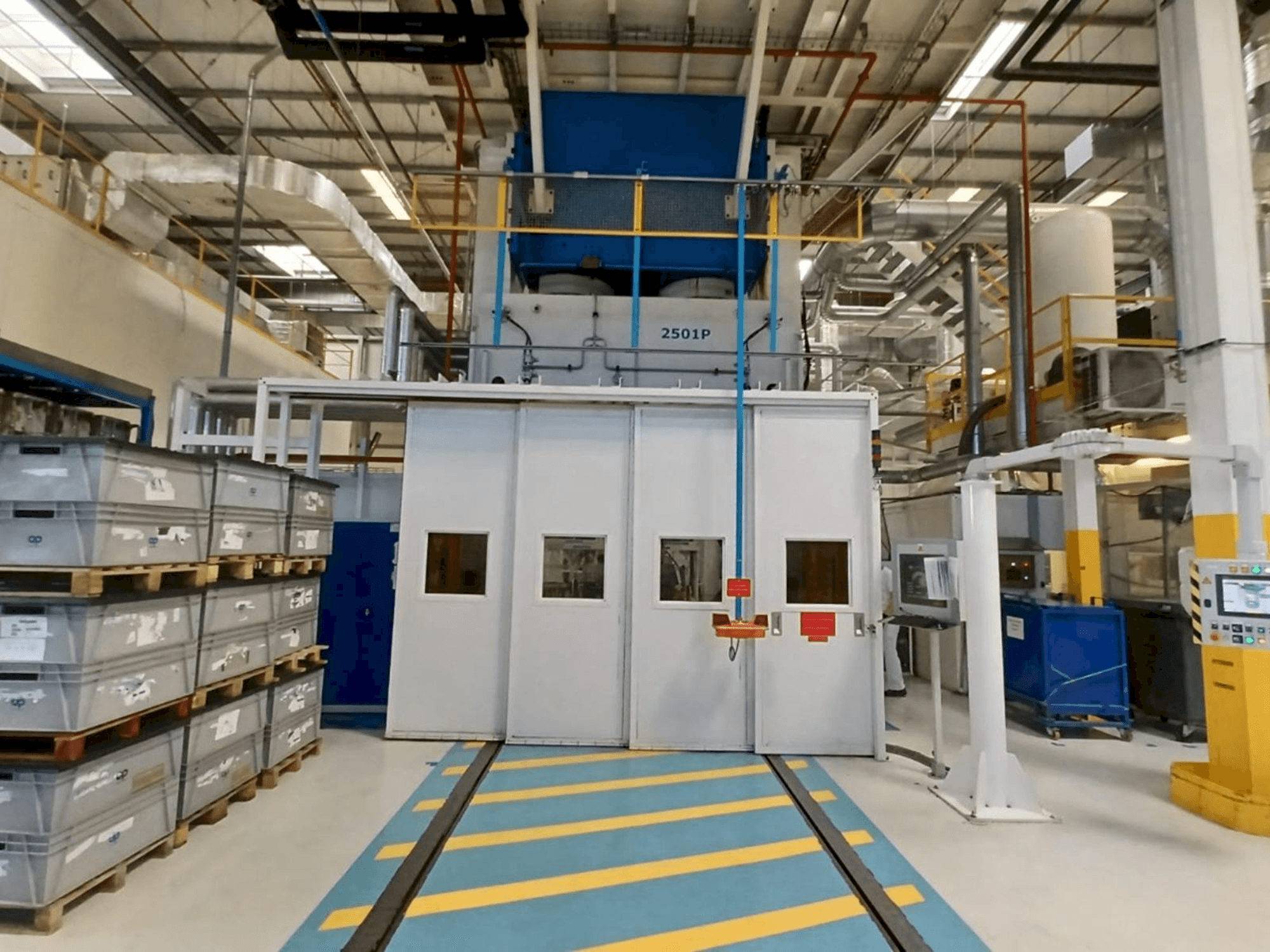

This Pinette 2500 Ton Compression Moulding Machine was built in the year 2014 in Finland. It shows 19500 working hours. The machine is capable of operating with a closing force 25000 kN, fast closing 30 m/min, and an ejection 200 bar.
Overview
- brand: Pinette
- year: 2014
- MODEL: 2500 Ton
- production hours: 19500
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Pinette 2500 Ton
Clamping unit
- Clamping force: 25000 kn
Additional Information
- Technical Machine Benefits:
- - Closing (t): 2500
- - Opening (t)brut: 107 (495cm2)
- - Opening (t) max: 400
- - Parallel reaction (t) max: 400
- - Parallel reaction (t/bar): 400
- - Stroke parallel cylinder (mm): 100
- - Diameter parallel cylinder (mm): 320
- - Pressure by parallel cylinder (bar): 155
- - Sise platen (m): 3 x 2,5
- - Weight max mold (t): 50
- Qualitative Machine Benefits:
- - Type block: sistema k160r
- - Type pomp: qt54-063r
- - Work pressiure (bar): 265
- - Power instal (kw): 190
- - Ejection hydraulic (bar): 200
- - Pressure auxiliary (bar): 200
- - Size between the column: 3
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
