Pinacho - Taurus 260DK-TUR-PIN-2000-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Pinacho Taurus 260 Lathe
Show in original language

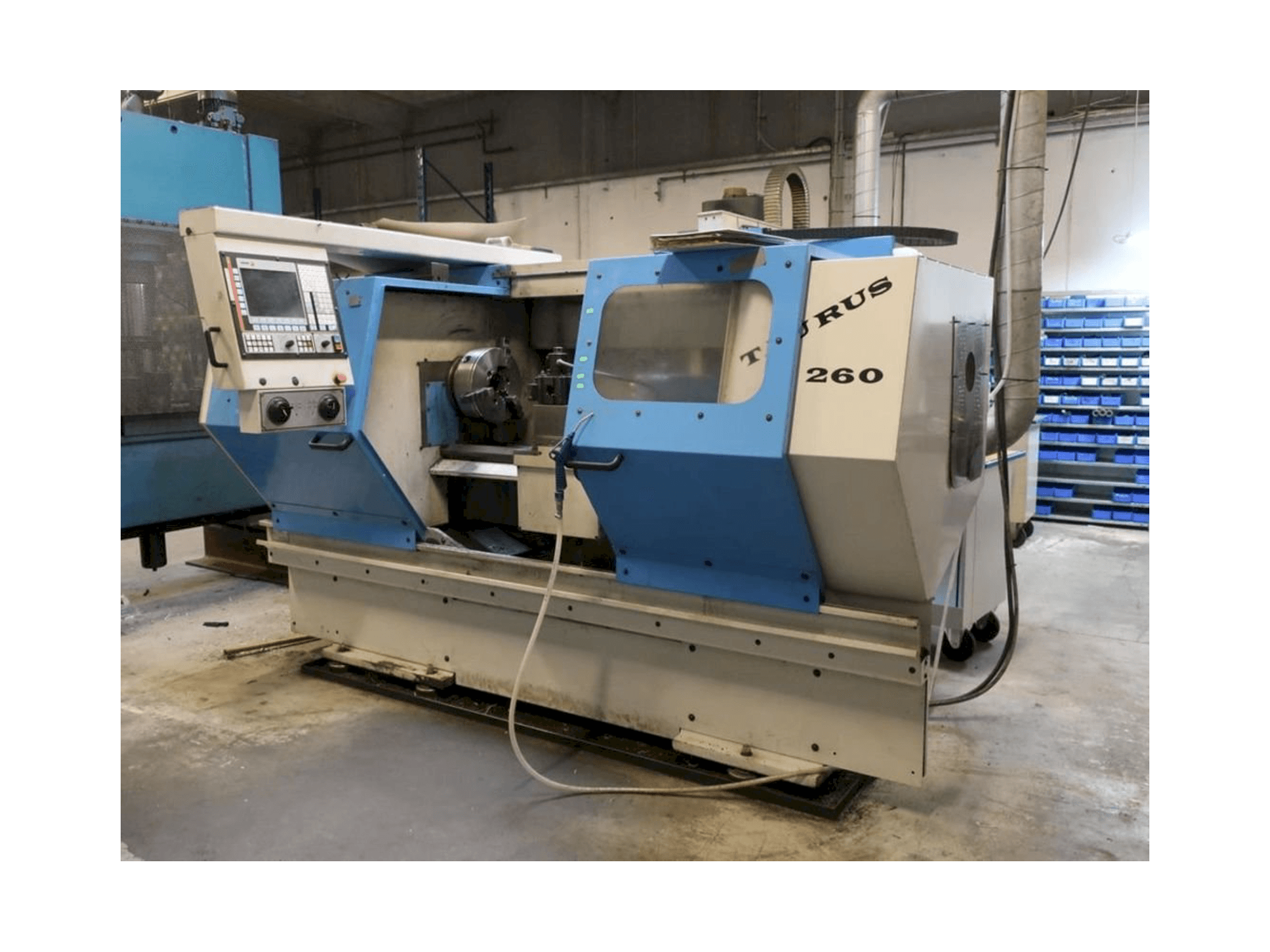

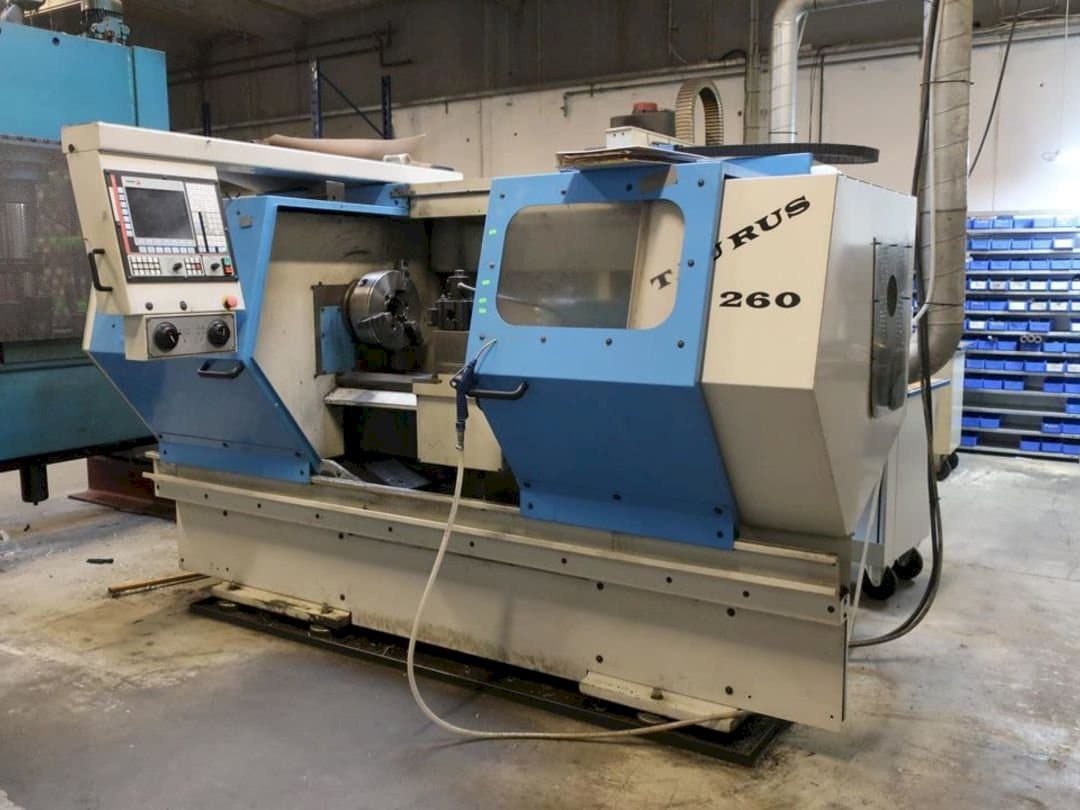

This Pinacho Taurus 260 Lathe from Spain was manufactured in 2000. The machine works with a spindle speed time up to 0-2500 rpm and a main spindle bore of 80 mm.
Overview
- brand: Pinacho
- year: 2000
- MODEL: Taurus 260
- application type: Turning
- Location: Denmark
- machine type: Horizontal Turning Machine
Technical Information - Pinacho Taurus 260
Technical Specification
- Spindle Speed: 2500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Max. Min capacity of travelling steady: 10-125 mm
- 310 mm chuck
Technical Machine Benefits
- Capacity: centre height 260 mm. Distance between centres: 1000 - 3000 mm
- Swing over bed 530mm, swing over carriage 475 mm, swing over crosslide 315 mm, bed width 350 mm
- Main spindle bore: 80 mm, main spindle taper: 2 mm. Nº speed ranges : 2 mm
- Feeds: z,x working feed : 0- 7000 mm/min
- Z,x rapid motion: 10 mm
- Tailstock shank diameter 72 mm, tailstock shank travel 180 mm, tailstock taper 5mm
- Power of z axis motor, c. A 12 nm
- Power of x axis motor, c. A 4 nm
- Max. Min capacity of fixed steady: 10-185 mm
- Max. Min capacity of fixed steady: 10-300 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
