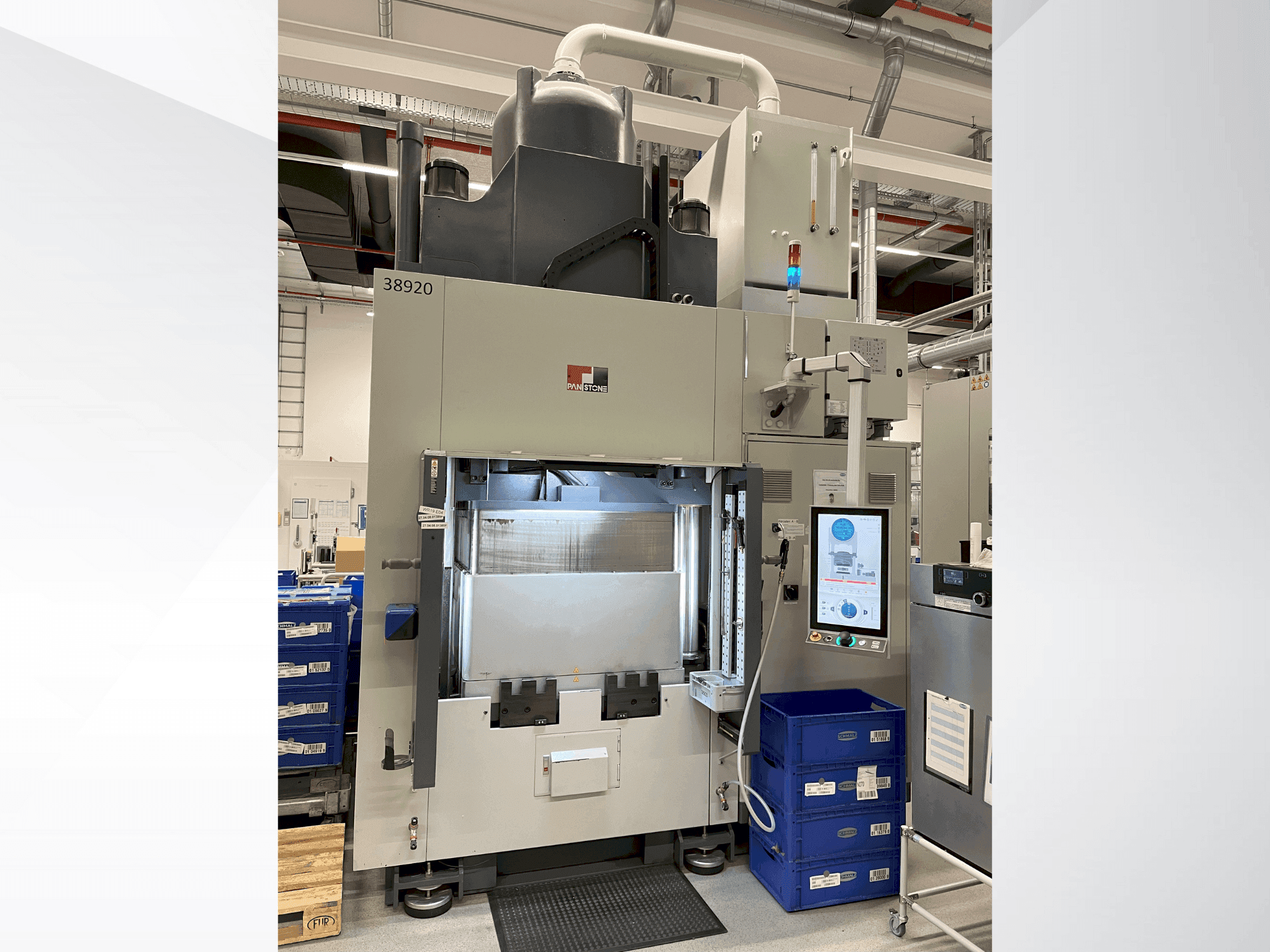

PAN Stone - D-V-200-PCDDE-OTH-PAN-2018-00001

Additional Equipment

• - 22" Touch Display with B&R Control System
• - Windows-based, User Languages: German + English, Units Switchable
• - Functions can be enabled as needed
• - Free process configuration possible
• - Operator Intervention
• - Venting/Degassing Function
• - Weekly Timer
• - Magnetic Clamping System from Römheld
• - Integrated Heavy-Duty Rollers
• - Vacuum Chamber: -900 mbar, Max. 400 mm Stroke

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Design: upper piston press
  • - Working height: 950 mm
  • - Clamping plates (lxw): 800 x 800 mm
  • - Centering pin: Ø10 mm, 50 mm vertically behind the plate center
  • - Minimum installation height: 54 mm
  • - Maximum installation height: 400 mm
  • - Upper clamping plate: swivels up to 60°
  • - Initially used exclusively for sampling
  • - In series production in two-shift operation since 2020
  • - Condition appropriate for its age and well-maintained

Extra information

• - Demolding Maximum Opening Stroke: 800 mm Upper Lifting Unit: Controlled / Max. Stroke: 300 mm Lower Lifting Unit: Controlled / Max. Stroke: 300 mm Clear Width Between Lifting Units: 570 mm Central Ejector: Controlled / Max. Stroke: 100 mm Central Ejector Diameter: 45 mm Additional Equipment Evacuation with BUSCH Pump Seal Positioned Away from Heating Plates Upper Clamping Plate Swivels up to 60° Oil Preheating Function Interior Lighting 4x Compressed Air Connections Side-Mounted Power Strip, Controllable via Weekly Timer Heavy-Duty Rollers for Easier Machine Setup Profiled Pressing Possible (Transfer Press Functionality)
