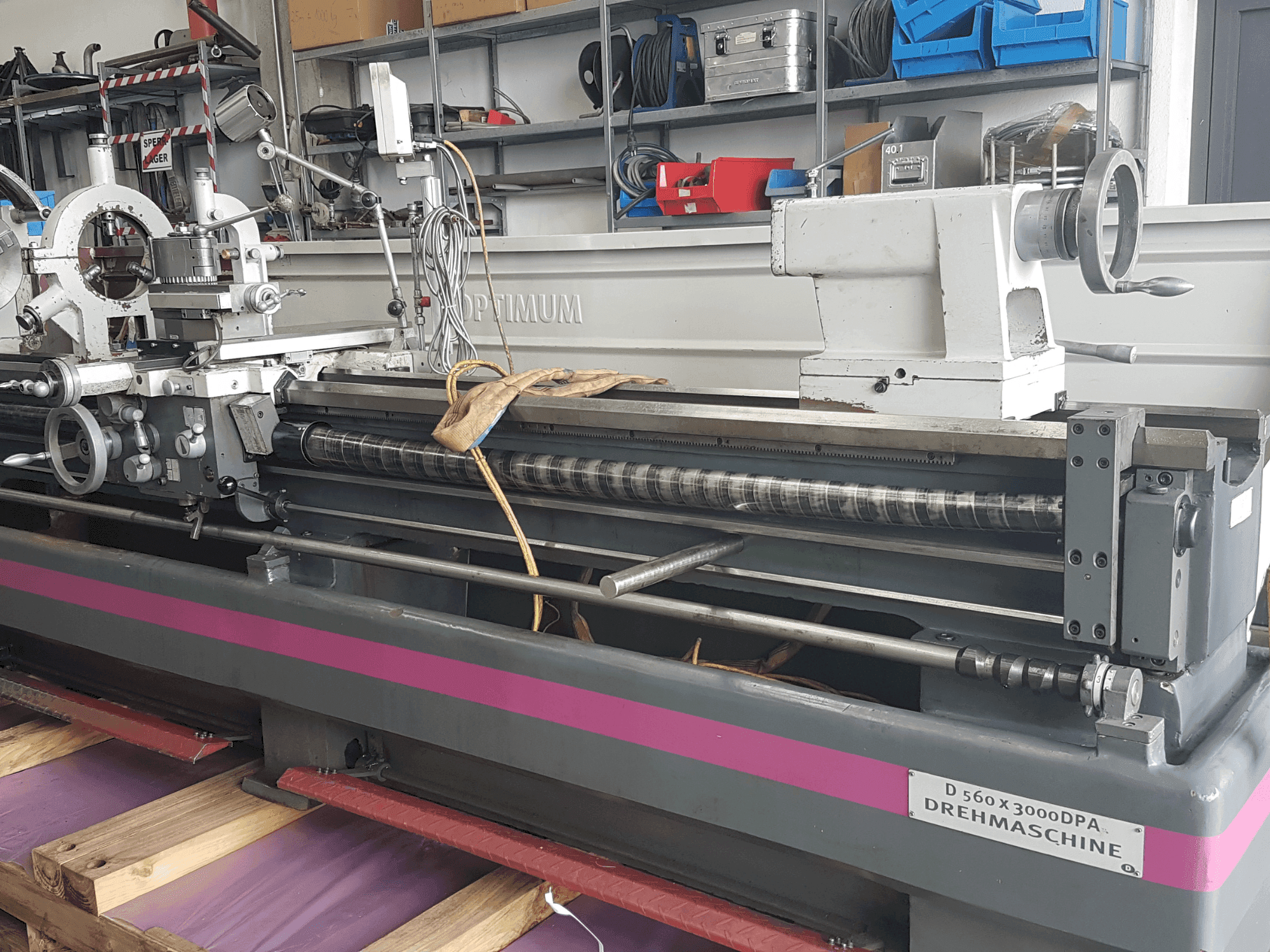

Optimum - D 560x3000DE-TUR-OPT-2011-00001

Additional Equipment

• - Lead Screw Thread Pitch: 6mm
• - Longitudinal Feed [mm/rev] in the Range: 0.059 - 1.646
• - Cross Feed [mm/rev] in the Range: 0.020 - 0.573
• - Metric Pitch [mm/rev] in the Range: 0.2 - 14
• - Inch Pitch [Threads/Inch] in the Range: 112 - 2
• - Modular Threads in the Range: 0.1 - 7
• - Diametrical Threads (ISO 678) in the Range: 4 - 112

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Top slide adjustment range: +/- 90
  • - Top slide travel (mm): 130
  • - Cross slide travel (mm): 326
  • - Center height (mm): 280 // center width (mm): 3010 // bed width (mm): 350
  • - Swing diameter in bed bridge (mm): 788
  • - Passage of stationary steady rest (mm): 19-165
  • - Passage of follower steady rest (mm): 16-95
  • - Special stationary steady rest (not included) (mm): 140-270
  • - Turning length in bed bridge (mm): 200
  • - Spindle mount: camlock asa d 1-8

Extra information

• - Tail Stock Tailstock - Transverse Adjustment (mm): +-13 Tools Maximum Tool Holder Size for Turning Tools in Quadruple Tool Holder (mm): 25x25 Media Total Connected Load: 3 x 400V / 8 kW ~ 50 Hz Spindle Motor Drive Power: 3 x 400V / 7.5 kW ~ 50 Hz Coolant Pump: 3 x 400V / 0.1 kW ~ 50 Hz Machine Lighting: 0.1 kW Control Voltage: 24 V / 160 VA
