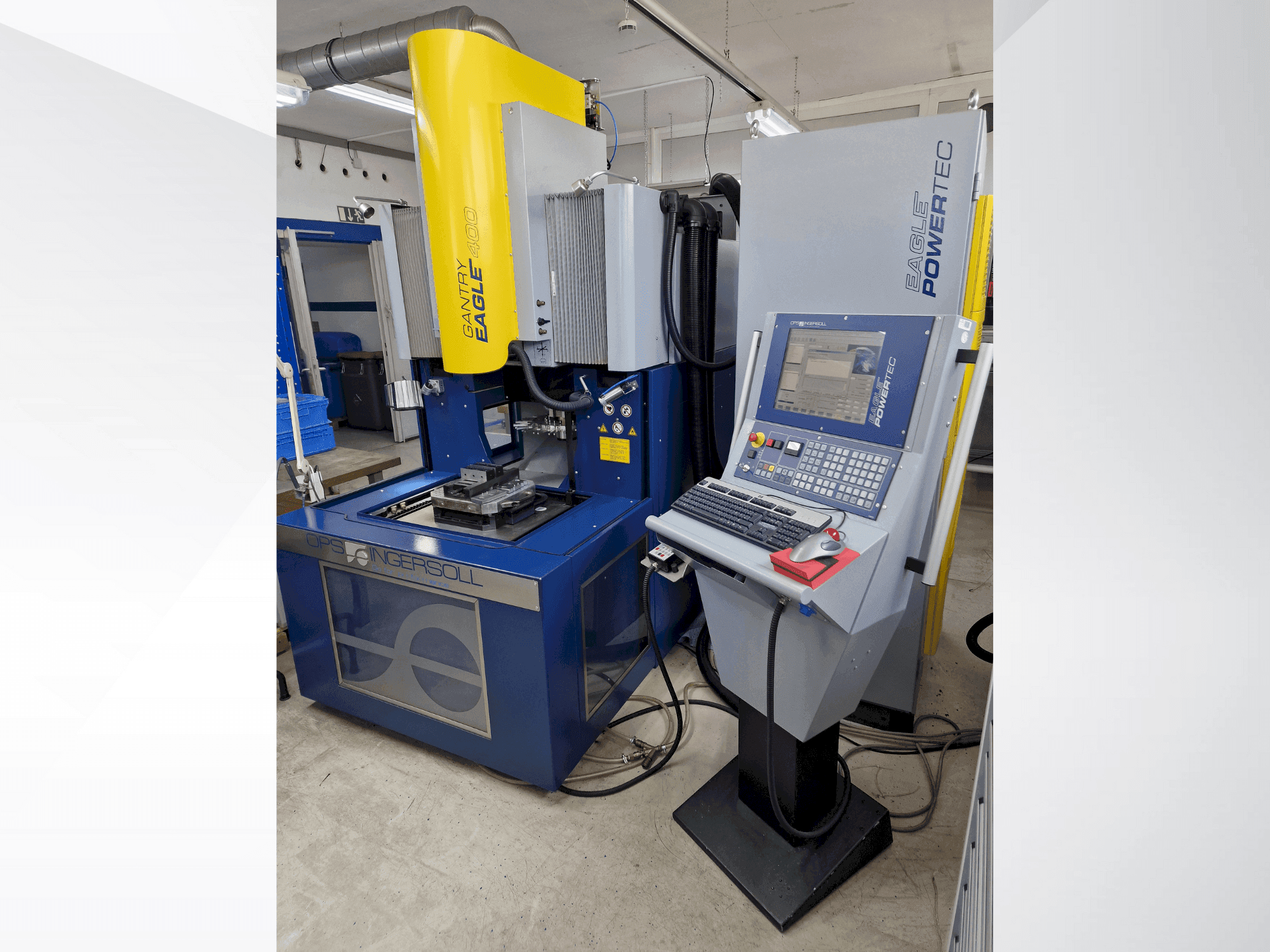

OPS INGERSOLL - Eagle 400DE-EDM-OPS-2007-00001

Additional Equipment

• - Load Capacity for Automatic Electrode Change: 15 kg

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Fuse protection: 32
  • - Distance electrode-clamping chuck to worktable min/max: 110/510 mm
  • - Dielectric fluid level max: 300 mm
  • - Surface (lxw): 550 x 470 mm / load capacity: 500 kg
  • - Travel ways (x/y/z inside the work tank): 420 x 300 x 400 mm
  • - Y (by electrode changing position): 580 mm/x, y, z rapid traverse max: 5000 mm/min/high speed jump z max: 18000 mm/min
  • - Angle positioning: 0. 001/clear dimensions: 650 x 500 x 340 mm/electrode weight single: 15 kg/electrode weight total: 60 kg/machining power max: 60 a (option 110 a)
