➤ Used OPS INGERSOLL 650 For Sale | gindumac.com

Show in original language

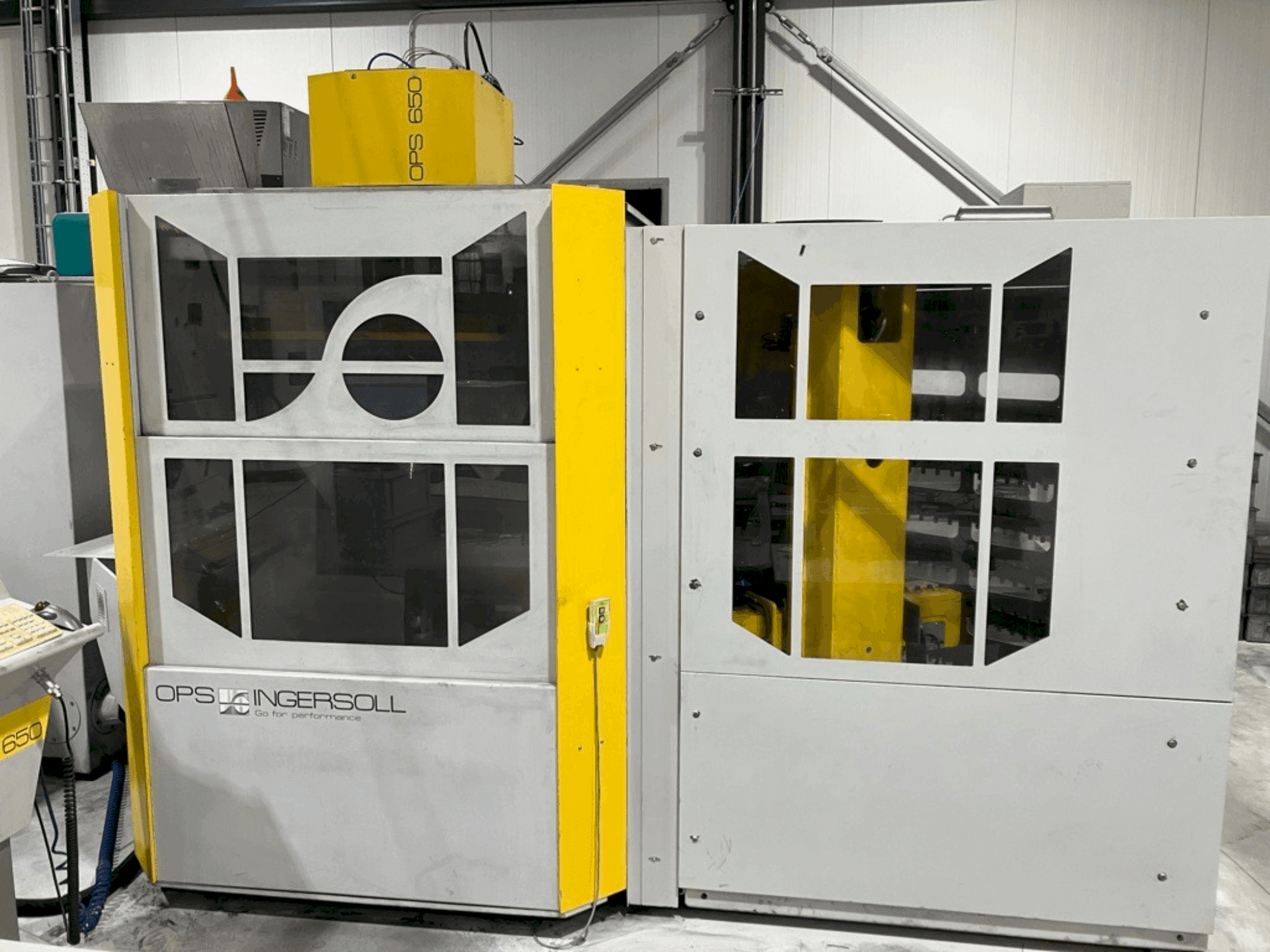

This 5-axis OPS INGERSOLL 650 was manufactured in 2004, featuring a robust vertical machining center design. It boasts a travel distance of X: 700 mm, Y: 550 mm, Z: 450 mm, and a high spindle speed up to 42,000 rpm. The machine includes a 72-tool changer and supports a load capacity of 2000 kg. If you are looking to get high-quality milling capabilities consider the OPS INGERSOLL 650 machine we have for sale. Contact us for more information.

Overview

brand: OPS INGERSOLL
year: 2004
MODEL: 650
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre

Technical Information - OPS INGERSOLL 650

General Data

Measurements width: 3200 mm
Measurements depth: 2500 mm
Measurements height: 2700 mm

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 550 MM
Z-AXIS Movement: 450 MM

Additional Equipment

- Oil Mist Extraction / Milling Spindle HSK 40 Fischer / Laser System / Infrared Measuring Probe / SW 3D Form Inspect / Handling System 84 × ITS 50 / 16 × ITS 148 / WINSTAT Connect

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Acceleration: 15 m/s² /feed rate: 30 m/min /repeat accuracy: 0. 002 mm
- - Load capacity: 2000 kg
- - Table loading size: 800 x 700 mm
- - Tool changer: number of tools: 72 tools hsk 40
- - Power: 17 kw (hsk 40)
- - Spindle speed: up to 42000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
