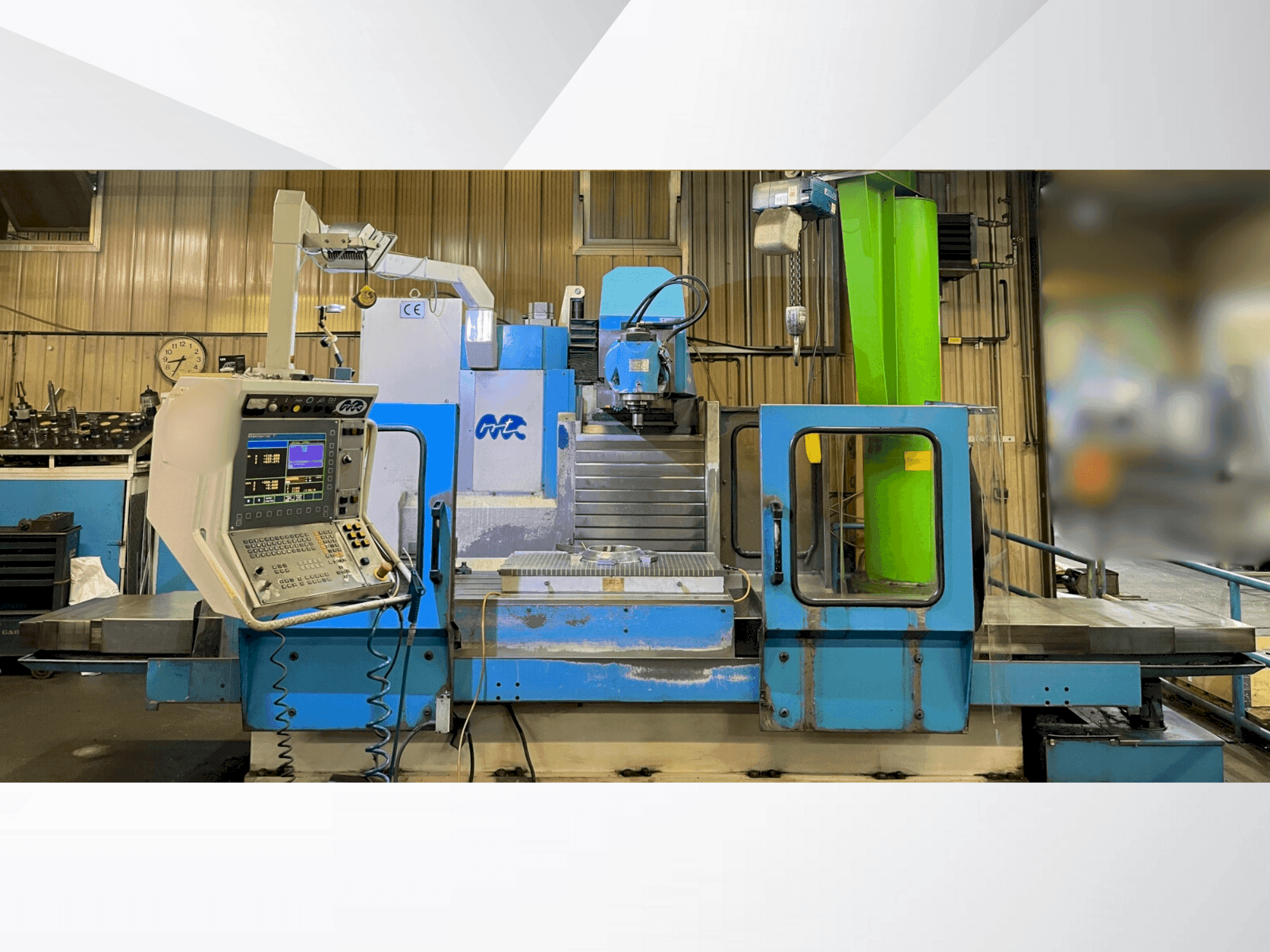

MTE - Kompakt PlusDE-MIL-MTE-1999-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Clamping surface: 2200x750
  • - T-slots number-width: 5-18
  • - Distance between t-slots: 140
  • - Hydraulic tool clamping: yes
  • - Tool clamping bar: iso 7388/2-a
  • - Spindle angle position: manual
  • - Motor power: 15 kw
  • - Infinitely variable speed: 40-2500 rpm
  • - Milling feed rate: 0-4000
  • - Positioning feed: 10
• Qualitative Machine Benefits:
  • - Maximum feed force: (x-z) 1350 - (y) 1000
  • - Maximum feed force: (x-z) 1350 - (y) 1000
  • - Positioning accuracy (mm): < 0. 012
  • - Repeatability (mm): < 0. 007
  • - Hydraulic unit power: 2. 2 kw pump capacity: 8 l/min operating pressure: 70 bar tank capacity: 30 l
  • - Coolant unit capacity: 0. 28 l/min pump capacity: 75 l/min tank capacity: 1202. 3 l
  • - Guideways on all three axes made of pearl cast iron (gg-25), induction-hardened (hardness 480-500 vickers) and ground. Counter-guides made of plastic designed for slow driving (anti-stick-slip). High load resistance up to 20 kg/cm² with good vibration absorption.
  • - High wear resistance
  • - Good vibration absorption
