- MORI SEIKI NV5000 Alpha 1A/40 Vertical Machining Center
Show in original language

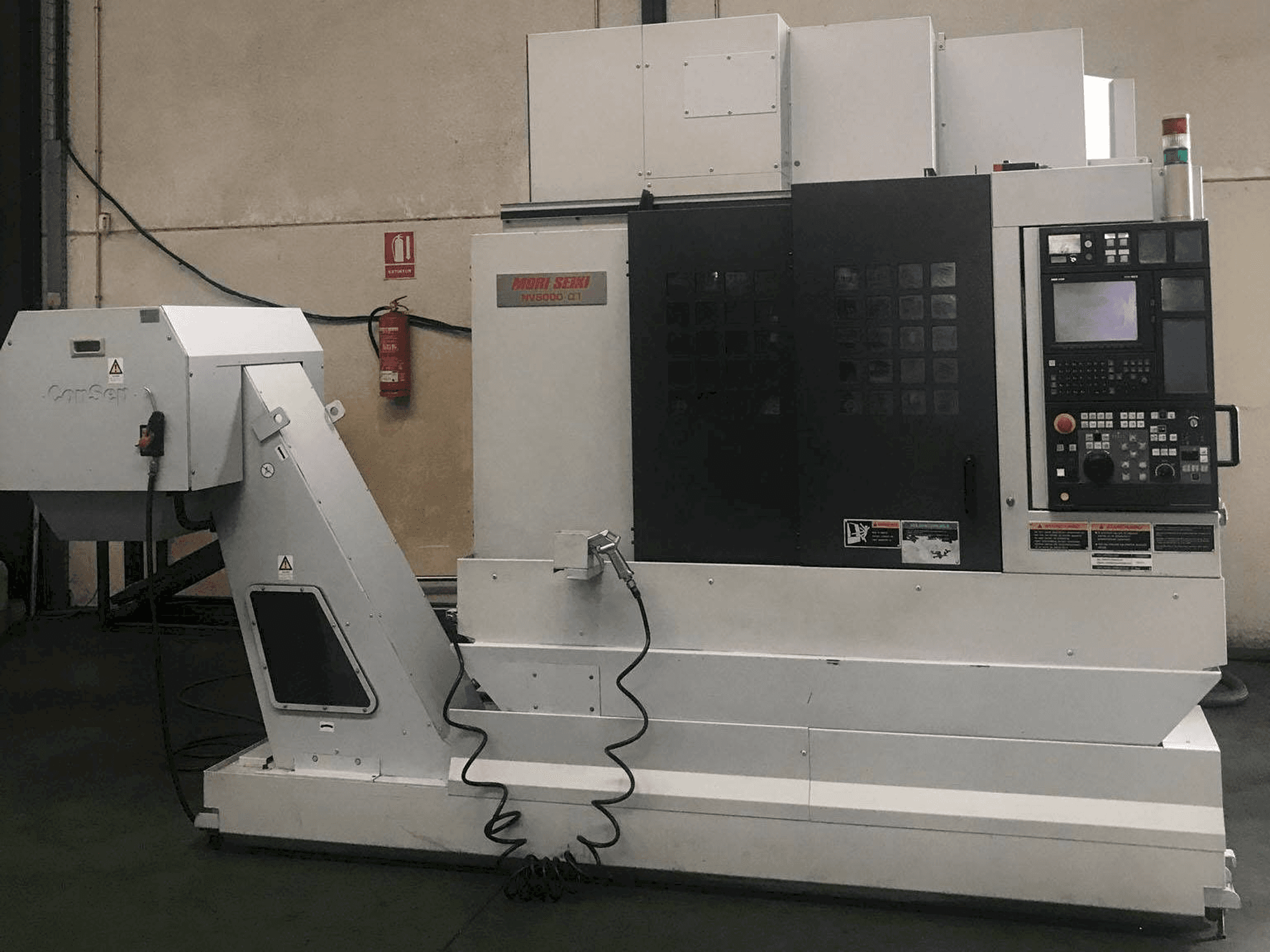

This MORI SEIKI NV5000 Alpha 1A/40 Vertical Machining Center was manufactured in Japan in 2009. It is equipped with a Mori Seiki MSX-501III Control unit. It is capable of working with a spindle speed up to 14000 rpm.
Overview
- brand: MORI SEIKI
- year: 2009
- MODEL: NV5000 Alpha 1A/40
- production hours: 0
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
Technical Information - MORI SEIKI NV5000 Alpha 1A/40
General Data
- Measurements width: 2710 mm
- Measurements depth: 2460 mm
- Measurements height: 2650 mm
- Machine weight: 6500 kg
Control Unit
- Model: MSX-501III
Main drive
- Spindle speed range: 14000 1/MIN
Movement
- X-AXIS Movement: 800 mm
- X-AXIS Rapid traverse: 42 m/min
- Y-AXIS Movement: 510 mm
- Y-AXIS Rapid traverse: 42 m/min
- Z-AXIS Movement: 510 mm
- Z-AXIS Rapid traverse: 42 m/min
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 1100 mm
- Outer width: 600 mm
- Distance between: 660 mm
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Tool changer: 30 atc
- - Tapered spindle: bt40
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
