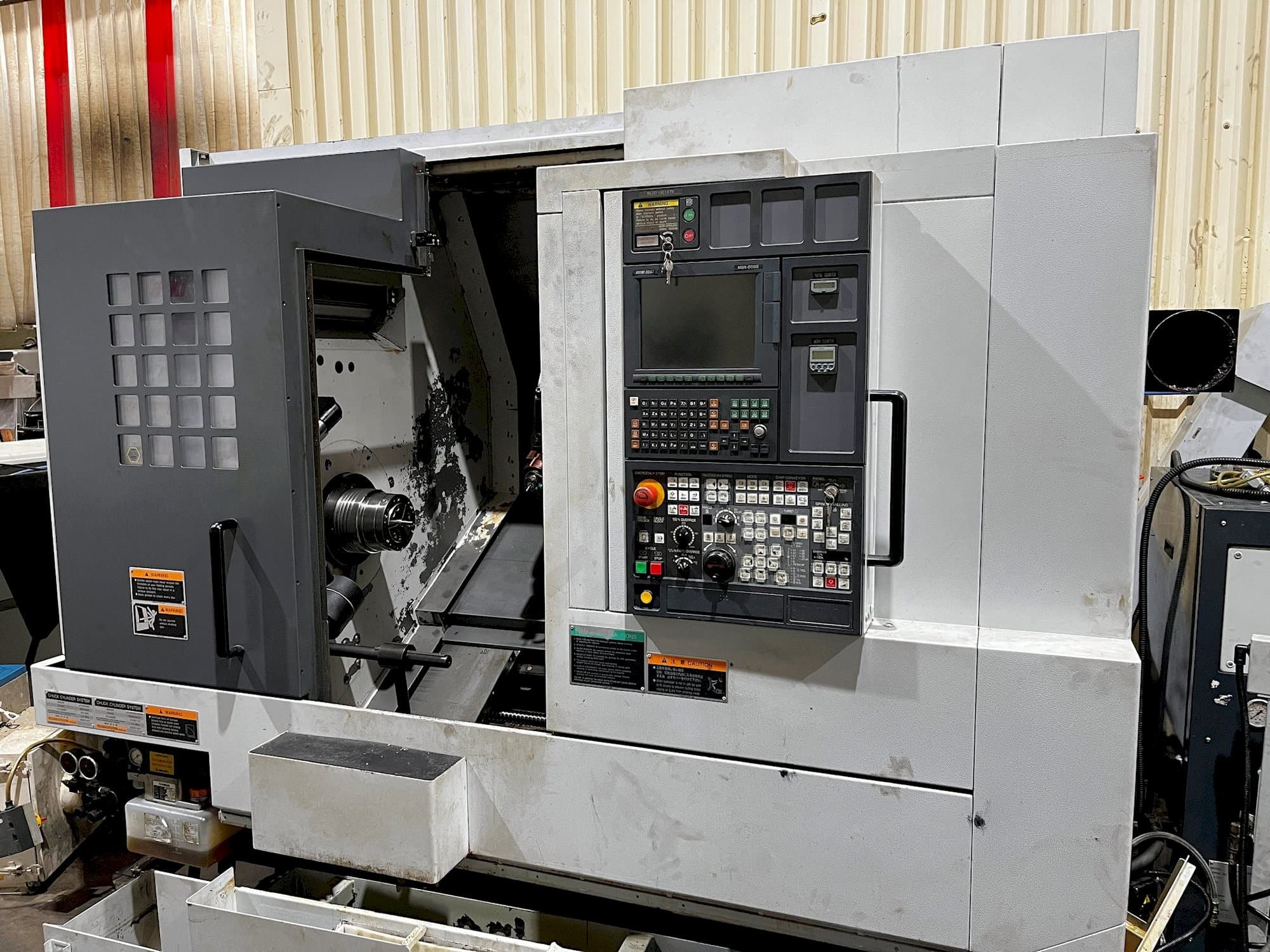

Front view of MORI SEIKI NL 2000SY/500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NL 2000SY/500

Photo Gallery

MORI SEIKI - NL 2000SY/500GB-TUR-MOR-2007-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MORI SEIKI NL 2000SY/500 Lathe machine

Show in original language

This MORI SEIKI NL 2000SY/500 Lathe machine was manufactured in the year 2007 in Japan. It operated through a MORI MSX-850 III control unit. This 4 axis machine works with a spindle speed of 5000 rpm.

Overview

brand: MORI SEIKI
year: 2007
MODEL: NL 2000SY/500
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre

Technical Information - MORI SEIKI NL 2000SY/500

General Data

Measurements width: 3688 mm
Measurements depth: 2000 mm
Measurements height: 2120 mm
Machine weight: 5800 kg

Control Unit

Model: MSX-850 III

Main drive

Number of spindles: 1
Spindle speed range: 5000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: 590 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good condition
C axis & milling, tool setter, coolant, y-axis, interlocked guards, low volt light, magazine barfeed, collet chuck, tooling, sub spindle, c axis on sub spindle
Machine manual

Technical Machine Benefits

Swing over bed 924mm, over carriage 754 mm
Maximum cutting diameter 355mm
Maximum cutting length 510mm
Bar capacity 65 mm
Distance between spindles 784mm
Main spindle motor power 15/11 kw
Milling motor power,speed 5. 5/3. 7kw, 6000rpm
Sub spindle motor, speed 11/7. 5kw, 6000rpm
C axis 0. 001 degree (both spindles)
Barfeed hydrafeed multi servo

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
