MORARA GC I/E CNC

Photo Gallery

MORARA - GC I/E CNCIT-GRI-MOR-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Grinding Machine MORARA GC I/E CNC (2004) for sale | GINDUMAC.COM

Show in original language

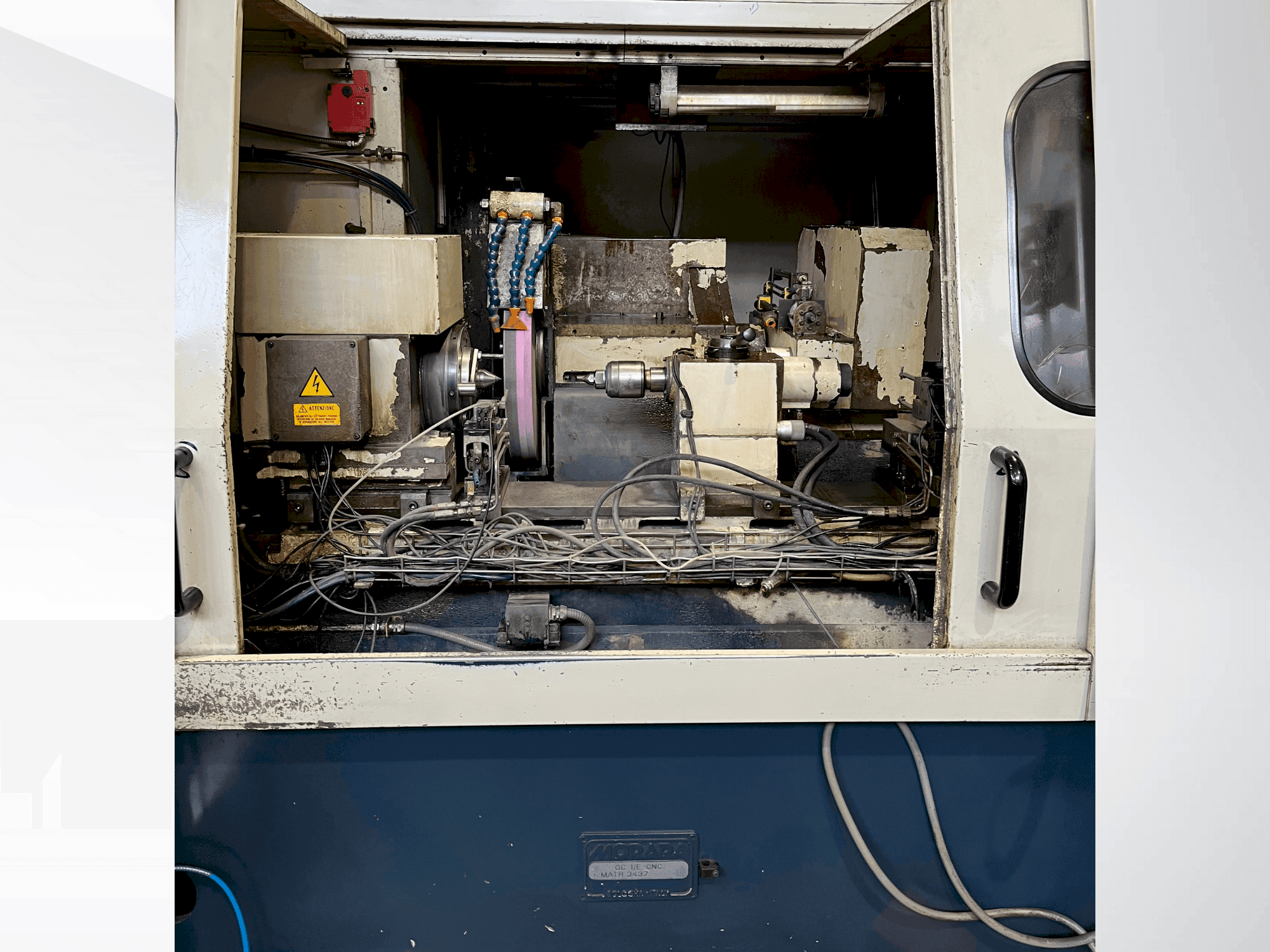

This MORARA GC I/E CNC Grinding machines machine was manufactured in 2004 in Italy. It has a distance between spindle nose and carriage of 1500mm and adjustable length of 800mm externally. Its maximum rotating diameter is 370mm. Iy is capable of handling a maximum weight of 200kg between the points and 90kg in cantilever working. It has a total installed power of 25KW and a weight of 9,000kg.

Overview

brand: MORARA
year: 2004
MODEL: GC I/E CNC
application type: Grinding
Location: Italy
machine type: Cylindrical Grinding Machine

Technical Information - MORARA GC I/E CNC

General Data

Machine weight: 9000 KG

Tools

Max tool diameter: 370 MM

Additional Equipment

- MARPOSS positioner + measuring device installed 1 year ago cost €18,500

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between spindle nose and carriage: 1500mm
- - Adjustable length (external): 800mm
- - Tips height: 230mm
- - External grinding wheel diameter x thickness x hole: 610 x 80 x 203mm
- - Hollow: 270 x 20mm
- - Total installed power: 25kw
- - X axis 320mm
- - Y axis 320mm
- - Maximum weight allowed between the points: 200kg
- - Maximum load in cantilever working: 90kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
