MORANDO - VFN13SE-TUR-MOR-1977-00001

Name: MORANDO VFN13
Brand: MORANDO
SKU: SE-TUR-MOR-1977-00001
Price: 30000 EUR
Availability: InStock

30,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORANDO VFN13 For Sale | gindumac.com

Show in original language

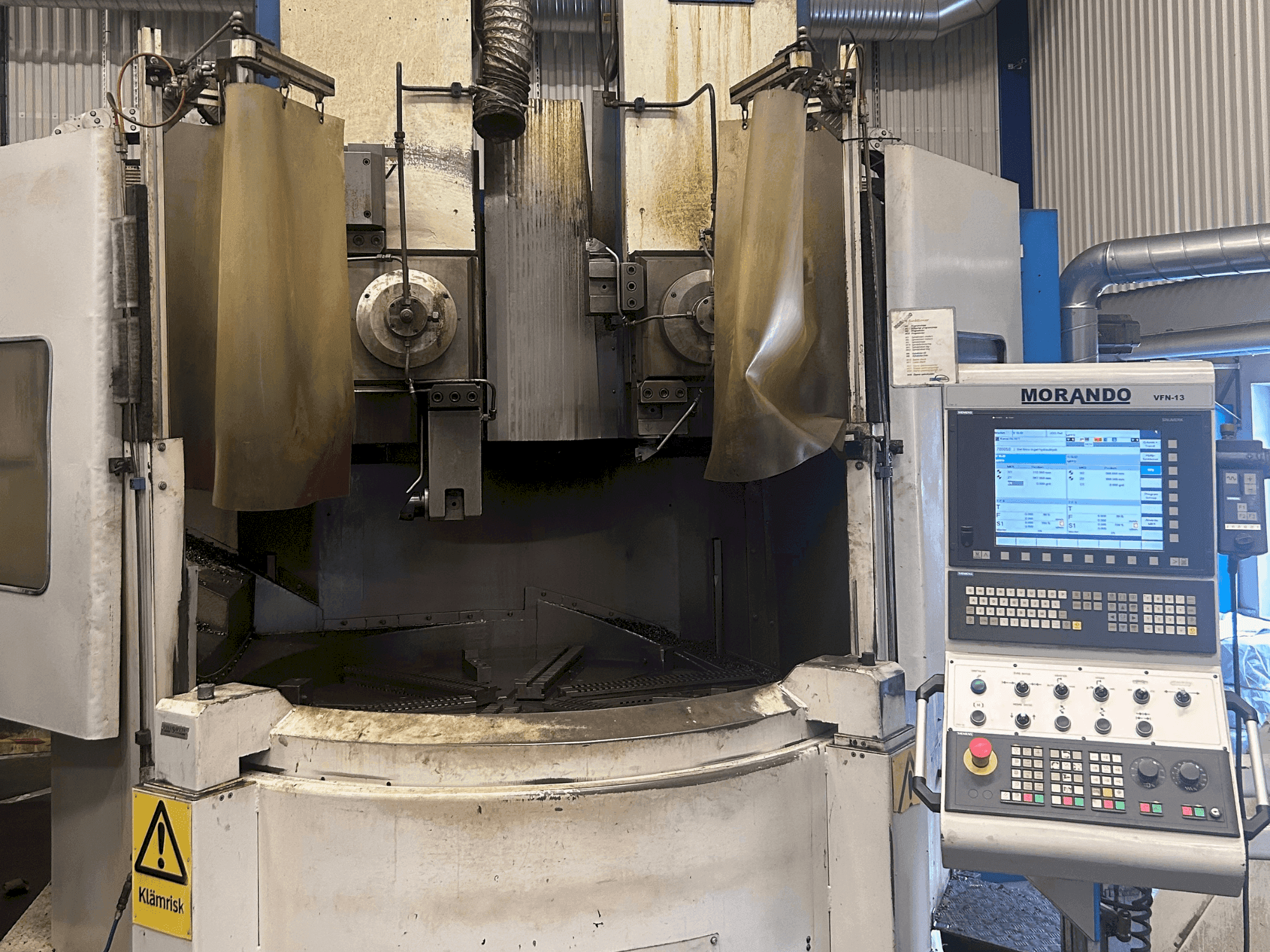

This 3-axis MORANDO VFN13 vertical turning machine was manufactured in 1977 and retrofitted in 2009 with a new Siemens 840D PL control. It features a 1600mm hydraulic chuck, dual Z-axis, and a revolver magazine. Capable of handling a maximum turning diameter of 1,500mm and a height of 800mm, it offers robust performance with a spindle motor power of 80 kW. If you are looking to get high-quality turning capabilities consider the MORANDO VFN13 machine we have for sale. Contact us for more information.

Overview

brand: MORANDO
year: 1977
MODEL: VFN13
application type: Turning
Location: Sweden
machine type: Vertical Turning Machine
control unit brand: SIEMENS

Technical Information - MORANDO VFN13

General Data

Machine weight: 25000 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D PL

Main drive

Spindle motor power: 80 kW
Number of axis: 3

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing: 1500 mm
- - Gear steps: 2 pcs
- - Max spindle speed, low gear: 75 rpm // max spindle speed, high gear: 200 rpm
- - Max torque, low gear s1: 15300 nm // max torque, high gear s1: 5100 nm
- - Horizontal movement: 1000 mm
- - Vertical movement: 875 mm
- - Rapid traverse: 5000 mm/min
- - Maximum turning diameter: 1500 mm
- - Maximum turning height over chuck: 800 mm
- - Free height under slide: 830 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
