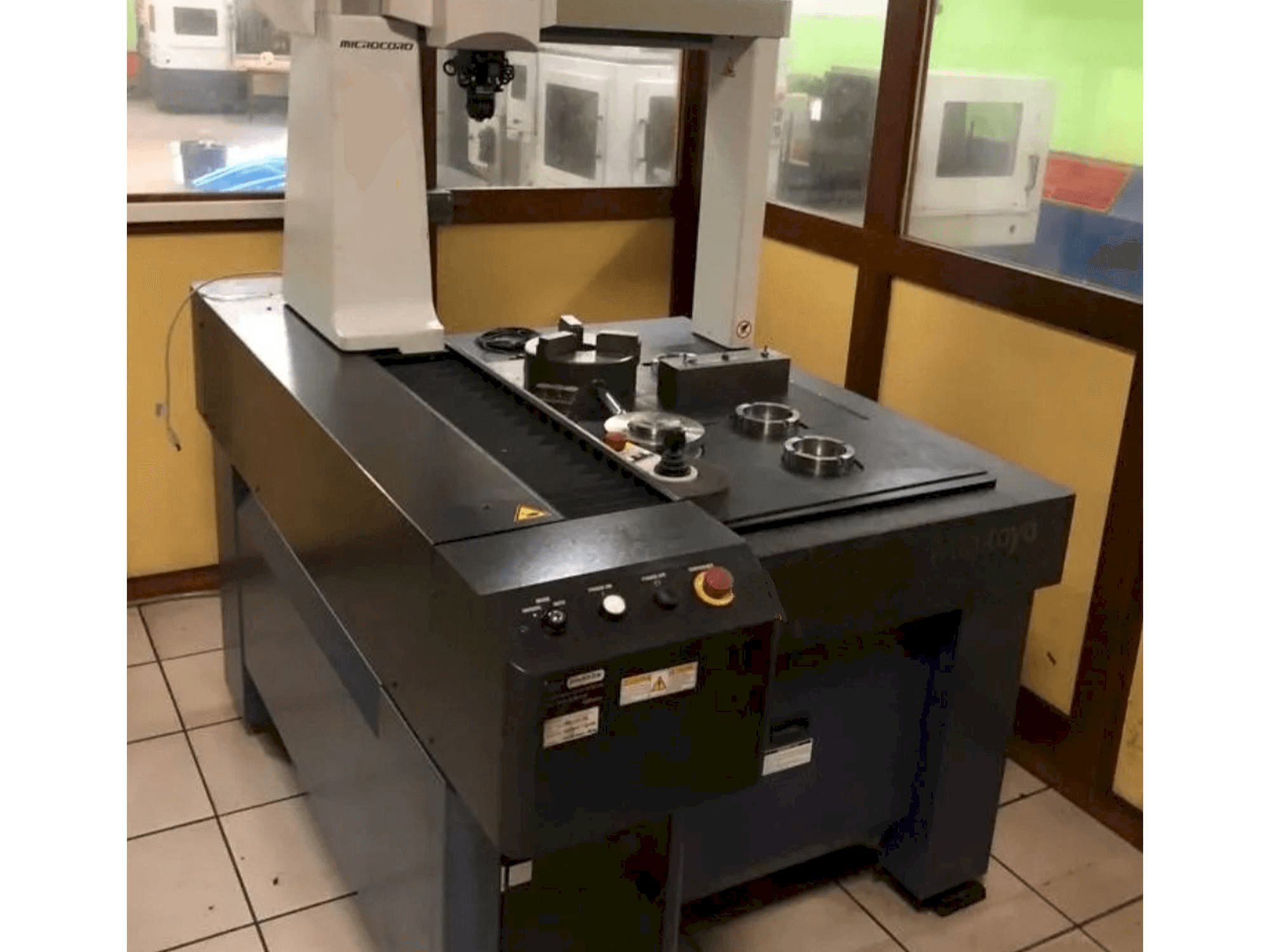

Front view of Mitutoyo CRYSTA-APEX S574 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mitutoyo CRYSTA-APEX S574

Photo Gallery

Mitutoyo - CRYSTA-APEX S574PL-MEA-MIT-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mitutoyo CRYSTA-APEX S574 measuring machine

Show in original language

This Mitutoyo CRYSTA-APEX S574 measuring machine was built in the year 2019 in Germany. It is equipped with a standalone PC with software M Cosmos 4.2 CAD 1000. The machine has a Resolution of 0.0001 mm. Includes a Renishaw MH20i probe.

Overview

brand: Mitutoyo
year: 2019
MODEL: CRYSTA-APEX S574
application type: Measuring
Location: Poland
machine type: Coordinate Measuring Machine (CMM)

Technical Information - Mitutoyo CRYSTA-APEX S574

General Data

Measurements width: 1082 mm
Measurements depth: 1191 mm
Measurements height: 2185 mm
Machine weight: 625 kg

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece weight: 180 kg

Additional Equipment

- includes a Renishaw MH20i probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Resolution 0. 0001mm
- - Guide method air bearings on each axis
- - Workpiece: maximum height: 545mm

Extra information

- This machine is equipped with software and a PC computer. Software: M Cosmos 4.2 CAD 1000

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
