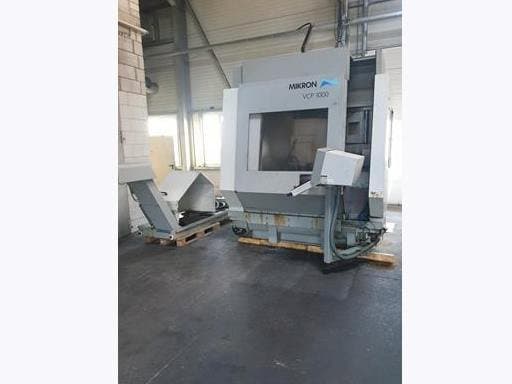

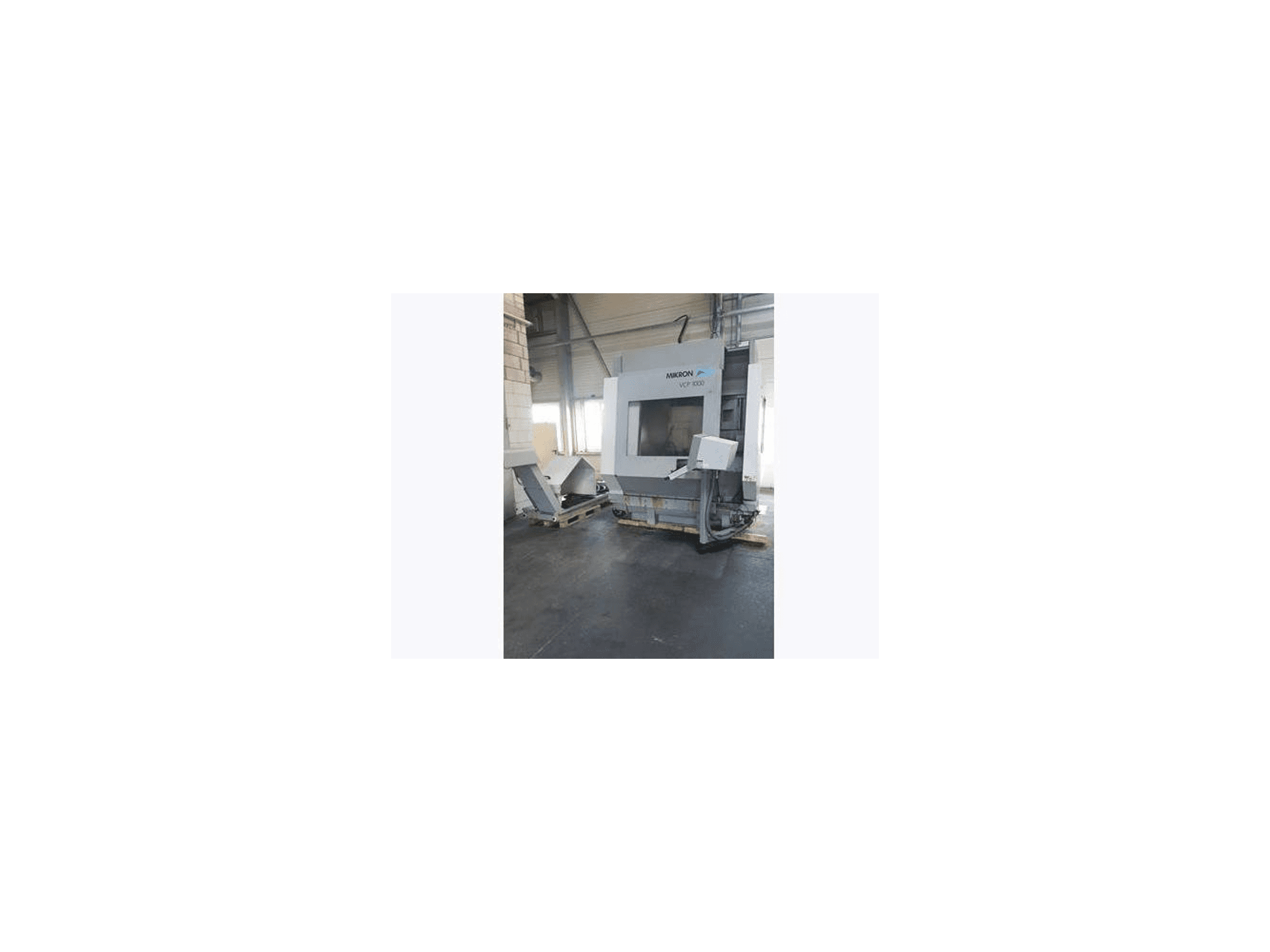

MIKRON VCP 1000

Photo Gallery

MIKRON - VCP 1000DE-MIL-MIK-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MIKRON VCP 1000 Vertical Machine Center

Show in original language

This MIKRON VCP 1000 Vertical Machine Center was manufactured in 1999. The 3 axis machine operated through a Heidenhain 426 control unit. This machine has a spindle speed up to 24000 rpm.

Overview

brand: MIKRON
year: 1999
MODEL: VCP 1000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 1000

General Data

Measurements width: 3100 mm
Measurements depth: 5220 mm
Measurements height: 2840 mm
Machine weight: 9000 kg

Control Unit

Model: 426
Brand: HEIDENHAIN

Main drive

Spindle speed range: 24000 1/MIN

Table

Outer length: 1150 mm
Outer width: 700 mm
Min distance between vertical spindle and table: 115 mm

Media

Main electronic connection: 400 Volt
Power consumption: 40 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Longitudinal travel (x axis): 1000 mm
- - Cross travel (y axis): 750 mm
- - Vertical travel (z-axis): 750 mm
- - Tool changer: 30-fold
- - Maximum tool length: 305 mm
- - Tool holder: hsk 63
- - Rapid traverse: 22 m/min
- - B7kkv0pi
- - Tool magazine 30-fold
- - Oil cooler
Qualitative Machine Benefits:
- - Handling device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
