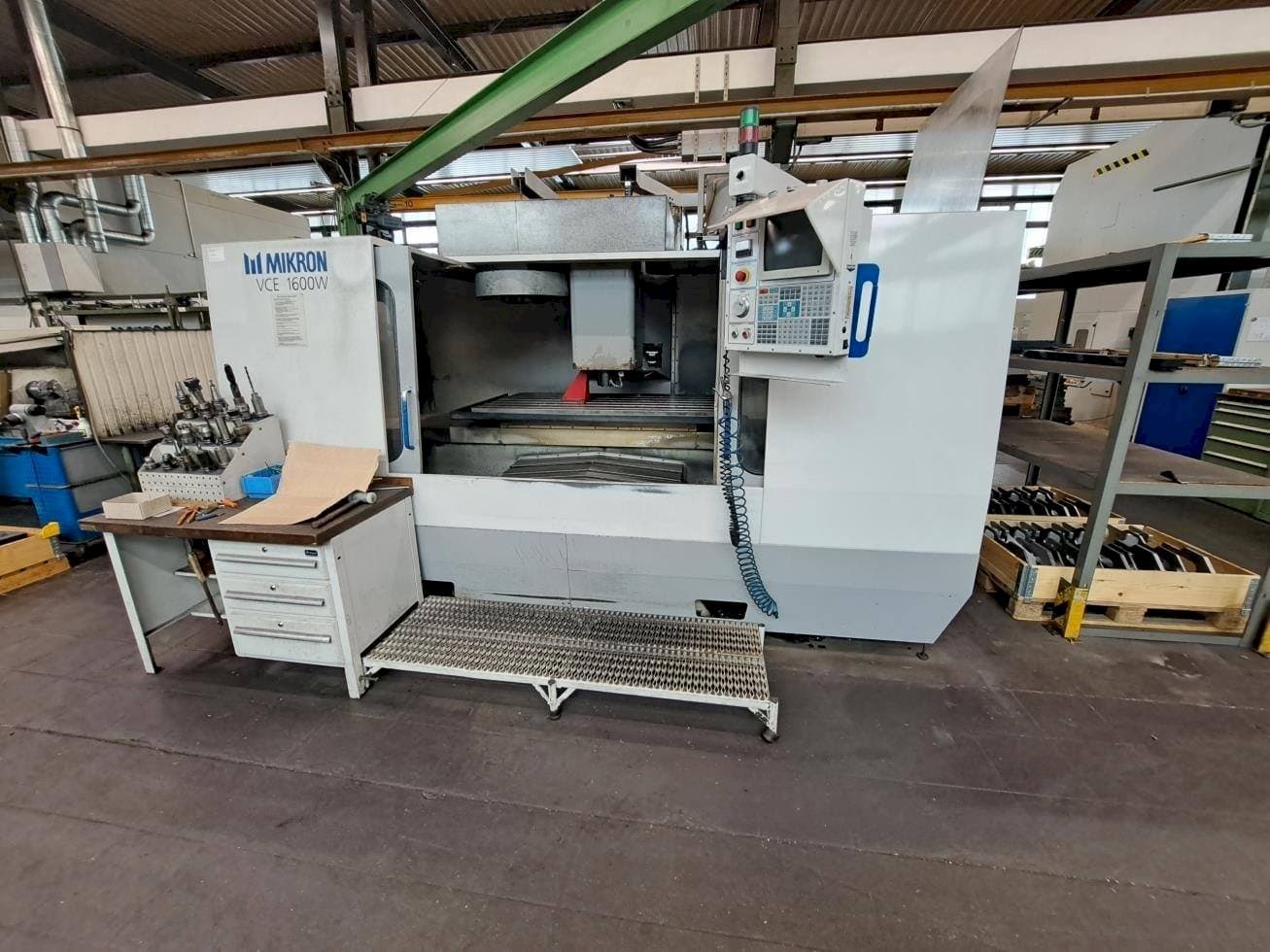

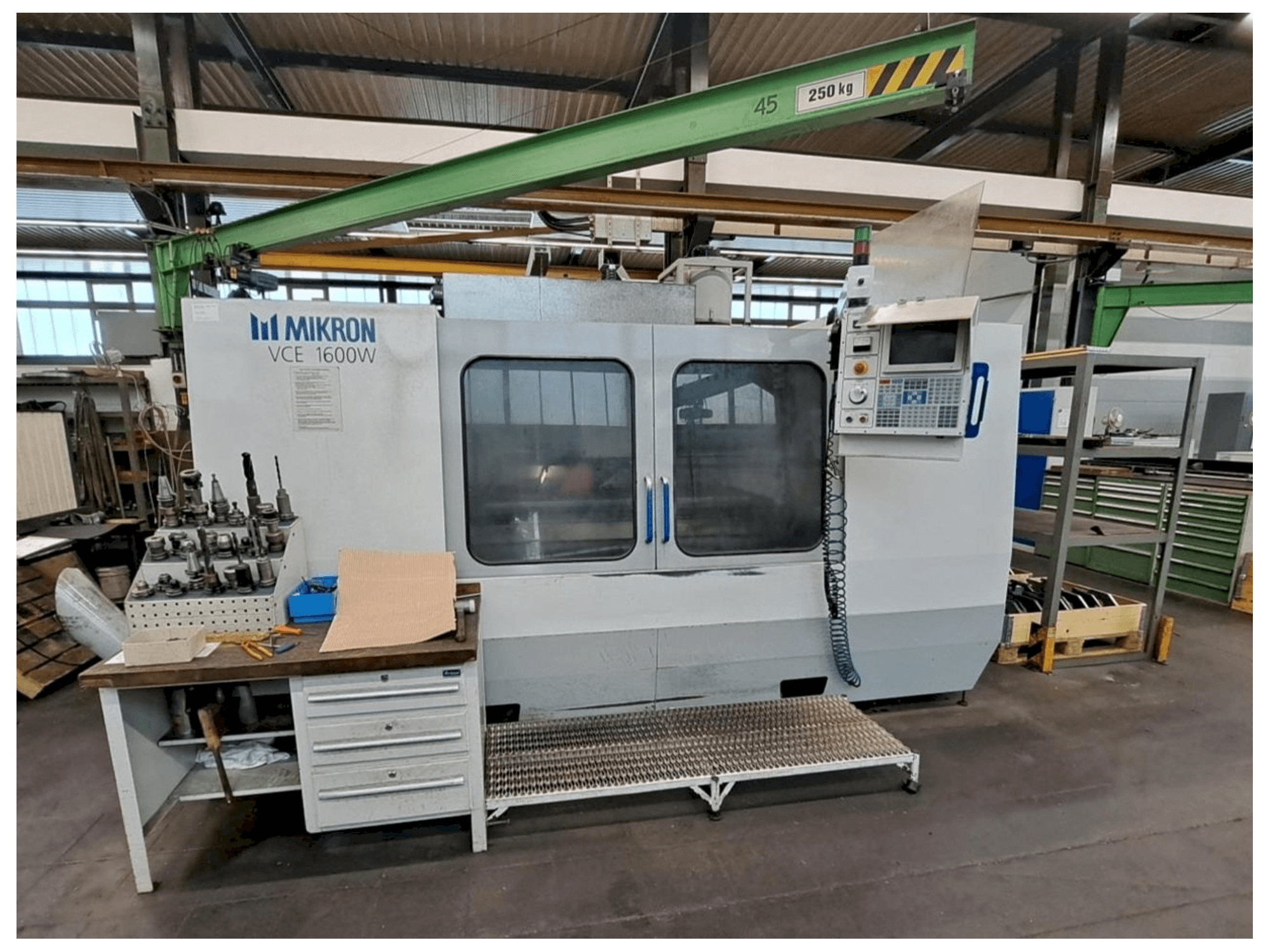

Front view of HAAS MIKRON VCE 1600W machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MIKRON VCE 1600W

Photo Gallery

MIKRON - VCE 1600WPL-MIL-HAA-1999-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MIKRON VCE 1600W Vertical Machine Center

Show in original language

This MIKRON VCE 1600W Vertical Machine Center was built in the year 1999 in the United States. It is equipped with a Haas control unit. The machine has a spindle speed of 10-7500 rpm.

Overview

brand: MIKRON
year: 1999
MODEL: VCE 1600W
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - MIKRON VCE 1600W

General Data

Measurements width: 3963 mm
Measurements depth: 3531 mm
Measurements height: 3263 mm
Machine weight: 10900 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 10-7500 1/MIN
Spindle motor power: 11 kW
Tool taper: DIN 69871/ISO40

Movement

X-AXIS Movement: 1625 mm
Y-AXIS Movement: 1016 mm
Z-AXIS Movement: 762 mm

Table

Outer length: 1625 mm
Outer width: 914 mm

Tools

Slots in storage: 20

Media

Main electronic connection: 3 x 400V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum drive power: 15 kw
- - Feed rates (x, y and z axes): 0 -7600 mm/min
- - Tool change time: 5 sec
- - Axis a: 360 degrees (hrt210 divider)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
